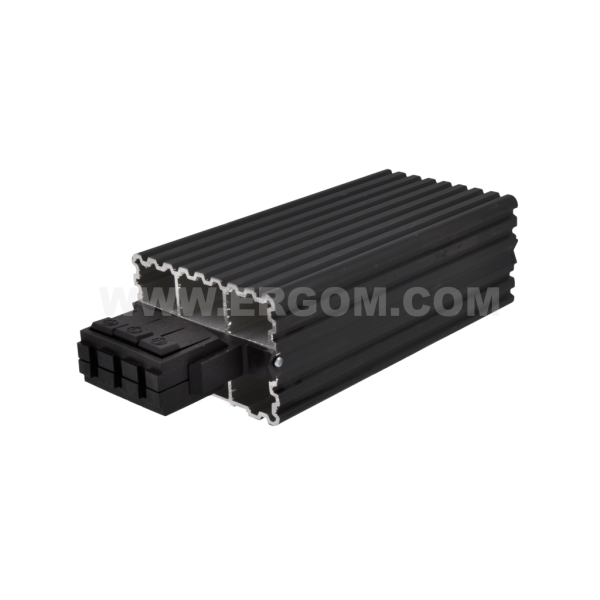

Semiconductive Heater, OP-60 type
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| LAMP WD | R37RC-03020000200 |
|
stockable Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 0,160 kg | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
| OP-60 | R37RC-03020000201 |
|
stockable Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 0,818 kg | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
OP-60 CABINET HEATER
Technical data
Certyfikaty normy
| Stopień ochrony | IP20 |
|---|---|
| Normy | We declare compatibility of our articles with requirements of the following standards: – EN60947-7-1, EN60947-1, EN60947-5-1. – EN60730-2-9:2006, EN60730-2-1:2010. and Directives: – 2006/95/WE (LVD). |
Dane mechaniczne
| Housing material | PA 6.6 |
|---|---|
| Heating element material | aluminum |
| Terminal type / cross-section [mm2] | ≤ 2.5 |
| Heating element type | PTC self-regulating resistor |
| Flammability class, as per UL 94 | V0 |
| Ambient temperature [°C] | -45÷ +70 |
| Assembly | DIN 35 rail |
Wymiary
| D | 70 |
|---|---|
| S | 60 |
| W | 184 |
Dane elektryczne
| Power [W] | 60 |
|---|---|
| Rated voltage [V AC] | 230 |
| Electrical insulation strength [kV] | 1,5 |
Guide
No data
Accessories and sets
No data
