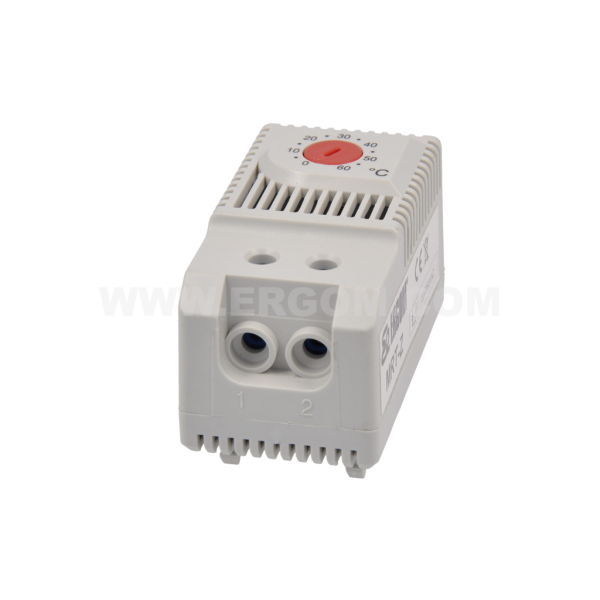

Temperature controller, MRT-Z type
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| MRT-Z R37RC-03010000201 | 1 | 1 | pcs. | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| MRT-Z | R37RC-03010000201 |
|
stockable Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 0,048 kg | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
MRT-Z TEMPERATURE CONTROLLER
Technical data
Certyfikaty normy
| Stopień ochrony | IP20 |
|---|
Dane mechaniczne
| Housing material | PA 6.6 |
|---|---|
| Contact type / cross-section [mm2] | NO / ≤2,5 |
| Sensor type | thermal bimetal |
| Flammability class, as per UL 94 | V0 |
| Temperature control range [°C] | 0÷60 |
| Connection temperature difference (tolerance) [K] | 7 (±4) |
| Ambient temperature [°C] | -20 ÷ +80 |
| Dimension (H x W x D) [mm] | 60 x 33 x 43 |
Wymiary
| D | 60 |
|---|---|
| S | 33 |
| W | 43 |
Dane elektryczne
| Current-carrying capacity [A] AC / nominal voltage [V] AC | 5 / 250 |
|---|---|
| Electrical insulation strength [kV] | 1,5 |
Guide
No data
Accessories and sets
No data
