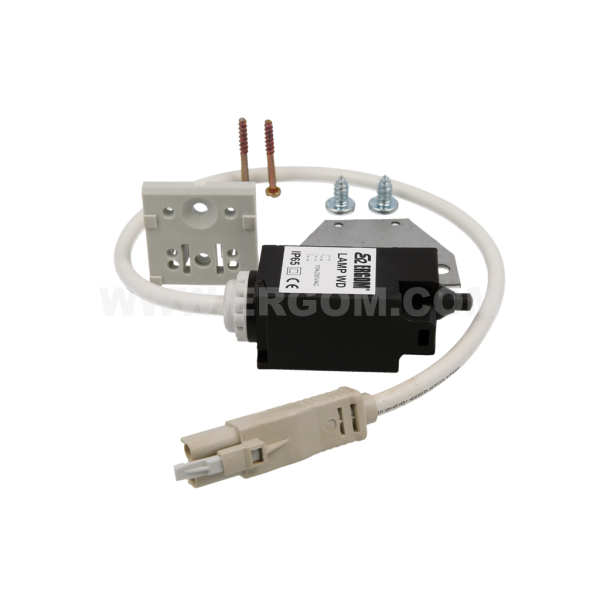

Door switch for service lamp, LAMP WD type
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| LAMP WD | R37RC-03020000200 |
|
stockable Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 0,160 kg | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
| OP-60 | R37RC-03020000201 |
|
stockable Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 0,818 kg | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
LAMP WD CABINET LIGHTING SWITCH
Technical data
Certyfikaty normy
| Stopień ochrony | IP20 |
|---|
Dane mechaniczne
| Colour | black |
|---|---|
| Material | ABS |
| Ambient temperature [°C] | -10 ÷ +50 |
| Contact type | NO (13-14) NC (21-22) Independent operation |
Dane elektryczne
| Rated voltage [V AC] | 230 |
|---|---|
| Contact current-carrying capacity [A] | 10 |
| Electrical insulation strength [kV] | 2,5 |
The kit
| Element set | Amount included |
|---|---|
| Connection wire | 1 |
| Installation kit | 1 |
