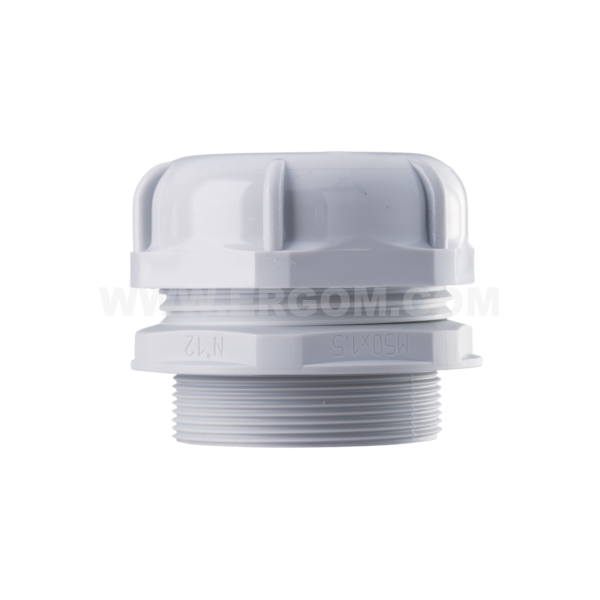

Insulating gland, DW...R, DW...RM type - DW 50RM
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| DW 50RM E03DK-01170200701 | 1 | 1 | pcs. | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| DW 50RM | E03DK-01170200701 |
|
on request Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 0,062 kg | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
DW 50RM CABLE GLAND
Technical data
Certyfikaty normy
| Stopień ochrony | IP66 |
|---|---|
| Klasa palności | UL 94 V2 |
| Normy | EN 62444; type A |
Dane mechaniczne
| Material | body: polyamide 6.6; seal: PVC plasticized, coloured with a plugging membrane |
|---|---|
| Colour | grey (RAL 7035) |
| Operating temperature [°C] | -5 ÷ +70 |
| M thread | M50x1,6 |
| Cable external diameter [mm] | 26÷38 |
Sizes
| E | 13 |
|---|---|
| L | 40 |
| For spanner A | 59 |
Guide
Accessories and sets
N 50M (10 PCS)
Price on request Adding a product to the shopping cart with a price on request means that the cart can only be completed as an Inquiry.
add to cart
