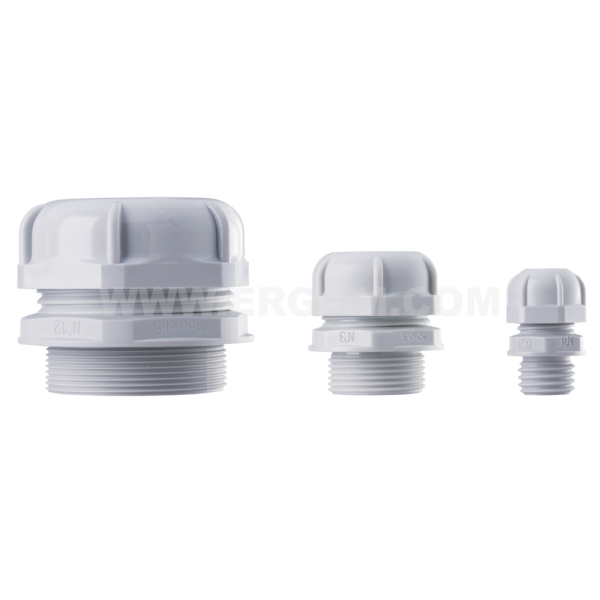

Insulating gland, DW...R, DW...RM type

Insulating gland, DW...R, DW...RM type

Main data of the product series

Product name
Insulating gland, DW...R, DW...RM type
Category
Made of plastic
Operating temperature [°C]
-5 ÷ +70
Colour
grey (RAL 7035)
Material
body: polyamide 6.6; seal: PVC plasticized, coloured with a plugging membrane
Flammability class
UL 94 V2
IP degree of protection
IP66
Note!
Nuts and seals are to be ordered separately.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
DW 7R E03DK-01170100103 10 10 pcs. Price on request
DW 9R E03DK-01170100203 10 10 pcs. Price on request
DW 11R E03DK-01170100303 10 10 pcs. Price on request
DW 13R E03DK-01170100403 10 10 pcs. Price on request
DW 16R E03DK-01170100503 10 10 pcs. Price on request
DW 21R E03DK-01170100603 10 10 pcs. Price on request
DW 29R E03DK-01170100703 10 10 pcs. Price on request
DW 36R E03DK-01170100803 10 10 pcs. Price on request
DW 42R E03DK-01170100901 1 1 pcs. Price on request
DW 48R E03DK-01170101001 1 1 pcs. Price on request
DW 12RM E03DK-01170200103 10 10 pcs. Price on request
DW 16RM E03DK-01170200203 10 10 pcs. Price on request
DW 20RM E03DK-01170200303 10 10 pcs. Price on request
DW 25RM E03DK-01170200403 10 10 pcs. Price on request
DW 32RM E03DK-01170200503 10 10 pcs. Price on request
DW 40RM E03DK-01170200603 10 10 pcs. Price on request
DW 50RM E03DK-01170200701 1 1 pcs. Price on request
DW 63RM E03DK-01170200801 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material body: polyamide 6.6; seal: PVC plasticized, coloured with a plugging membrane
Colour grey (RAL 7035)
Operating temperature [°C] -5 ÷ +70
Stopień ochrony IP66
Klasa palności UL 94 V2
Normy EN 62444; type A
Name M thread PG thread Cable external diameter [mm] E L For spanner A
DW 7R - PG7 3÷6 9 18 15
DW 9R - PG9 4÷8 9 22 19
DW 11R - PG11 5÷10 9 22 22
DW 13R - PG13,5 7,5÷13 10 23 24
DW 16R - PG16 9,5÷15 10 23 26
DW 21R - PG21 13÷19 11 29 32
DW 29R - PG29 15÷25 12 29 41
DW 36R - PG36 21÷32 14 35 52
DW 42R - PG42 26÷38 16 40 59
DW 48R - PG48 31÷44 18 42 65
DW 12RM M12x1,5 - 3÷6 8 18 15
DW 16RM M16x1,5 - 4÷8 8 22 19
DW 20RM M20x1,5 - 7,5÷13 9 23 24
DW 25RM M25x1,5 - 13÷19 11 29 32
DW 32RM M32x1,5 - 15÷25 11 29 41
DW 40RM M40x1,5 - 21÷32 13 35 52
DW 50RM M50x1,6 - 26÷38 13 40 59
DW 63RM M63x1,7 - 31÷44 14 42 65

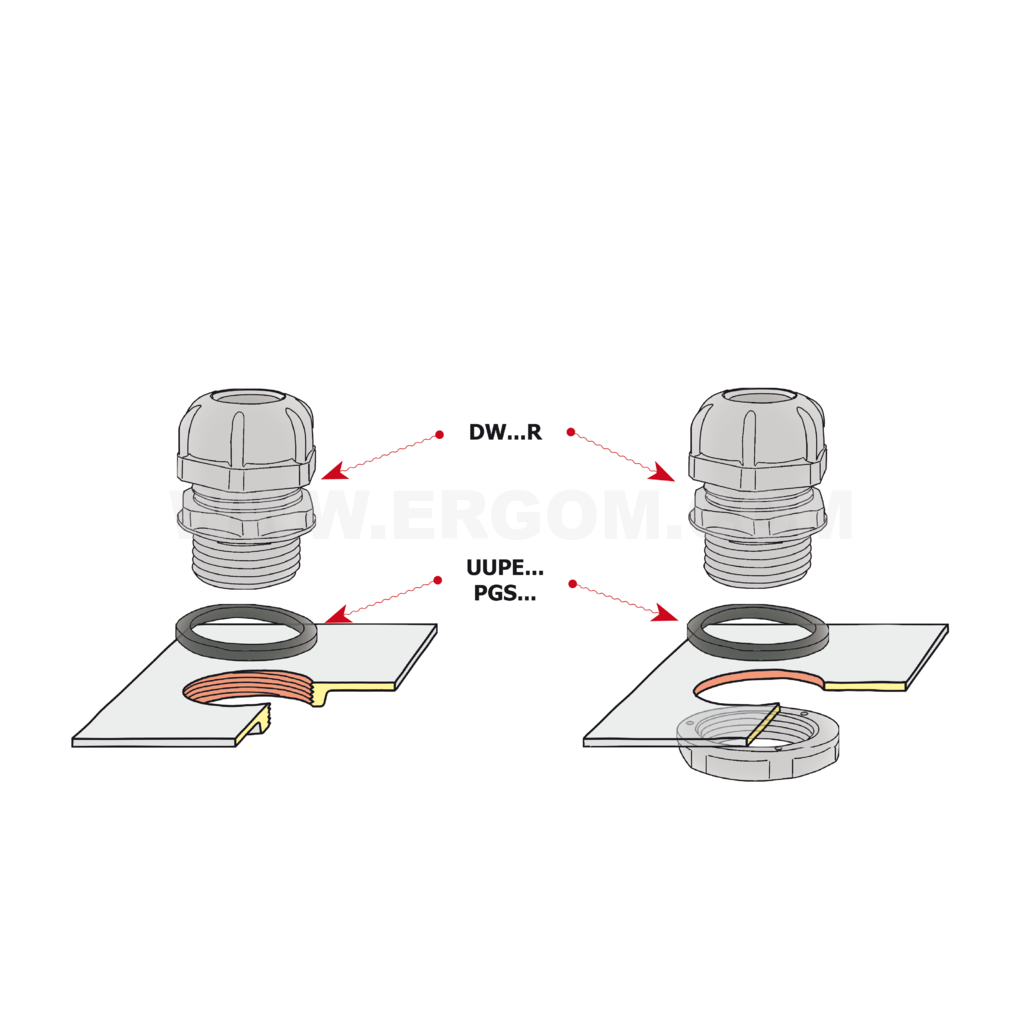

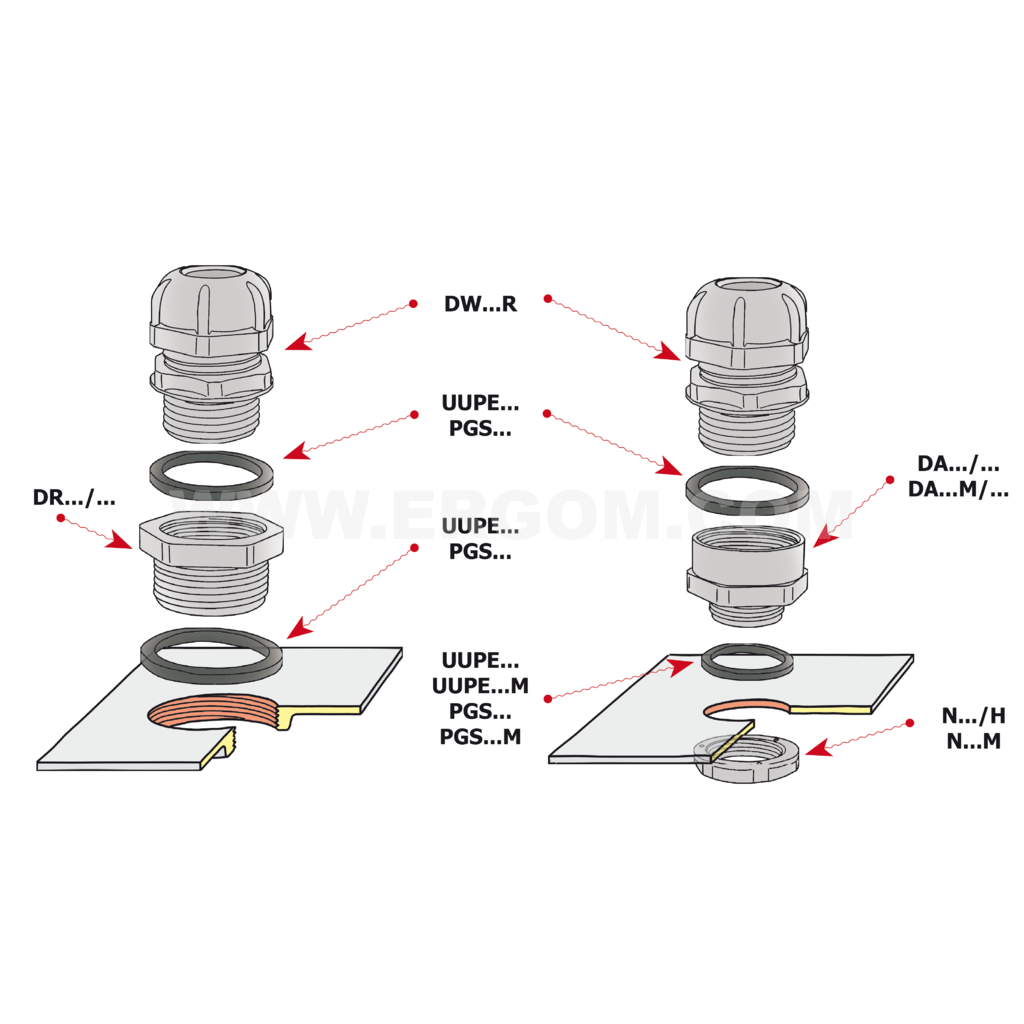

Guide

Insulating gland, DW...R, DW...RM type
Insulating gland, DW...R, DW...RM type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Dlawnica_izolacyjna_typu_DW_R_DW_RM_EN.pdf EN 14-05-2025 302.81 KB PDF Download
Catalog card ERGOM_Dlawnica_izolacyjna_typu_DW_R_DW_RM_PL.pdf PL 14-05-2025 312.39 KB PDF Download
