Insulating gland, DP-EN...HM, DP-EN...HM BK type - DP-EN 32 HM (50 PCS)
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| DP-EN 32 HM (50 PCS) E03DK-01040100501 | 50 | 50 | pcs. | Price on request |
|
| DP-EN 32 HM (10 PCS) E03DK-01040100503 | 10 | 10 | pcs. | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| DP-EN 32 HM | E03DK-01040100501 |
|
stockable Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 0,030 kg | Contact with BOK Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
| DP-EN 32 HM | E03DK-01040100503 |
|
stockable Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 0,030 kg | Contact with BOK Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description

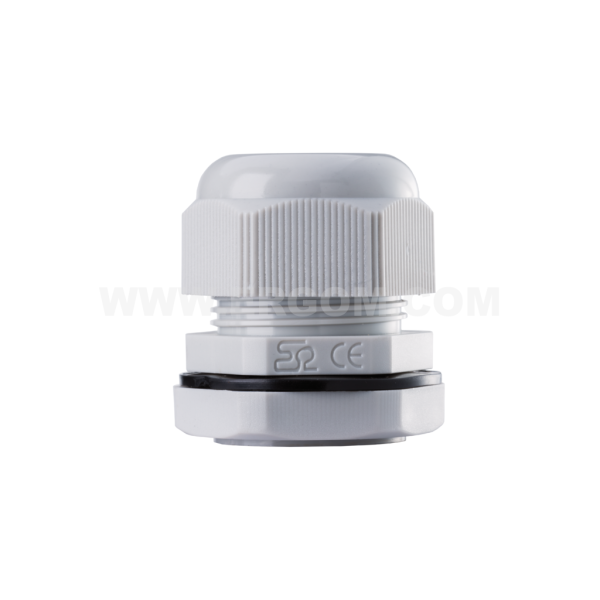

DP-EN 32 HM (50 PCS) CABLE GLAND
Technical data
Certyfikaty normy
| Stopień ochrony | IP68 |
|---|---|
| Klasa palności | UL 94 V2 |
| Normy | EN 62444; type A |
Dane mechaniczne
| Material | body: polyamide 6; seal - PVC |
|---|---|
| Colour | grey (RAL 7035), black BK (RAL 9005) |
| Operating temperature [°C] | -30 ÷ +80 |
| Colour | grey |
| M thread | M32x1,5 |
| Cable external diameter [mm] | 16,0÷21,0 |
Sizes
| E | 11 |
|---|---|
| H | 7,3 |
| L | 40 |
| K | 1,7 |
| For spanner A | 35 |
| For spanner B | 36 |
| For spanner C | 39 |
