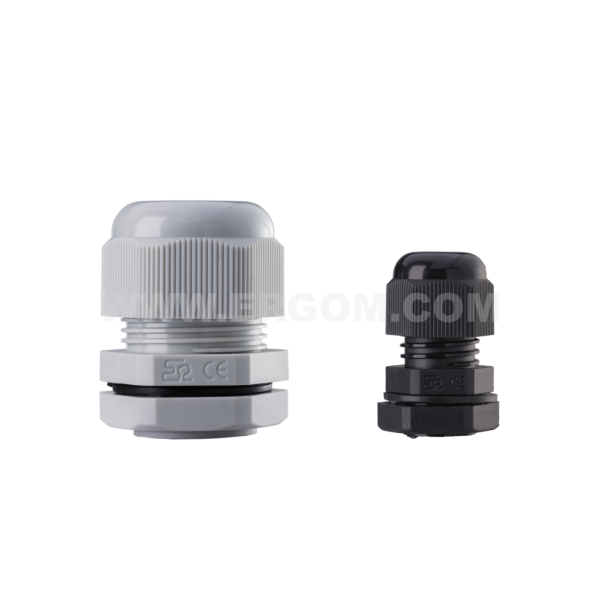

Insulating gland, DP-EN...HM, DP-EN...HM BK type

Insulating gland, DP-EN...HM, DP-EN...HM BK type

Main data of the product series

Product name
Insulating gland, DP-EN...HM, DP-EN...HM BK type
Category
Made of plastic
Material
body: polyamide 6; seal - PVC
Operating temperature [°C]
-30 ÷ +80
Colour
grey (RAL 7035), black BK (RAL 9005)
IP degree of protection
IP68
Flammability class
UL 94 V2
Note!
Gland, nut and sealing washer in a kit.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
DP-EN 12 HM E03DK-01040100101 100 100 pcs. Price on request
DP-EN 12 HM E03DK-01040100103 10 10 pcs. Price on request
DP-EN 16 HM E03DK-01040100201 100 100 pcs. Price on request
DP-EN 16 HM E03DK-01040100203 10 10 pcs. Price on request
DP-EN 20 HM E03DK-01040100301 100 100 pcs. Price on request
DP-EN 20 HM E03DK-01040100303 10 10 pcs. Price on request
DP-EN 25 HM E03DK-01040100401 50 50 pcs. Price on request
DP-EN 25 HM E03DK-01040100403 10 10 pcs. Price on request
DP-EN 32 HM E03DK-01040100501 50 50 pcs. Price on request
DP-EN 32 HM E03DK-01040100503 10 10 pcs. Price on request
DP-EN 40 HM E03DK-01040100601 10 10 pcs. Price on request
DP-EN 50 HM E03DK-01040100701 10 10 pcs. Price on request
DP-EN 50 HM E03DK-01040100703 1 1 pcs. Price on request
DP-EN 63 HM E03DK-01040100801 10 10 pcs. Price on request
DP-EN 63 HM E03DK-01040100803 1 1 pcs. Price on request
DP-EN 63-2 HM E03DK-01040100901 10 10 pcs. Price on request
DP-EN 63-2 HM E03DK-01040100903 1 1 pcs. Price on request
DP-EN 12 HM BK E03DK-01040120101 100 100 pcs. Price on request
DP-EN 12 HM BK E03DK-01040120103 10 10 pcs. Price on request
DP-EN 16 HM BK E03DK-01040120501 100 100 pcs. Price on request
DP-EN 16 HM BK E03DK-01040120503 10 10 pcs. Price on request
DP-EN 20 HM BK E03DK-01040121001 100 100 pcs. Price on request
DP-EN 20 HM BK E03DK-01040121003 10 10 pcs. Price on request
DP-EN 25 HM BK E03DK-01040123001 50 50 pcs. Price on request
DP-EN 25 HM BK E03DK-01040123003 10 10 pcs. Price on request
DP-EN 32 HM BK E03DK-01040124001 50 50 pcs. Price on request
DP-EN 32 HM BK E03DK-01040124003 10 10 pcs. Price on request
DP-EN 40 HM BK E03DK-01040125001 10 10 pcs. Price on request
DP-EN 50 HM BK E03DK-01040126001 10 10 pcs. Price on request
DP-EN 50 HM BK E03DK-01040126003 1 1 pcs. Price on request
DP-EN 63 HM BK E03DK-01040127001 10 10 pcs. Price on request
DP-EN 63 HM BK E03DK-01040127003 1 1 pcs. Price on request
DP-EN 63-2 HM BK E03DK-01040128001 10 10 pcs. Price on request
DP-EN 63-2 HM BK E03DK-01040128003 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material body: polyamide 6; seal - PVC
Colour grey (RAL 7035), black BK (RAL 9005)
Operating temperature [°C] -30 ÷ +80
Stopień ochrony IP68
Klasa palności UL 94 V2
Normy EN 62444; type A
Name Colour M thread Cable external diameter [mm] E H L K For spanner A For spanner B For spanner C
DP-EN 12 HM grey M12x1,5 3,0÷6,5 8 5,0 22 1,2 16 16 18
DP-EN 16 HM grey M16x1,5 4,0÷8,0 8 5,0 26 1,4 19 19 21
DP-EN 20 HM grey M20x1,5 7,0÷12,0 9 5,5 28 1,4 24 24 27
DP-EN 25 HM grey M25x1,5 11,0÷18,0 10 6,3 36 1,4 32 33 33
DP-EN 32 HM grey M32x1,5 16,0÷21,0 11 7,3 40 1,7 35 36 39
DP-EN 40 HM grey M40x1,5 20,0÷32,0 18 7,5 48 1,7 53 51 50
DP-EN 50 HM grey M50x1,5 30,0÷38,0 18 7,5 49 1,7 61 58 60
DP-EN 63 HM grey M63x1,5 36,0÷44,0 18 7,5 50 1,7 67 67 74
DP-EN 63-2 HM grey M63x1,5 42,0÷50,0 26 11,0 58 2,0 76 76 73
DP-EN 12 HM BK black M12x1,5 3,0÷6,5 8 5,0 22 1,2 16 16 18
DP-EN 16 HM BK black M16x1,5 4,0÷8,0 8 5,0 26 1,4 19 19 21
DP-EN 20 HM BK black M20x1,5 7,0÷12,0 9 5,5 28 1,4 24 24 27
DP-EN 25 HM BK black M25x1,5 11,0÷18,0 10 6,3 36 1,4 32 33 33
DP-EN 32 HM BK black M32x1,5 16,0÷21,0 11 7,3 40 1,7 35 36 39
DP-EN 40 HM BK black M40x1,5 20,0÷32,0 18 7,5 48 1,7 53 51 50
DP-EN 50 HM BK black M50x1,5 30,0÷38,0 18 7,5 49 1,7 61 58 60
DP-EN 63 HM BK black M63x1,5 36,0÷44,0 18 7,5 50 1,7 67 67 74
DP-EN 63-2 HM BK black M63x1,5 42,0÷50,0 26 11,0 58 2,0 76 76 73

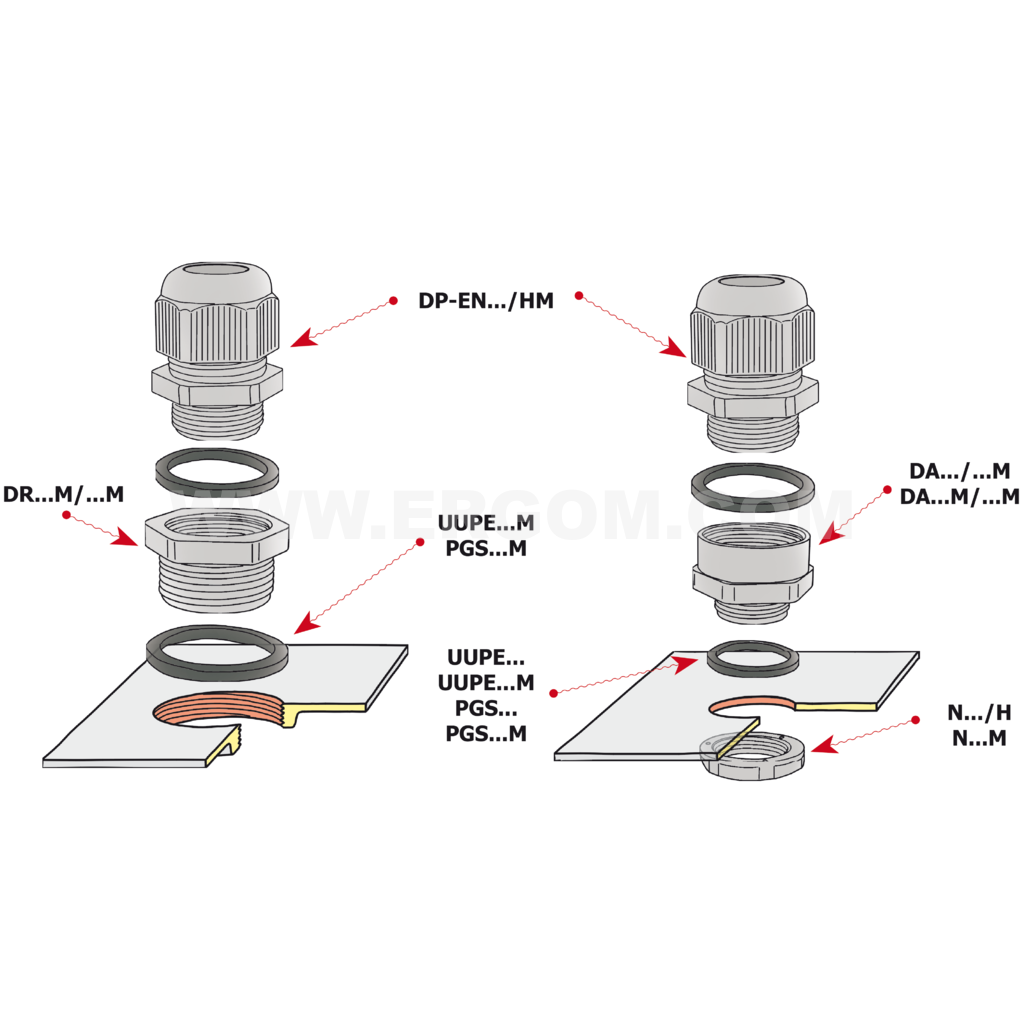

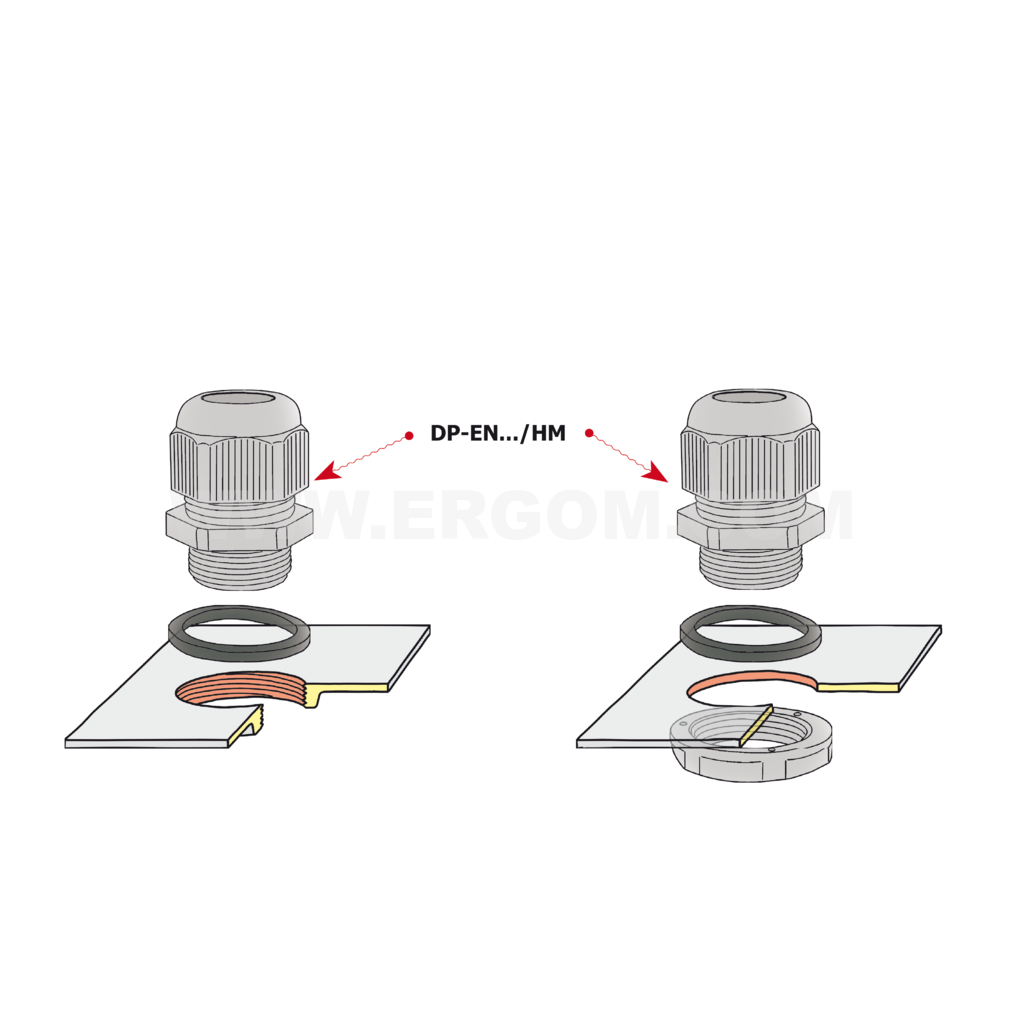

Guide

Insulating gland, DP-EN...HM, DP-EN...HM BK type
Insulating gland, DP-EN...HM, DP-EN...HM BK type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Dlawnica_izolacyjna_typu_DP-EN_HM_DP-EN_HM_BK_EN.pdf EN 05-09-2025 440.12 KB PDF Download
Catalog card ERGOM_Dlawnica_izolacyjna_typu_DP-EN_HM_DP-EN_HM_BK_PL.pdf PL 05-09-2025 457.73 KB PDF Download
