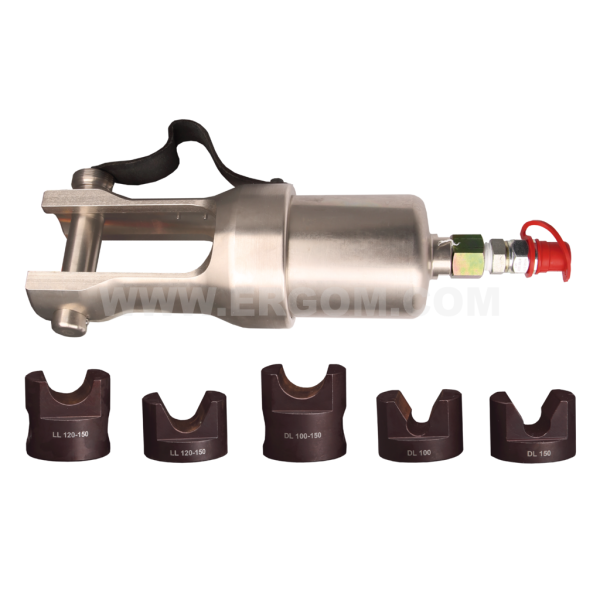

Hydraulic kit for contact wires, HH 630 DJP type
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| HH-630 DJP E06PZ-06010200100 | 1 | 1 | set | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| HH-630 DJP | E06PZ-06010200100 |
|
on request Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 7,000 kg | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
Technical data
Dane mechaniczne
| Drive | external pressure source |
|---|---|
| Crimping force [kN] | 250 |
| Working pressure [MPa] | depending on the feed pump, max. 70 |
| Piston stroke [mm] | 32 |
| Coupler type | 115 Series COUPLING 3/8" NPT MALE NBR |
| Length [mm] | 260 |
The kit
| Index | Element set | Amount included | Additional description |
|---|---|---|---|
| E06PZ-05080100101 | HH-630 | 1 | Punching head for hoop iron, GD-B 10.5 |
| E06PZ-06020100100 | DL 100-150 | 1 | Die - 3 elements |
| E06PZ-06020100200 | LL 120-150 | 1 | Die - 2 elements |
| – | Metal case | 1 | – |
| – | Instruction manual | 1 | – |
Clinching
| Terminal group | Cable cross-section [mm²] | Die |
|---|---|---|
| LL |
|
DL 100-150 |
| LD |
|
LL 120-150 |
Guide
No data
