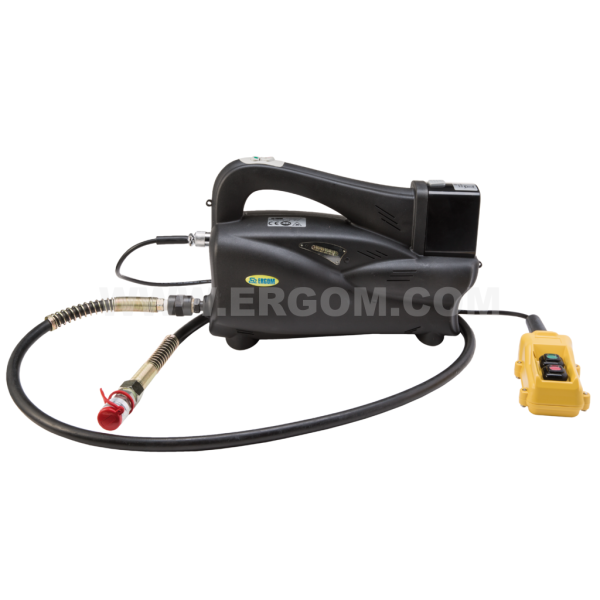

Battery-powered hydraulic pump, PE 700B
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| PE 700 B E06PH-01010201000 | 1 | 1 | pcs. | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| PE 700 B | E06PH-01010201000 |
|
stockable Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 8,300 kg | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
Technical data
Dane mechaniczne
| Oil container capacity [l] | 0,7 |
|---|---|
| Maximum operating pressure [MPa] | 70 |
| Minimum Operating Pressure [MPa] | 0,2 |
| Drive | electrical (battery) - 14,4 V DC |
| Hydraulic hose length [m] | 2 |
| Number of hydraulic system stages | 2 |
| Efficiency, 1st stage [l/min] | 0,5 |
| Efficiency, 2nd stage [l/min] | 0,15 |
| Coupler type | 115 Series COUPLING 3/8” NPT MALE NBR |
Wymiary
| Dimension [mm] | 260x390x160 |
|---|
The kit
| Element set | Amount included |
|---|---|
| Hydraulic hose | 1 |
| Li-ion battery | 1 |
| Remote controller | 1 |
| Instruction manual | 1 |
| Box | 1 |
Guide
No data
