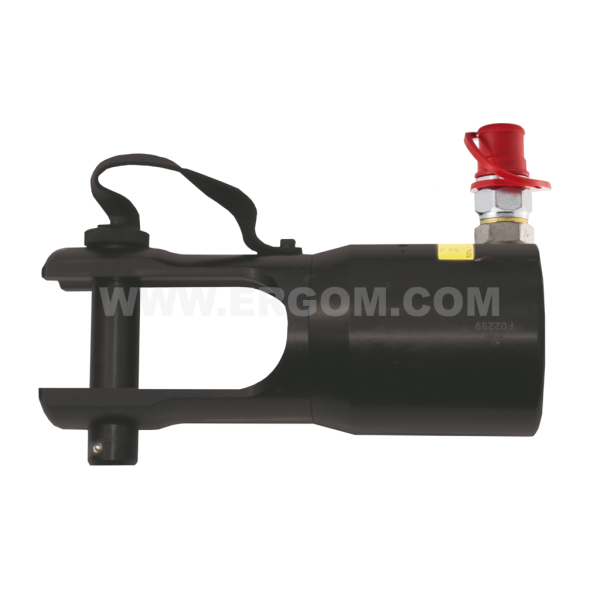

Hydraulic head, HH 1000

Hydraulic head, HH 1000
Offer Type / Ergom index Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
HH-1000 E06PZ-05090100101 1 1 pcs. Price on request
Sum:
— net
VAT:
23%
Logistic data Ergom index EAN Stock availability Net weight Delivery time
HH-1000 E06PZ-05090100101
  • 5900003103164 1 SZT.
 stockable Warehouse products are shipped from stock; the remaining ones are made to order. ~ 11,200 kg 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia.

Features and benefits

No data

Product description

HH-1000 CRIMPING HEAD

Technical data

Dane mechaniczne

Drive external pressure source
Die type H1
Crimping force [kN] 450
Working pressure [MPa] depending on the feed pump, max. 70
Piston stroke [mm] 32
Coupler type 115 Series COUPLING 3/8" NPT MALE NBR
Length [mm] 370
Crimping range 70 ÷ 1000

The kit

Element set Amount included
Instruction manual 1

Clinching

Terminal group Socket code no. Cable cross-section [mm²] Crimping shape Die
Cu DIN
  • 20
  • 22
  • 25
  • 28
  • 32
  • 38
  • 42
  • 44
  • 52
  • 58
  • 120
  • 150
  • 185
  • 240
  • 300
  • 400
  • 500
  • 625
  • 800
  • 1000
 hexagon
  • RH1-20
  • RH1-22
  • RH1-25
  • RH1-28
  • RH1-32
  • RH1-38
  • RH1-42
  • RH1-44
  • RH1-52
  • RH1-58
Al-c
  • 19
  • 21
  • 23
  • 28
  • 120
  • 150
  • 185
  • 240
 hexagon
  • AH1-19
  • AH1-21
  • AH1-23
  • AH1-28
Al-g
  • 22
  • 25
  • 28
  • 30
  • 34
  • 95
  • 120
  • 150
  • 185
  • 240
 hexagon
  • AH1-22
  • AH1-25
  • AH1-28
  • AH1-30
  • AH1-34
Al DIN
  • 22
  • 25
  • 28
  • 32
  • 34
  • 38
  • 44
  • 52
  • 58
  • 95 - 120
  • 150
  • 185
  • 240
  • 300
  • 400
  • 500
  • 625
  • 800
 hexagon
  • AH1-22
  • AH1-25
  • AH1-28
  • AH1-32
  • AH1-34
  • AH1-38
  • AH1-44
  • AH1-52
  • AH1-58
Al-Cu
  • 22
  • 25
  • 28
  • 32
  • 34
  • 95 - 120
  • 150
  • 185
  • 240
  • 300
 hexagon
  • AH1-22
  • AH1-25
  • AH1-28
  • AH1-32
  • AH1-34
Standard Cu
  • 19
  • 20
  • 23
  • 25
  • 28
  • 32
  • 36
  • 42
  • 120
  • 150
  • 185
  • 240
  • 300
  • 400
  • 500
  • 625
 hexagon
  • RH1-19
  • RH1-20
  • RH1-23
  • RH1-25
  • RH1-28
  • RH1-32
  • RH1-36
  • RH1-42
