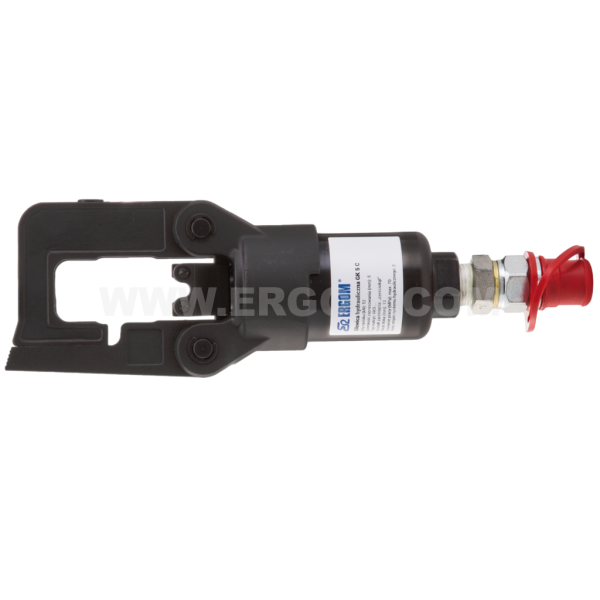

Hydraulic head, GK 5 C

Hydraulic head, GK 5 C

Offer Type / Ergom index	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
GK 5 C E06PZ-05030200301	1	1	pcs.	Price on request

Sum:: — net
VAT:: 23%

Logistic data	Ergom index	EAN	Stock availability	Net weight	Delivery time
GK 5 C	E06PZ-05030200301	5900003695249 1 SZT.	stockable	~ 3,150 kg	24h

Features and benefits

No data

Product description

GK 5 C CRIMPING HEAD

Technical data

Dane mechaniczne

Drive	external pressure source
Die type	HK5
Crimping force [kN]	52
Working pressure [MPa]	depending on the feed pump, max. 70
Piston stroke [mm]	13
Coupler type	115 Series COUPLING 3/8" NPT MALE NBR
Length [mm]	185
Crimping range	6 ÷ 300

The kit

Element set	Amount included
Plastic case	1
Instruction manual	1

Clinching

Terminal group	Socket code no.	Cable cross-section [mm²]	Crimping shape	Die
Cu DIN	5 6 10 12 14 16 20 22 25	6 10 25 35 50 70 120 150 185	hexagon	HK5-5 HK5-6 HK5-10 HK5-12 HK5-14 HK5-16 HK5-20 HK5-22 HK5-25
Al-c	10 11 12 14 16 19 21 23	16 25 35 50 70 120 150 185	hexagon	HK5-10 HK5-11 HK5-12 HK5-14 HK5-16 HK5-19 HK5-21 HK5-23
Al-g	13 14 16 20 22 25	16 25 35 70 95 120	hexagon	HK5-13 HK5-14 HK5-16 HK5-20 HK5-22 HK5-25
Al DIN	10 12 14 16 22 25	10 16 - 25 35 50 95 - 120 150	hexagon	HK5-10 HK5-12 HK5-14 HK5-16 HK5-22 HK5-25
sm	–	35 95 185	round forming	HK5 S35 HK5 S95 HK5 S185
se	–	50 120 240	round forming	HK5 S35 HK5 S95 HK5 S185
KO, KW, KI, KOR, KL	–	10 25 35	indent	HK5 K10 HK5 K25 HK5 K35
HI 2x	–	16	trapezoid	HK5 2H16
ZLA	–	16 25 35 50 70 95 120	crimping	HK5-ZL16 HK5-ZL25 HK5-ZL35 HK5-ZL50 HK5-ZL70 HK5-ZL95 HK5-ZL120
Cu EKO - KREo, LE	6 9 11 13 15 17 19	10 25 35 50 70 95 120	hexagon	HK5-6 HK5-9 HK5-11 HK5-13 HK5-15 HK5-17 HK5-19
Standard Cu	10 12 14 16 17 19 20 23 25	25 35 50 70 95 120 150 185 240	hexagon	HK5-10 HK5-12 HK5-14 HK5-16 HK5-17 HK5-19 HK5-20 HK5-23 HK5-25
KOI, KWI, KII, KLI	–	70	oval	HK5 I70
H...ERHN, HI...ERHL, HIG	–	50 70 95	trapezoid	HK5 H50 HK5 H70 HK5 H95

Guide

No data

Accessories and sets

PE 700 B

PE 700 B

Price on request Adding a product to the shopping cart with a price on request means that the cart can only be completed as an Inquiry.

HN 702 M

HN 702 M

Price on request Adding a product to the shopping cart with a price on request means that the cart can only be completed as an Inquiry.

HNP 703

HNP 703

Price on request Adding a product to the shopping cart with a price on request means that the cart can only be completed as an Inquiry.

WHH 9M

WHH 9M

Price on request Adding a product to the shopping cart with a price on request means that the cart can only be completed as an Inquiry.

WHH 15M

WHH 15M

Price on request Adding a product to the shopping cart with a price on request means that the cart can only be completed as an Inquiry.

WHP 2

WHP 2

Price on request Adding a product to the shopping cart with a price on request means that the cart can only be completed as an Inquiry.

WHP 6

WHP 6

Price on request Adding a product to the shopping cart with a price on request means that the cart can only be completed as an Inquiry.

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Glowica_hydrauliczna_GK_5_C_EN.pdf	EN	14-05-2025	185.8 KB	PDF	Download
Catalog card	ERGOM_Glowica_hydrauliczna_GK_5_C_PL.pdf	PL	14-05-2025	226.01 KB	PDF	Download
