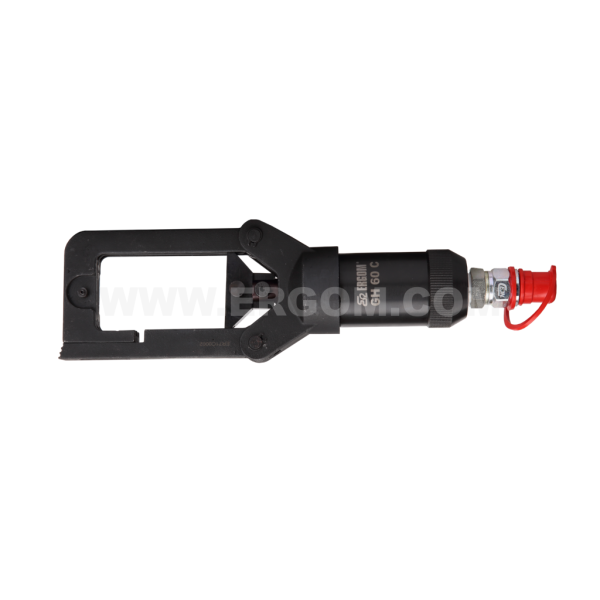

Hydraulic head, GH 60 C

Hydraulic head, GH 60 C
Offer Type / Ergom index Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
GH 60 C E06PZ-05130001600 1 1 pcs. Price on request
Sum:
— net
VAT:
23%
Logistic data Ergom index EAN Stock availability Net weight Delivery time
GH 60 C E06PZ-05130001600
  • 5900003722600 1 SZT.
 stockable Warehouse products are shipped from stock; the remaining ones are made to order. ~ 2,500 kg 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia.

Features and benefits

No data

Product description

GH 60 C Universal hydraulic head

Technical data

Dane mechaniczne

Drive external pressure source
Die type KP22
Crimping force [kN] 60
Working pressure [MPa] depending on the feed pump, max. 70
Piston stroke [mm] 42
Coupler type 115 Series COUPLING 3/8" NPT MALE NBR
Length [mm] 185
Crimping range 6 ÷ 300

The kit

Element set Amount included Additional description
UH-K22 1 adapter die system, 22
UH-N40 1 cutting knives
Instruction manual 1 –
Metal case 1 –

Clinching

Terminal group Cable cross-section [mm²] Crimping shape Die Socket code no.
CKOR, CKL
  • 10
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
  • 120
  • 150
  • 185
  • 240
 hexagon
  • KP22-C10
  • KP22-C16
  • KP22-C25
  • KP22-C35
  • KP22-C50
  • KP22-C70
  • KP22-C95
  • KP22-C120
  • KP22-C150
  • KP22-C185
  • KP22-C240
 –
Cu DIN
  • 6
  • 10
  • 25
  • 35
  • 50
  • 70
  • 95
  • 120
  • 150
  • 185
  • 240
  • 300
 hexagon
  • KP22-5
  • KP22-6
  • KP22-10
  • KP22-12
  • KP22-14
  • KP22-16
  • KP22-18
  • KP22-20
  • KP22-22
  • KP22-25
  • KP22-28
  • KP22-32
  • 5
  • 6
  • 10
  • 12
  • 14
  • 16
  • 18
  • 20
  • 22
  • 25
  • 28
  • 32
Al-c
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
  • 120
  • 150
  • 185
  • 240
 hexagon
  • KP22-10
  • KP22-11
  • KP22-12
  • KP22-14
  • KP22-16
  • KP22-18
  • KP22-19
  • KP22-21
  • KP22-23
  • KP22-28
  • 10
  • 11
  • 12
  • 14
  • 16
  • 18
  • 19
  • 22
  • 23
  • 28
Al-g
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
  • 120
  • 150
  • 185
 hexagon
  • KP22-13
  • KP22-14
  • KP22-16
  • KP22-18
  • KP22-20
  • KP22-22
  • KP22-25
  • KP22-28
  • KP22-30
  • 13
  • 14
  • 16
  • 18
  • 20
  • 22
  • 25
  • 28
  • 30
Al DIN
  • 10
  • 16 - 25
  • 35
  • 50
  • 70
  • 95 - 120
  • 150
  • 185
  • 240
 hexagon
  • KP22-10
  • KP22-12
  • KP22-14
  • KP22-16
  • KP22-18
  • KP22-22
  • KP22-25
  • KP22-28
  • KP22-32
  • 10
  • 12
  • 14
  • 16
  • 18
  • 22
  • 25
  • 28
  • 32
sm
  • 10
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
  • 120
  • 150
  • 185
  • 240
  • 300
 round forming
  • KP22-S10
  • KP22-S16
  • KP22-S25
  • KP22-S35
  • KP22-S50
  • KP22-S70
  • KP22-S95
  • KP22-S120
  • KP22-S150
  • KP22-S185
  • KP22-S240
  • KP22-S300
 –
se
  • 35
  • 50
  • 70
  • 95
  • 120
  • 150
  • 185
  • 240
  • 300
 round forming
  • KP22-S25
  • KP22-S35
  • KP22-S50
  • KP22-S70
  • KP22-S95
  • KP22-S120
  • KP22-S150
  • KP22-S185
  • KP22-S240
 –
KO, KW, KI, KOR, KL
  • 10
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
 indent
  • KP22-K10
  • KP22-K16
  • KP22-K25
  • KP22-K35
  • KP22-K50
  • KP22-K70
  • KP22-K95
 –
HI 2x
  • 6
  • 10
  • 16
 trapezoid
  • KP22-2H6
  • KP22-2H10
  • KP22-2H16
 –
ZLA
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
 crimping
  • KP22-ZL16
  • KP22-ZL25
  • KP22-ZL35
  • KP22-ZL50
  • KP22-ZL70
  • KP22-ZL95
 –
MJPT
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
  • 95
  • 120
 hexagon
  • KP22-E173
  • KP22-E173
  • KP22-E173
  • KP22-E173
  • KP22-E173
  • KP22-E173
  • KP22-E215
  • KP22-E215
 –
MJPB
  • 16
  • 25
  • 35
 hexagon KP22-E140 –
Cu EKO - KREo, LE
  • 10
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
  • 120
  • 150
  • 185
  • 240
  • 120
  • 150
  • 185
  • 240
 hexagon
  • KP22-6
  • KP22-7
  • KP22-9
  • KP22-11
  • KP22-13
  • KP22-15
  • KP22-17
  • KP22-19
  • KP22-20
  • KP22-23
  • KP22-25
  • KP22-C120
  • KP22-C150
  • KP22-C185
  • KP22-C240
  • 6
  • 7
  • 9
  • 11
  • 13
  • 15
  • 17
  • 19
  • 20
  • 23
  • 25
Standard Cu
  • 10
  • 25
  • 35
  • 50
  • 70
  • 95
  • 120
  • 150
  • 185
  • 240
  • 300
  • 400
 hexagon
  • KP22-7
  • KP22-10
  • KP22-12
  • KP22-14
  • KP22-16
  • KP22-17
  • KP22-19
  • KP22-20
  • KP22-23
  • KP22-25
  • KP22-28
  • KP22-32
  • 7
  • 10
  • 12
  • 14
  • 16
  • 17
  • 19
  • 20
  • 23
  • 25
  • 28
  • 32
H...ERHN, HI...ERHL, HIG
  • 10
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
  • 120
  • 150
  • 185
 trapezoid
  • KP22-H10
  • KP22-H16
  • KP22-H25
  • KP22-H35
  • KP22-H50
  • KP22-H70
  • KP22-H95
  • KP22-H120
  • KP22-H150
  • KP22-H185
 –
ZLAF, ZLAFD
  • 25
  • 35
  • 50
  • 70
 crimping
  • KP22-ZL35
  • KP22-ZL50
  • KP22-ZL70
  • KP22-ZL95
 –
KOI, KWI, KII, KLI
  • 10
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
  • 120
 oval
  • KP22-I10
  • KP22-I16
  • KP22-I25
  • KP22-I35
  • KP22-I50
  • KP22-I70
  • KP22-I95
  • KP22-I120
 –

Cutting

Cable type Max. cross-section of cut off cable [mm²] Max. diameter of cut off cable [mm]
Solid round shape aluminium cables 300 30
Flexible round shape aluminium cables 400 40
Solid sector shape aluminium cables 4x95; 3x120 -
Flexible sector shape aluminium cables 4x120; 3x150 -
Solid round shape copper cables 240 28
Flexible round shape copper cables 300 38
Solid sector shape copper cables 4x70; 3x95 -
Flexible sector shape copper cables 4x95; 3x120 -
