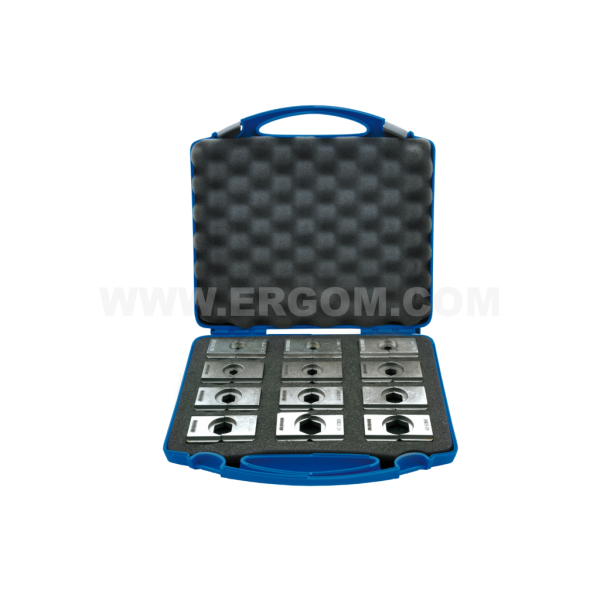

Die set, Z-HK5-DIN

Die set, Z-HK5-DIN
Offer Type / Ergom index Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
Z-HK5-DIN E06PZ-05040160100 1 1 set Price on request
Sum:
— net
VAT:
23%
Logistic data Ergom index EAN Stock availability Net weight Delivery time
Z-HK5-DIN E06PZ-05040160100
  • 5900003593149 1 KPL.
 on request Warehouse products are shipped from stock; the remaining ones are made to order. ~ 0,128 kg 23 Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia.

Features and benefits

No data

Product description

Z-HK5-DIN DIES SET

Technical data

The kit

Index Element set Amount included Additional description
E06PZ-05030400150 HK5-5 1 Die
E06PZ-05030400400 HK5-8 1 Die
E06PZ-05030400450 HK5-9 1 Die
E06PZ-05030400500 HK5-10 1 Die
E06PZ-05030400700 HK5-12 1 Die
E06PZ-05030400900 HK5-14 1 Die
E06PZ-05030401000 HK5-16 1 Die
E06PZ-05030401200 HK5-18 1 Die
E06PZ-05030401400 HK5-20 1 Die
E06PZ-05030401600 HK5-22 1 Die
E06PZ-05030401800 HK5-25 1 Die

Clinching

Terminal group Socket code no. Cable cross-section [mm²] Crimping shape Die
Cu DIN
  • 5
  • 8
  • 10
  • 12
  • 14
  • 16
  • 18
  • 20
  • 22
  • 25
  • 6
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
  • 120
  • 150
  • 185
 hexagon
  • HK5-5
  • HK5-8
  • HK5-10
  • HK5-12
  • HK5-14
  • HK5-16
  • HK5-18
  • HK5-20
  • HK5-22
  • HK5-25
Al-c
  • 10
  • 12
  • 14
  • 16
  • 16
  • 35
  • 50
  • 70
 hexagon
  • HK5-10
  • HK5-12
  • HK5-14
  • HK5-16
Al-g
  • 14
  • 16
  • 20
  • 22
  • 25
  • 25
  • 35
  • 70
  • 95
  • 120
 hexagon
  • HK5-14
  • HK5-16
  • HK5-20
  • HK5-22
  • HK5-25
Al DIN
  • 10
  • 12
  • 14
  • 16
  • 22
  • 25
  • 10
  • 16 - 25
  • 35
  • 50
  • 95 - 120
  • 150
 hexagon
  • HK5-10
  • HK5-12
  • HK5-14
  • HK5-16
  • HK5-22
  • HK5-25
Standard Cu
  • 8
  • 10
  • 12
  • 14
  • 16
  • 20
  • 25
  • 16
  • 25
  • 35
  • 50
  • 70
  • 150
  • 240
 hexagon
  • HK5-8
  • HK5-10
  • HK5-12
  • HK5-14
  • HK5-16
  • HK5-20
  • HK5-25
Cu EKO - KREo, LE
  • 9
  • 25
 hexagon HK5-9

Guide

No data

Accessories and sets

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zestaw_matryc_Z-HK5-DIN_EN.pdf EN 14-05-2025 157.57 KB PDF Download
Catalog card ERGOM_Zestaw_matryc_Z-HK5-DIN_PL.pdf PL 14-05-2025 203.96 KB PDF Download
