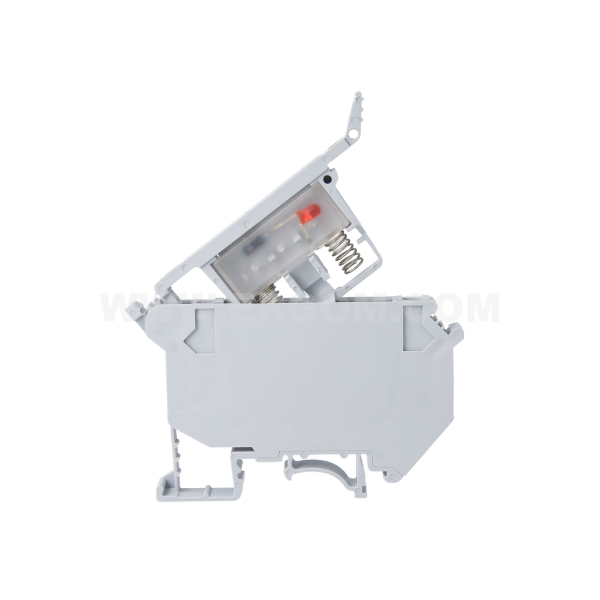

Special single-circuit fuse connector, ZJUB-2,5/LED230 type: for 2.5 mm² wires
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| ZJUB-2,5/LED230 (30 PCS) R34RR-07030010605 | 30 | 30 | pcs. | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| ZJUB-2,5/LED230 | R34RR-07030010605 |
|
stockable Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 0,020 kg | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
ZJUB-2,5/LED230 (30 PCS) SCREW TERMINAL
Technical data
Certyfikaty normy
| Stopień ochrony | IP20 |
|---|---|
| Klasa palności | UL 94 V0 |
| Normy | EN 60947-7-1 |
Dane mechaniczne
| Body material | polyamide |
|---|---|
| Circuit insulation length [mm] | 8 |
| Colour | grey |
| Indicator LED colour | red |
| Terminal crimping shape on cord | hexagon |
| Wire cross-section (cord) [mm²] | 0,2÷4 / 0,2÷2,5 |
| Nominal cross-section [mm²] | 2,5 |
| Ambient temperature [°C] | -25 ÷ +55 |
| Marker type | EZU-8 |
| Dimension (H x W x D) [mm] | 72,5 x 56,5 x 8,2 |
| Recommended tightening torque [Nm] | 0,6 |
| Recommended screwdriver tip type (flat) | 3,5x0,6 |
Dane elektryczne
| Power consumption [mA] | 0,5-1 |
|---|---|
| Constant current [A] | 6,3 (jest to maksymalna wartość prądu na jaką wykonana jest złączka) |
| Used fuse type [mm] | Ø5 x 20 (dostarczana bez bezpiecznika topikowego) |
| Electric strength [kV] | - |
| Signalled voltage range AC/DC [V] | 110÷250 |
Guide
No data
Accessories and sets
No data
