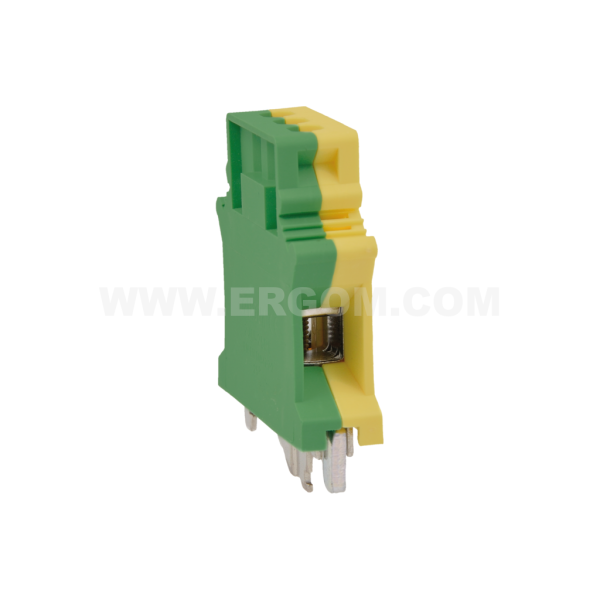

Single-circuit connector, ZJU2-16PE type: for 16 mm² wires 800V
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| ZJU2-16PE (36 PCS) R34RR-07020000605 | 36 | 36 | pcs. | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| ZJU2-16PE | R34RR-07020000605 |
|
stockable Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 0,020 kg | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
ZJU2-16PE (36 PCS) SCREW TERMINAL
Technical data
Certyfikaty normy
| Stopień ochrony | IP20 |
|---|---|
| Klasa palności | UL 94 V0 |
| Normy | EN 60947-7-2 |
Dane mechaniczne
| Body material | polyamide 6.6 |
|---|---|
| Current circuit material | Cu-alloy |
| Circuit insulation length [mm] | 10 |
| Colour | yellow-green |
| Terminal crimping shape on cord | trapezoid |
| Max. tightening torque (clamp bolt) [Nm] | 1,5 |
| Max. tightening torque (mounting bolt) [Nm] | 1,5 |
| Cross-sections of cables (wire/cord) [mm²] | 0,5÷16 / 0,5÷10 |
| Nominal cross-section [mm²] | 16 |
| Ambient temperature [°C] | -25 ÷ +55 |
| Marker type | EZU-10 |
| Dimension (H x W x D) [mm] | 42,5 x 12,2 x 54 |
| Recommended screwdriver tip type (flat) | 4x0,8 |
Dane elektryczne
| Rated insulation voltage Ui [V] | 800 |
|---|---|
| Constant current [A] | 101 |
| Electric strength [kV] | - |
