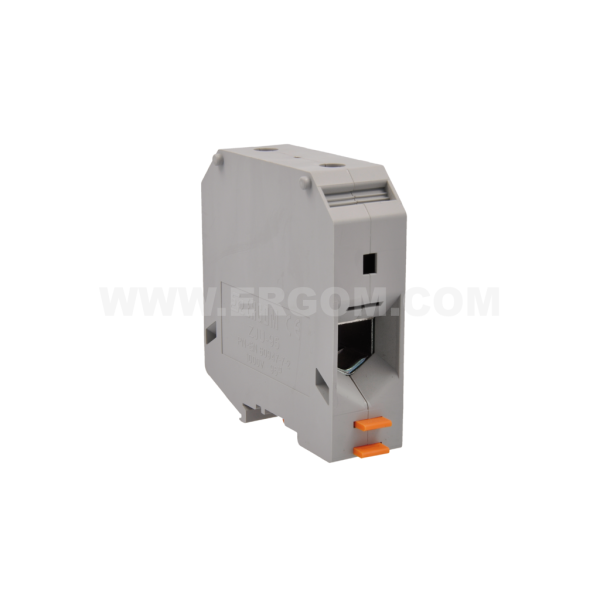

Single-circuit connector, ZJU-95 type: for 95 mm² wires 800V
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| ZJU-95 (5 PCS) R34RR-07010000803 | 5 | 5 | pcs. | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| ZJU-95 | R34RR-07010000803 |
|
sale Warehouse products are shipped from stock; the remaining ones are made to order. | – | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
ZJU-95 (5 PCS) SCREW TERMINAL
Technical data
Certyfikaty normy
| Stopień ochrony | IP20 |
|---|---|
| Klasa palności | UL 94 V0 |
| Normy | EN 60947-7-1 |
Dane mechaniczne
| Body material | polyamide |
|---|---|
| Circuit insulation length [mm] | 27 |
| Colour | grey |
| Terminal crimping shape on cord | trapezoid |
| Wire cross-section (cord) [mm²] | 25÷95 / 35÷95 |
| Nominal cross-section [mm²] | 95 |
| Ambient temperature [°C] | -25 ÷ +55 |
| Marker type | EZU-10 |
| Dimension (H x W x D) [mm] | 83 x 97,5 x 26,8 |
| Recommended tightening torque [Nm] | 15 |
| Recommended screwdriver tip type (hexagonal) | 6 |
Dane elektryczne
| Rated insulation voltage Ui [V] | 800 |
|---|---|
| Constant current [A] | 232 |
| Electric strength [kV] | - |
Guide
No data
Accessories and sets
No data
