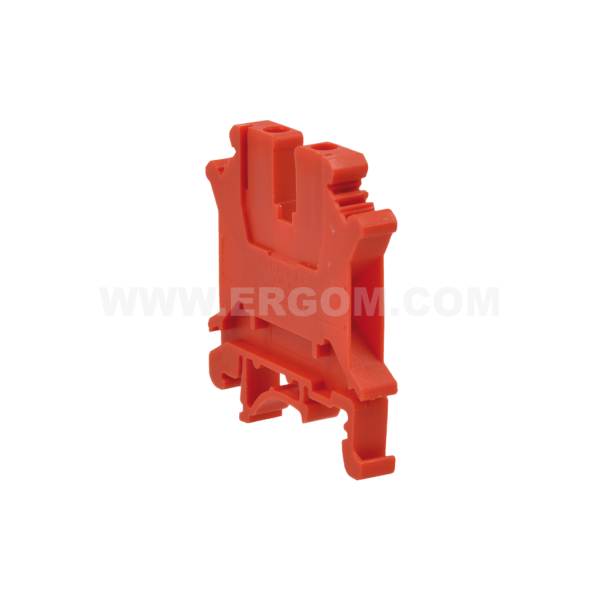

Single-circuit connector, ZJU-6 type: for 6 mm² wires
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| ZJU-6/RD (50 PCS) R34RR-07010000333 | 50 | 50 | pcs. | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| ZJU-6/RD | R34RR-07010000333 |
|
sale Warehouse products are shipped from stock; the remaining ones are made to order. | – | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
ZJU-6/RD (50 PCS) SCREW TERMINAL
Technical data
Certyfikaty normy
| Stopień ochrony | IP00 |
|---|---|
| Klasa palności | UL 94 V0 |
| Normy | EN 60947-7-1 |
Dane mechaniczne
| Body material | polyamide |
|---|---|
| Circuit insulation length [mm] | 8 |
| Colour | red |
| Terminal crimping shape on cord | hexagon |
| Wire cross-section (cord) [mm²] | 0,2÷6 / 0,2÷4 |
| Nominal cross-section [mm²] | 6 |
| Ambient temperature [°C] | -25 ÷ +55 |
| Marker type | EZU-6 |
| Dimension (H x W x D) [mm] | 42,5 x 47 x 8 |
| Recommended tightening torque [Nm] | 0,5 |
| Recommended screwdriver tip type (cross) | PH0 / PZ1 |
| Recommended screwdriver tip type (flat) | 3,5x0,6 |
Dane elektryczne
| Rated insulation voltage Ui [V] | 800 |
|---|---|
| Constant current [A] | 41 |
| Electric strength [kV] | - |
Guide
No data
Accessories and sets
No data
