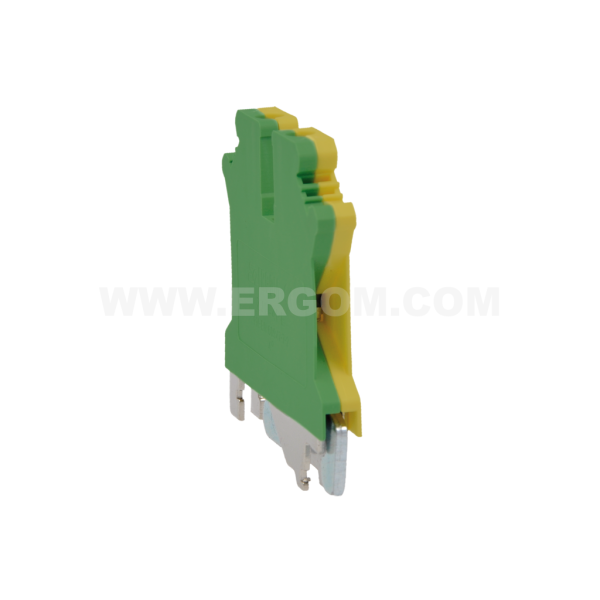

Single-circuit connector, ZJU-4PE type: for 2.5 mm² wires
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| ZJU-4PE (60 PCS) R34RR-07020000203 | 60 | 60 | pcs. | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| ZJU-4PE | R34RR-07020000203 |
|
sale Warehouse products are shipped from stock; the remaining ones are made to order. | – | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
ZJU-4PE (60 PCS) SCREW TERMINAL
Technical data
Certyfikaty normy
| Stopień ochrony | IP00 |
|---|---|
| Klasa palności | UL 94 V0 |
| Normy | EN 60947-7-1 |
Dane mechaniczne
| Body material | polyamide |
|---|---|
| Circuit insulation length [mm] | 8 |
| Colour | yellow-green |
| Terminal crimping shape on cord | hexagon |
| Max. tightening torque (clamp bolt) [Nm] | 0,6 |
| Max. tightening torque (mounting bolt) [Nm] | 0,6 |
| Wire cross-section (cord) [mm²] | 0,2÷4 / 0,2÷2,5 |
| Nominal cross-section [mm²] | 4 |
| Ambient temperature [°C] | -25 ÷ +55 |
| Marker type | EZU-5 |
| Dimension (H x W x D) [mm] | 42,5 x 47 x 5,2 |
| Recommended screwdriver tip type (flat) | 3,5x0,6 |
Dane elektryczne
| Nominal cross-section [mm²] | - |
|---|---|
| Constant current [A] | 32 |
| Electric strength [kV/mm] | - |
