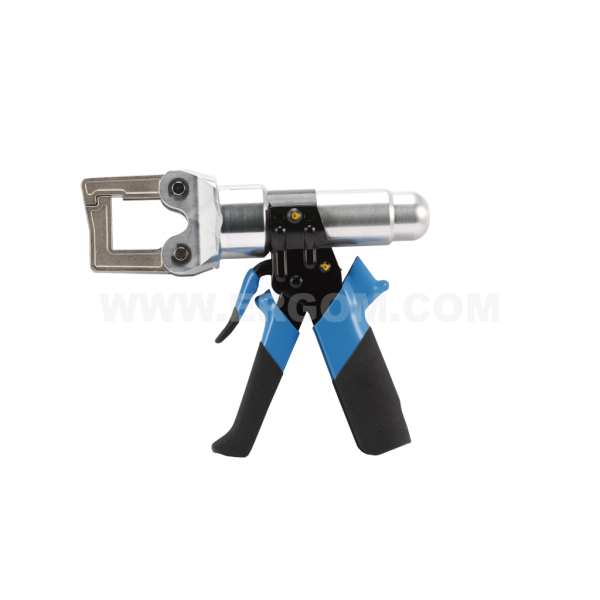

Professional hydraulic crimping tool, HKP 4 D

Professional hydraulic crimping tool, HKP 4 D
Offer Type / Ergom index Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
HKP 4 D E06PZ-05120011301 1 1 pcs. Price on request
Sum:
— net
VAT:
23%
Logistic data Ergom index EAN Stock availability Net weight Delivery time
HKP 4 D E06PZ-05120011301
  • 5900003821624 1 SZT.
 stockable Warehouse products are shipped from stock; the remaining ones are made to order. ~ 0,001 kg 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia.

Features and benefits

No data

Product description

HKP 4 D HYDRAULIC CRIMPING TOOL

Technical data

Dane mechaniczne

Drive manual
Die type HK 4 C
Rotate head angle [deg.] 180
Crimping force [kN] 35
Working pressure [MPa] 70
Piston stroke [mm] 8
Length [mm] 215
Crimping range 6 ÷ 150

The kit

Element set Amount included
Plastic case 1
Instruction manual 1

Clinching

Terminal group Socket code no. Cable cross-section [mm²] Crimping shape Die
Cu DIN
  • 5
  • 6
  • 8
  • 10
  • 12
  • 14
  • 16
  • 18
  • 6
  • 10
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
 hexagon
  • HK4 5
  • HK4 6
  • HK4 8
  • HK4 10
  • HK4 12
  • HK4 14
  • HK4 16
  • HK4 18
Al-c
  • 10
  • 11
  • 12
  • 14
  • 16
  • 18
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
 hexagon
  • HK4 10
  • HK4 11
  • HK4 12
  • HK4 14
  • HK4 16
  • HK4 18
Al-g
  • 13
  • 14
  • 16
  • 18
  • 16
  • 25
  • 35
  • 50
 hexagon
  • HK4 13
  • HK4 14
  • HK4 16
  • HK4 18
Al DIN
  • 10
  • 12
  • 14
  • 16
  • 18
  • 10
  • 16 - 25
  • 35
  • 50
  • 70
 hexagon
  • HK4 10
  • HK4 12
  • HK4 14
  • HK4 16
  • HK4 18
sm –
  • 6
  • 10
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
  • 120
 round forming
  • HK4 S6
  • HK4 S10
  • HK4 S16
  • HK4 S25
  • HK4 S35
  • HK4 S50
  • HK4 S70
  • HK4 S95
  • HK4 S120
se –
  • 35
  • 50
  • 70
  • 95
  • 120
  • 150
 round forming
  • HK4 S25
  • HK4 S35
  • HK4 S50
  • HK4 S70
  • HK4 S95
  • HK4 S120
KO, KW, KI, KOR, KL –
  • 10
  • 16
  • 25
  • 35
 indent
  • HK4 K10
  • HK4 K16
  • HK4 K25
  • HK4 K35
HI 2x –
  • 4
  • 6
  • 10
  • 16
 trapezoid
  • HK4 H10/2H4
  • HK4 2H6
  • HK4 2H10
  • HK4 2H16
Cu EKO - KREo, LE
  • 6
  • 7
  • 9
  • 11
  • 13
  • 15
  • 17
  • 10
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
 hexagon
  • HK4 6
  • HK4 7
  • HK4 9
  • HK4 11
  • HK4 13
  • HK4 15
  • HK4 17
Standard Cu
  • 7
  • 8
  • 10
  • 12
  • 14
  • 16
  • 17
  • 19
  • 10
  • 16
  • 25
  • 35
  • 50
  • 70
  • 95
  • 120
 hexagon
  • HK4 7
  • HK4 8
  • HK4 10
  • HK4 12
  • HK4 14
  • HK4 16
  • HK4 17
  • HK4 19
H...ERHN, HI...ERHL, HIG –
  • 10
  • 16
  • 25
  • 35
  • 50
  • 70
 trapezoid
  • HK4 H10/2H4
  • HK4 H16
  • HK4 H25
  • HK4 H35
  • HK4 H50
  • HK4 H70
KOI, KWI, KII, KLI –
  • 10
  • 16
  • 25
  • 35
  • 70
 oval
  • HK4 I10
  • HK4 I16
  • HK4 I25
  • HK4 I35
  • HK4 I70

Guide

No data

Accessories and sets

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Profesjonalna_praska_hydrauliczna_HKP_4_D _EN.pdf EN 14-05-2025 218.55 KB PDF Download
Catalog card ERGOM_Profesjonalna_praska_hydrauliczna_HKP_4_D _PL.pdf PL 14-05-2025 274.28 KB PDF Download
