Hi, Please log in

Home Products Products Wiring accessories Cable ties TK type Magneto-detection cable ties, TKMD type

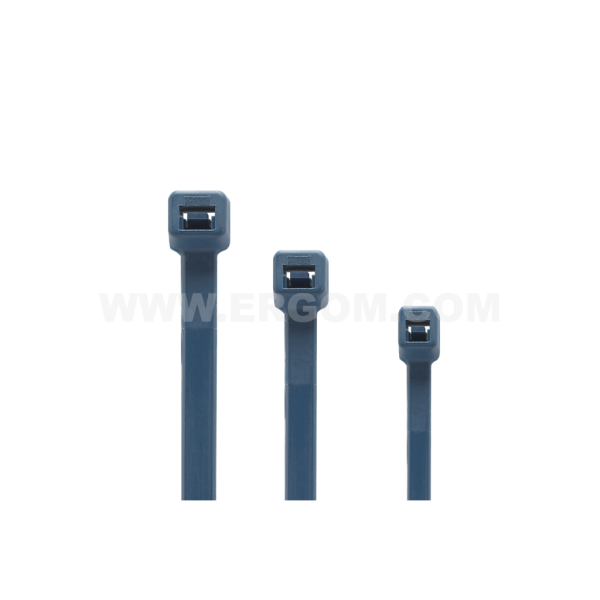

Magneto-detection cable ties, TKMD type

Magneto-detection cable ties, TKMD type

Main data of the product series

Product name: Magneto-detection cable ties, TKMD type
Category: TK type
Material: polyamide 6.6
Operating temperature [°C]: -40 ÷ +85
Colour: blue
Flammability class: HB wg. UL 94

Features and benefits

Product description

-

Offer

Name	Ergom index / your designation	Min. order quantity [uom]	Qty in package	Unit of measure [uom]	Catalogue price net per uom	Quantity [uom]
TKMD 9/3	E01TK-02050100101	5	100	pkt.	Price on request
TKMD 15/3,6	E01TK-02050100201	5	100	pkt.	Price on request
TKMD 20/3,6	E01TK-02050100301	5	100	pkt.	Price on request
TKMD 20/5	E01TK-02050100401	5	100	pkt.	Price on request
TKMD 30/5	E01TK-02050100501	5	100	pkt.	Price on request
TKMD 40/5	E01TK-02050100551	1	100	pkt.	Price on request
TKMD 40/8	E01TK-02050100601	1	100	pkt.	Price on request

Selected lines: 0

Technical data

General data

Material	polyamide 6.6
Halogen-free	yes
Colour	blue
Operating temperature [°C]	-40 ÷ +85
Minimum installation temperature [°C]	0
Klasa palności	HB wg. UL 94
Normy	EN IEC 62275:2019

Name	Tensile strength, min. [daN]	Max. bundle dia. [mm]	Tool type	L	W
TKMD 9/3	8	20	MK IIIA, MK IIIPR	100	2,5
TKMD 15/3,6	18	32	MK IIIA, MK IIIPR	140	3,5
TKMD 20/3,6	18	50	MK IIIA, MK IIIB, MK IIIC, MK IIIPR	200	3,5
TKMD 20/5	22	50	MK IIIA, MK IIIB, MK IIIC, MK IIIPR	200	4,5
TKMD 30/5	22	76	MK IIIA, MK IIIB, MK IIIC, MK IIIPR	290	4,5
TKMD 40/5	22	102	MK IIIA, MK IIIB, MK IIIC, MK IIIPR	360	4,5
TKMD 40/8	54	105	MK IIIB, MK IIIC	370	7,5

Guide

Magneto-detection cable ties, TKMD type — 1.1 - Insert the tip of the tie - insert the end of the cable tie into its lock

Magneto-detection cable ties, TKMD type — 1.2 - Tighten manually the tie till the complete fixing of the cables

Magneto-detection cable ties, TKMD type — 1.3 - Avoid sharp bending of the tie it will not improve the fixing strength

Magneto-detection cable ties, TKMD type — 1.4 - Cut the exceeding part of the tie with the tool, leaving a few mm length as safety

Magneto-detection cable ties, TKMD type — 2.1 - Tightening the cable ties with a tool - set the max tension of the tool depending on the size of the tie

Magneto-detection cable ties, TKMD type — 2.2 - Grip the cable tie with the tool

Magneto-detection cable ties, TKMD type — 2.3 - Tighten the tie till the complete fixing of the cables

Magneto-detection cable ties, TKMD type — 2.4 - Cut the exceeding part of the cable tie, properly adjusting the setting of the tool

Knowledge

No data

Downloads

Type	Name	Language	Updated at	Size	File type
Catalog card	ERGOM_Tasmy_kablowe_magneto_detekcyjne_TKMD_EN.pdf	EN	30-05-2025	338.07 KB	PDF	Download
Catalog card	ERGOM_Tasmy_kablowe_magneto_detekcyjne_TKMD_PL.pdf	PL	30-05-2025	354.32 KB	PDF	Download
