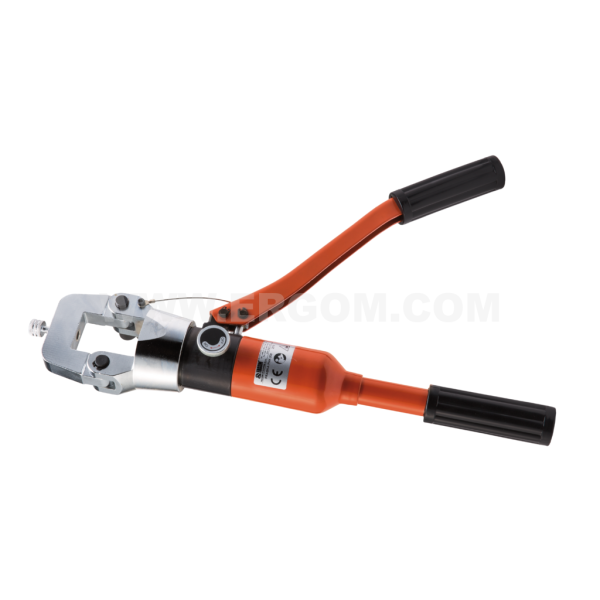

Hydraulic crimping tool, PHK-300
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| PHK-300 E06PZ-05060800100 | 1 | 1 | pcs. | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| PHK-300 | E06PZ-05060800100 |
|
stockable Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 7,757 kg | Contact with BOK Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
PHK-300 HYDRAULIC CRIMPING TOOL
Technical data
Dane mechaniczne
| Drive | manual |
|---|---|
| Crimping force [kN] | 130 |
| Working pressure [MPa] | 70 |
| Piston stroke [mm] | 13 |
| Length [mm] | 490 |
| Crimping range | 10 ÷ 300 |
The kit
| Index | Element set | Amount included | Additional description |
|---|---|---|---|
| PHK_8 | PHK-8 | 1 | Die |
| PHK_10 | PHK-10 | 1 | Die |
| PHK_11 | PHK-11 | 1 | Die |
| PHK_12 | PHK-12 | 1 | Die |
| PHK_14 | PHK-14 | 1 | Die |
| PHK_16 | PHK-16 | 1 | Die |
| PHK_17 | PHK-17 | 1 | Die |
| PHK_18 | PHK-18 | 1 | Die |
| PHK_19 | PHK-19 | 1 | Die |
| – | Instruction manual | 1 | – |
| – | Plastic case | 1 | – |
Clinching
| Terminal group | Socket code no. | Cable cross-section [mm²] | Crimping shape | Die |
|---|---|---|---|---|
| Cu DIN |
|
|
hexagon |
|
| Al-c |
|
|
hexagon |
|
| Al-g |
|
|
hexagon |
|
| Al DIN |
|
|
hexagon |
|
| Al-Cu |
|
|
hexagon |
|
| Cu EKO - KREo, LE |
|
|
hexagon |
|
| Standard Cu |
|
|
hexagon |
|
