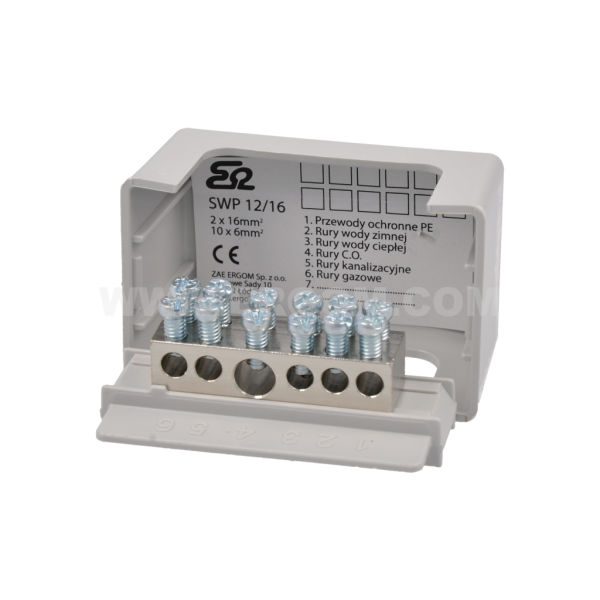

Equipotential bonding rail, SWP 12/16
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| SWP 12/16 R33RA-04040100301 | 1 | 1 | pcs. | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| SWP 12/16 | R33RA-04040100301 |
|
stockable Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 0,085 kg | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
SWP 12/16 POTENTIAL EQUAL. BUSBAR
Technical data
Certyfikaty normy
| Normy | EN 60947-7-2; RoHS |
|---|
Dane mechaniczne
| Colour | grey |
|---|---|
| Cover material | polyamide 6.6 |
| Bolt material | galvanised steel |
| Clamp material | brass |
| Stand material | polyamide 6.6 |
| Terminal crimping shape on cord | hexagon |
| Recommended tightening torque [Nm] | 1,4; 2,6 |
| Mounting hole spacing [mm] | Ø4,9 |
| Ambient temperature [°C] | -40 ÷ +110 |
| Circuit insulation length [mm] | 7÷14 |
Wymiary
| L | 42 |
|---|---|
| S | 40 |
| W | 31 |
| D | 64 |
Dane elektryczne
| Number of clamps x cross-section [mm²] | 2x16/25 (linka/drut), 10x6/10 (linka/drut) |
|---|
