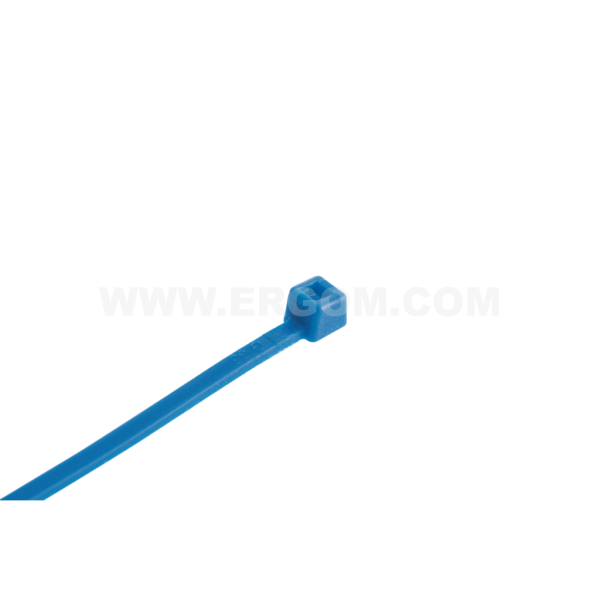

Cable tie TKTE 9/3

Cable tie TKTE 9/3
Offer Type / Ergom index Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
TKTE 9/3 (100 PCS) E01TK-01100100101 1 100 pkt. Price on request
Sum:
— net
VAT:
23%
Logistic data Ergom index EAN Stock availability Net weight Delivery time
TKTE 9/3 E01TK-01100100101
  • 5900003000951 1 OPAK.
 on request Warehouse products are shipped from stock; the remaining ones are made to order. ~ 0,047 kg 36 Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia.

Features and benefits

No data

Product description

TKTE 9/3 (100 PCS) CABLE TIE

Technical data

Certyfikaty normy

Klasa palności UL 94 V0
Normy EN IEC 62275:2019

Dane mechaniczne

Material TEFZEL™ 280
Colour blue
Operating temperature [°C] -45 ÷ +150
Tensile strength, min. [daN] 8
Max. bundle dia. [mm] 22
Tool type MK III A, MK III PR

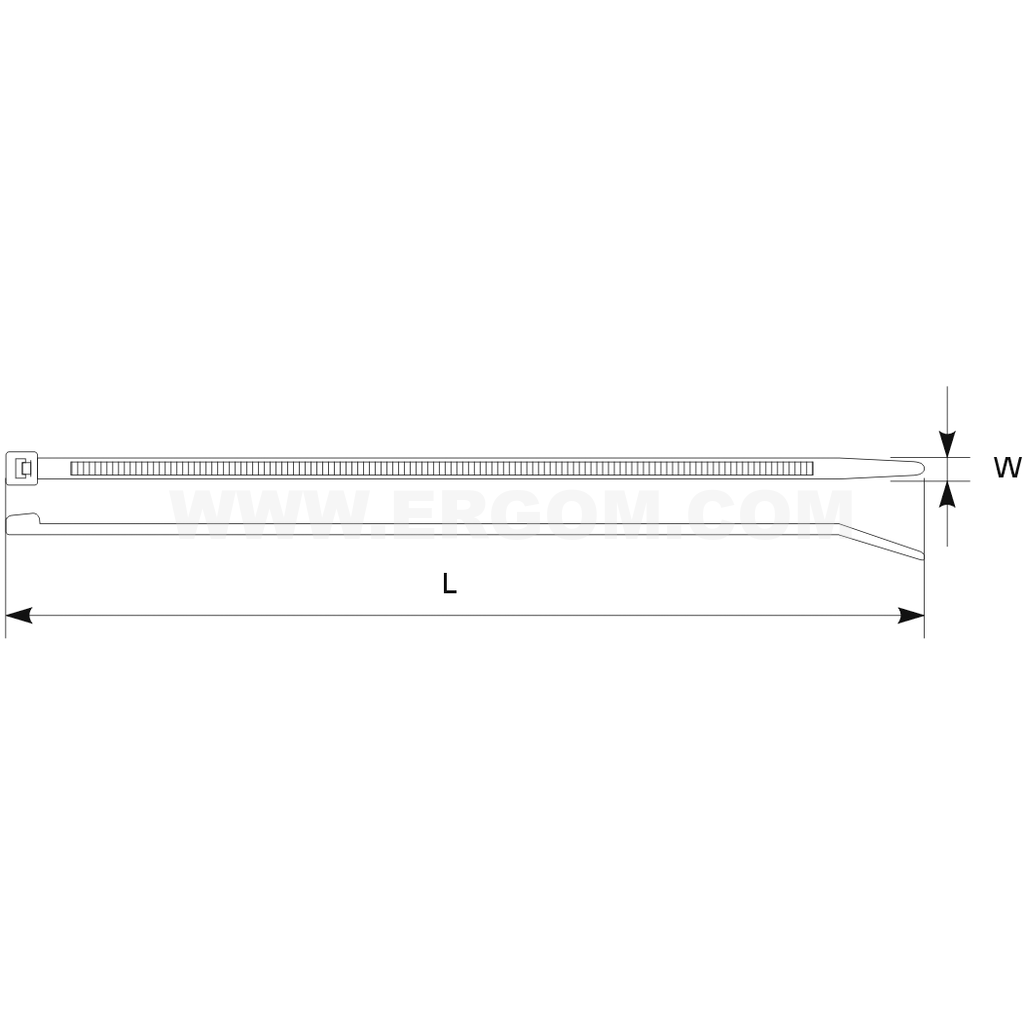

Wymiary

L 102
W 2,5

Guide

TKTE 9/3 (100 PCS)
1.1 - Insert the tip of the tie - insert the end of the cable tie into its lock
TKTE 9/3 (100 PCS)
1.2 - Tighten manually the tie till the complete fixing of the cables
TKTE 9/3 (100 PCS)
1.3 - Avoid sharp bending of the tie it will not improve the fixing strength
TKTE 9/3 (100 PCS)
1.4 - Cut the exceeding part of the tie with the tool, leaving a few mm length as safety
TKTE 9/3 (100 PCS)
2.1 - Tightening the cable ties with a tool - set the max tension of the tool depending on the size of the tie
TKTE 9/3 (100 PCS)
2.2 - Grip the cable tie with the tool
TKTE 9/3 (100 PCS)
2.3 - Tighten the tie till the complete fixing of the cables
TKTE 9/3 (100 PCS)
2.4 - Cut the exceeding part of the cable tie, properly adjusting the setting of the tool

Accessories and sets

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Tasmy_kablowe_typu_TKTE_EN.pdf EN 16-07-2025 204.35 KB PDF Download
Catalog card ERGOM_Tasmy_kablowe_typu_TKTE_PL.pdf PL 16-07-2025 216.53 KB PDF Download
