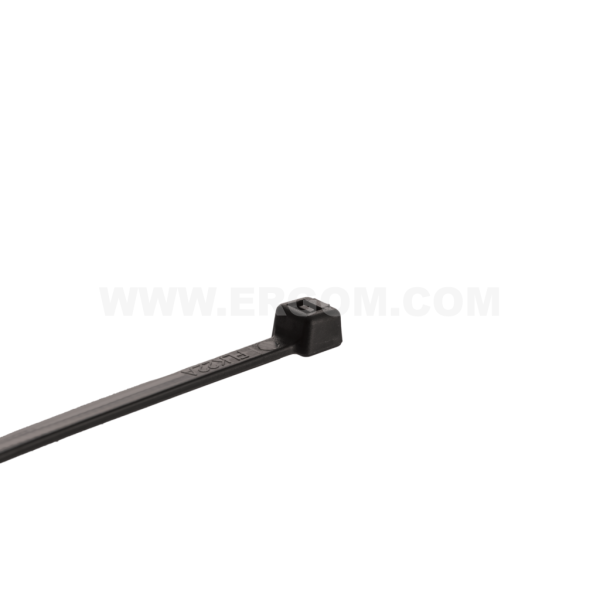

Cable ties, TK ... BK type - TK 20/3,6 BK (100 PCS)

Cable ties, TK ... BK type - TK 20/3,6 BK (100 PCS)
show series of types >
Offer Type / Ergom index Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
TK 20/3,6 BK (100 PCS) E01TK-01020100801 5 100 pkt. Price on request
Sum:
— net
VAT:
23%
Logistic data Ergom index EAN Stock availability Net weight Delivery time
TK 20/3,6 BK E01TK-01020100801
  • 5900003532469 1 OPAK.
  • 5900003621392 200 OPAK.
 stockable Warehouse products are shipped from stock; the remaining ones are made to order. ~ 0,107 kg 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia.

Features and benefits

No data

Product description

TK 20/3,6 BK (100 PCS) CABLE TIE

Technical data

Certyfikaty normy

Klasa palności UL 94 V2
Normy EN IEC 62275:2019 EN 45545-2 +A1 For the GiG certificate: PN-EN IEC 60079-0:2018-09 PN-EN 1127-2:2014-08 IEC/TS 60079-32-1:2013-08

Dane mechaniczne

Material polyamide 6.6
Halogen-free yes
Colour black
Operating temperature [°C] -40 ÷ +85
Minimum installation temperature [°C] 0
Tensile strength, min. [daN] 18
Max. bundle dia. [mm] 46,0
Tool type MK III A, MK III B, MK III C, MK III PR

Sizes

L 200
W 3,6

Guide

TK 20/3,6 BK (100 PCS)
1.1 - Insert the tip of the tie - insert the end of the cable tie into its lock
TK 20/3,6 BK (100 PCS)
1.2 - Tighten manually the tie till the complete fixing of the cables
TK 20/3,6 BK (100 PCS)
1.3 - Avoid sharp bending of the tie it will not improve the fixing strength
TK 20/3,6 BK (100 PCS)
1.4 - Cut the exceeding part of the tie with the tool, leaving a few mm length as safety
TK 20/3,6 BK (100 PCS)
2.1 - Tightening the cable ties with a tool - set the max tension of the tool depending on the size of the tie
TK 20/3,6 BK (100 PCS)
2.2 - Grip the cable tie with the tool
TK 20/3,6 BK (100 PCS)
2.3 - Tighten the tie till the complete fixing of the cables
TK 20/3,6 BK (100 PCS)
2.4 - Cut the exceeding part of the cable tie, properly adjusting the setting of the tool

Accessories and sets

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Tasmy_kablowe_TK_BK_EN.pdf EN 30-05-2025 356.97 KB PDF Download
Catalog card ERGOM_Tasmy_kablowe_TK_BK_PL.pdf PL 30-05-2025 374.87 KB PDF Download
