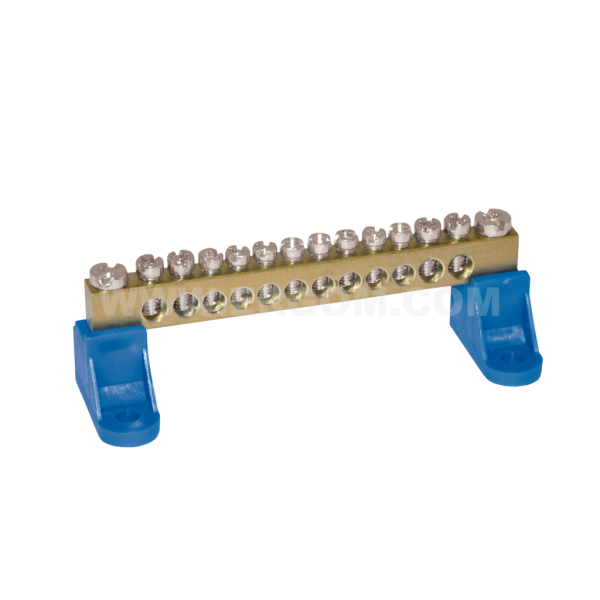

Brass protective ground terminals, MZO-P 8x4/4x10 type, mounted to the base through insulation element
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| MZO-P 8x4/4x10 (10 PCS) R33RA-01010104600 | 10 | 10 | pcs. | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| MZO-P 12/10 | R33RA-01010104600 |
|
stockable Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 0,988 kg | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
MZO-P 8x4/4x10 (10 PCS) PROTECTION CLAMP
Technical data
Certyfikaty normy
| Normy | EN 60947-7-2; RoHS |
|---|
Dane mechaniczne
| Bolt material | galvanised steel |
|---|---|
| Clamp material | brass |
| Stand material | polyamide 6.6 |
| Recommended screwdriver tip type (flat) | 3,5/0,6; 4/0,8 |
| Recommended screwdriver tip type (cross) | PH1/PZ1 |
| Terminal crimping shape on cord | hexagon |
| Recommended tightening torque [Nm] | 0,7; 1,1 |
Dane elektryczne
| Number of clamps x cross-section [mm²] | 8x4; 4x10 |
|---|
The kit
| Index | Element set | Amount included | Additional description |
|---|---|---|---|
| R33RA-01010104201 | MZO 8x4/4x10 (10 PCS) | 1 | Protection clamp |
| – | MZO-P | 2 | Mounting stand |
| – | Installation c-parts (set) | 1 | – |
