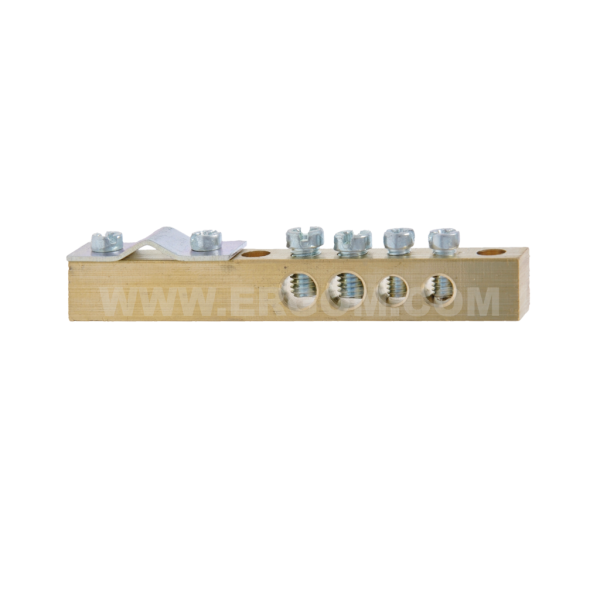

Brass protective ground terminals, MZO 2x10/2x16/35 type, mounted directly to the base
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| MZO 2x10/2x16/35 (10 PCS) R33RA-01010104191 | 10 | 10 | pcs. | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| MZO 2x10/2x16/35 | R33RA-01010104191 |
|
sale Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 0,443 kg | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
MZO 2x10/2x16/35 (10 PCS) PROTECTION CLAMP
Technical data
Certyfikaty normy
| Normy | EN 60947-7-2; RoHS |
|---|
Dane mechaniczne
| Bolt material | galvanised steel |
|---|---|
| Clamp material | brass |
| Recommended screwdriver tip type (flat) | 4/0,8; 5,5/1; 4/0,8 |
| Recommended screwdriver tip type (cross) | PH1/PZ1, PH2/PZ2, PH1/PZ1 |
| Terminal crimping shape on cord | hexagon |
| Recommended tightening torque [Nm] | 1,1; 1,9; 1,1 |
Dane elektryczne
| Number of clamps x cross-section [mm²] | 2x10, 2x16, 1x35 |
|---|
