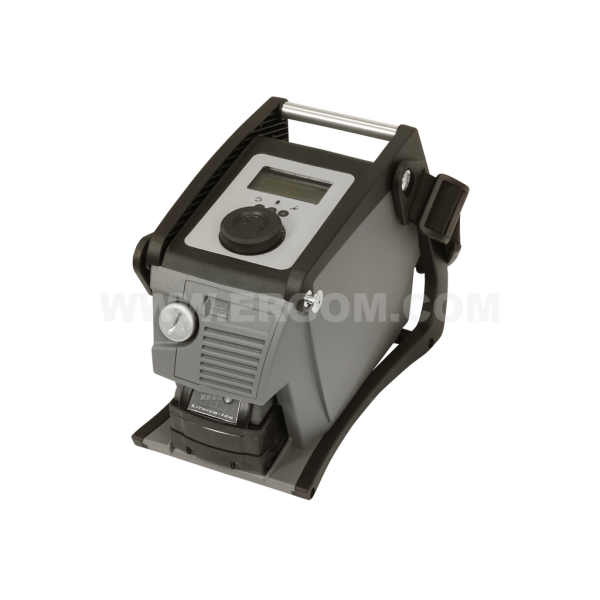

Battery-powered professional hydraulic pump, HE 703 Compact
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| HE 703 COMPACT E06PH-01050001051 | 1 | 1 | pcs. | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| HE 703 COMPACT | E06PH-01050001051 |
|
stockable Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 0,001 kg | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
Technical data
Dane mechaniczne
| Oil container capacity [l] | 0,75 |
|---|---|
| Maximum operating pressure [MPa] | 70 |
| Minimum Operating Pressure [MPa] | 2 |
| Drive | electrical (battery) |
| Hydraulic hose length [m] | 1,5 |
| Number of hydraulic system stages | 2 |
| Efficiency, 1st stage [l/min] | 1,5 ÷ 1,7 |
| Efficiency, 2nd stage [l/min] | 0,3 ÷ 0,5 |
| Coupler type | 115 Series COUPLING 3/8” NPT MALE NBR |
Wymiary
| Dimension [mm] | 300x210x195 |
|---|
Dane elektryczne
| Battery charging time [min] | 60 |
|---|---|
| Number of crimps from one battery charge [pcs] | approx. 200 for 150 mm² Cu standard (approximate value depends on the type of wire and tip, ambient temperature, etc.) |
| Battery voltage [V] | 18 |
| Battery capacity [mAh] | 3000 |
The kit
| Index | Element set | Amount included | Additional description |
|---|---|---|---|
| – | Hydraulic hose | 1 | – |
| – | Remote controller | 1 | – |
| E06PZ-05160005201 | HE3 - BA4 - 3Ah | 2 | Battery |
| E06PZ-05160005301 | MEL-HE3 - CHA5 | 1 | Charger |
| – | Instruction manual | 1 | – |
| – | USB cable | 1 | – |
| – | PC software | 1 | – |
| – | Bag | 1 | – |
