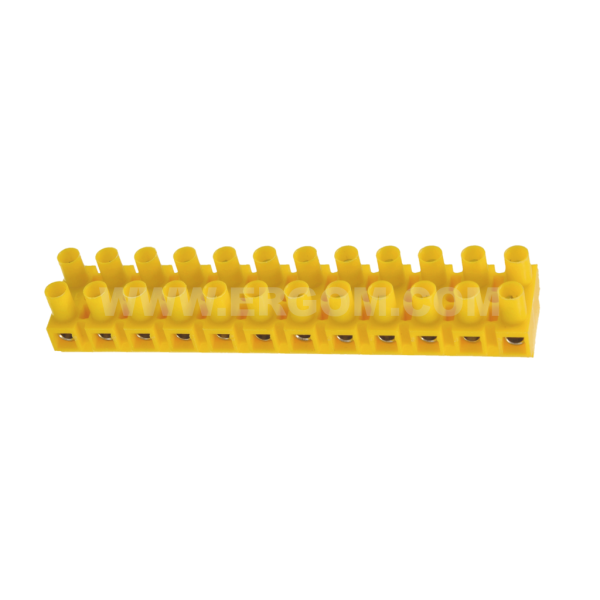

12-circuit screw connectors for 16 mm² wires, TLZ 12
| Offer Type / Ergom index | Min. order quantity [uom] | Qty in package | Unit of measure [uom] | Catalogue price net per uom | Quantity [uom] |
|---|---|---|---|---|---|
| TLZ 4 (70 PCS) R35RW-01010400103 | 70 | 70 | pcs. | Price on request |
|
- Sum:
- — net
- VAT:
- 23%
| Logistic data | Ergom index | EAN | Stock availability | Net weight | Delivery time |
|---|---|---|---|---|---|
| TLZ 4 | R35RW-01010400103 |
|
stockable Warehouse products are shipped from stock; the remaining ones are made to order. | ~ 0,010 kg | 24h Dotyczy dni roboczych. Ostateczny czas realizacji będzie podany w potwierdzeniu zamówienia. |
Features and benefits
No data
Product description
TLZ 4 (70 PCS) SCREW TERMINAL
Technical data
Certyfikaty normy
| Normy | EN IEC 60947-7-1 |
|---|
Dane mechaniczne
| Colour | yellow |
|---|---|
| Insulation material | polyamide |
| Screw material | stal ocynkowana |
| Connector material | mosiądz |
| Recommended tightening torque [Nm] | 0,8 |
| Ambient temperature [°C] | -25 ÷ +100 |
Dane elektryczne
| Circuit insulation length [mm] | 6,5 |
|---|---|
| Insulation voltage [V] | 690 |
| Constant current [A] | 32 |
| Nominal cross-section [mm²] | 4 |
| Wire cross-section (cord) [mm²] | 0,75÷4 |
