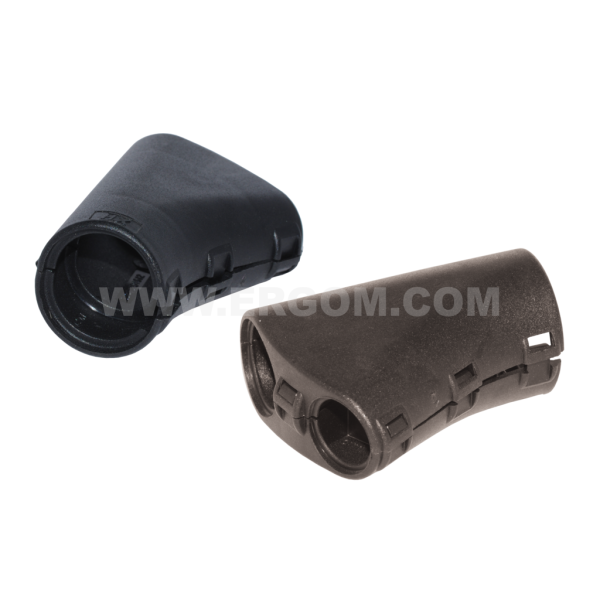

Y- branch, LR type

Y- branch, LR type

Main data of the product series

Product name
Y- branch, LR type
Category
Accessories for corrugated conduits made of polyamide
Operating temperature [°C]
-40 ÷ +120
Material
polyamide 6.6
Colour
black
IP degree of protection
IP40
Note!
Conduit external diameters in mm, corresponding to the A, B, C dimensions acc. to the PG, are given in the table at the LRS conduit-and-box connection.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
LR 7/7/7 E03DK-07010600101 10 10 pcs. Price on request
LR 9/7/7 E03DK-07010600201 10 10 pcs. Price on request
LR 9/9/7 E03DK-07010600301 10 10 pcs. Price on request
LR 9/9/9 E03DK-07010600401 10 10 pcs. Price on request
LR 11/9/7 E03DK-07010600501 10 10 pcs. Price on request
LR 11/9/9 E03DK-07010600601 10 10 pcs. Price on request
LR 11/11/7 E03DK-07010600701 10 10 pcs. Price on request
LR 11/11/9 E03DK-07010600801 10 10 pcs. Price on request
LR 16/7/7 E03DK-07010600901 10 10 pcs. Price on request
LR 16/9/7 E03DK-07010601001 10 10 pcs. Price on request
LR 16/9/9 E03DK-07010601101 10 10 pcs. Price on request
LR 16/11/7 E03DK-07010601201 10 10 pcs. Price on request
LR 16/11/9 E03DK-07010601301 10 10 pcs. Price on request
LR 16/16/7 E03DK-07010601401 10 10 pcs. Price on request
LR 16/16/9 E03DK-07010601501 10 10 pcs. Price on request
LR 16/16/11 E03DK-07010601601 10 10 pcs. Price on request
LR 21/16/9 E03DK-07010601701 10 10 pcs. Price on request
LR 21/16/11 E03DK-07010601801 10 10 pcs. Price on request
LR 21/21/9 E03DK-07010601901 10 10 pcs. Price on request
LR 21/21/11 E03DK-07010602001 10 10 pcs. Price on request
LR 21/21/16 E03DK-07010602101 10 10 pcs. Price on request
LR 21/21/21 E03DK-07010602201 10 10 pcs. Price on request
LR 29/29/11 E03DK-07010602301 10 10 pcs. Price on request
LR 29/29/16 E03DK-07010602401 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material polyamide 6.6
Halogen-free yes
Operating temperature [°C] -40 ÷ +120
Colour black
Stopień ochrony IP40
Name Tube type A Tube type B Tube type C L H
LR 7/7/7 WTE 7 WTE 7 WTE 7 54,6 37,1
LR 9/7/7 WTE 9 WTE 7 WTE 7 54,6 37,1
LR 9/9/7 WTE 9 WTE 9 WTE 7 54,6 37,1
LR 9/9/9 WTE 9 WTE 9 WTE 9 54,6 37,1
LR 11/9/7 WTE 11 WTE 9 WTE 7 54,6 39,8
LR 11/9/9 WTE 11 WTE 9 WTE 9 54,6 39,8
LR 11/11/7 WTE 11 WTE 11 WTE 7 54,6 39,8
LR 11/11/9 WTE 11 WTE 11 WTE 9 54,6 39,8
LR 16/7/7 WTE 16 WTE 7 WTE 7 42,8 41,0
LR 16/9/7 WTE 16 WTE 9 WTE 7 42,8 41,0
LR 16/9/9 WTE 16 WTE 9 WTE 9 42,8 41,0
LR 16/11/7 WTE 16 WTE 11 WTE 7 48,2 39,6
LR 16/11/9 WTE 16 WTE 11 WTE 9 48,2 39,6
LR 16/16/7 WTE 16 WTE 16 WTE 7 57,9 44,9
LR 16/16/9 WTE 16 WTE 16 WTE 9 57,9 44,9
LR 16/16/11 WTE 16 WTE 16 WTE 11 63,6 47,5
LR 21/16/9 WTE 21 WTE 16 WTE 9 54,0 48,8
LR 21/16/11 WTE 21 WTE 16 WTE 11 54,0 48,8
LR 21/21/9 WTE 21 WTE 21 WTE 9 67,3 55,9
LR 21/21/11 WTE 21 WTE 21 WTE 11 67,3 55,9
LR 21/21/16 WTE 21 WTE 21 WTE 16 77,0 60,2
LR 21/21/21 WTE 21 WTE 21 WTE 21 90,7 67,0
LR 29/29/11 WTE 29 WTE 29 WTE 11 100,6 75,0
LR 29/29/16 WTE 29 WTE 29 WTE 16 100,6 76,0

Guide

Y- branch, LR type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Lacznik_rozgaleznik_typu_LR_EN.pdf EN 14-05-2025 270.11 KB PDF Download
Catalog card ERGOM_Lacznik_rozgaleznik_typu_LR_PL.pdf PL 14-05-2025 278.92 KB PDF Download
