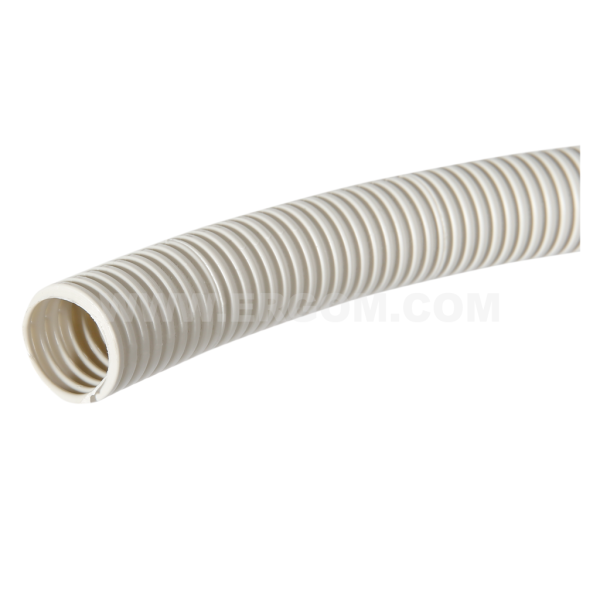

Very flexible corrugated conduits, RKR type

Very flexible corrugated conduits, RKR type

Main data of the product series

Product name
Very flexible corrugated conduits, RKR type
Category
Conduits and holders
Material
modified polyethylene. Halogen free; RoHS
Note!
RKR tubes are fastened to enclosures with URE clips together with WUR brackets (picture 1) or FD type fittings/glands together with WUD and WUR brackets (picture 2).

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
RKR 16 E03DK-09020400500 25 25 m. Price on request
RKR 29 E03DK-09020400700 25 25 m. Price on request
RKR 36 E03DK-09020400800 25 25 m. Price on request
RKR 48 E03DK-09020400900 25 25 m. Price on request
RKR 16/5 E03DK-09020402500 5 5 m. Price on request
RKR 29/5 E03DK-09020402700 5 5 m. Price on request
RKR 36/5 E03DK-09020402800 5 5 m. Price on request
RKR 48/5 E03DK-09020402900 5 5 m. Price on request

Selected lines: 0

Technical data

General data

Colour grey RAL 7035
Material modified polyethylene. Halogen free; RoHS
Operating temp. [°C] -5 ÷ +70
Klasa palności UL 94 HB
Normy EN 61386
Name Min. bending radius [mm] Inside diameter [mm] Outside diameter [mm]
RKR 16 45 16,8 21,2
RKR 29 60 27,9 34,5
RKR 36 65 35,2 42,5
RKR 48 75 46,9 54,5
RKR 16/5 45 16,8 21,2
RKR 29/5 60 27,9 34,5
RKR 36/5 65 35,2 42,5
RKR 48/5 75 46,9 54,5

Guide

Very flexible corrugated conduits, RKR type

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Rury_karbowane_bardzo_elastyczne_typ_RKR_EN.pdf EN 16-07-2025 221.13 KB PDF Download
Catalog card ERGOM_Rury_karbowane_bardzo_elastyczne_typ_RKR_PL.pdf PL 16-07-2025 219.07 KB PDF Download
