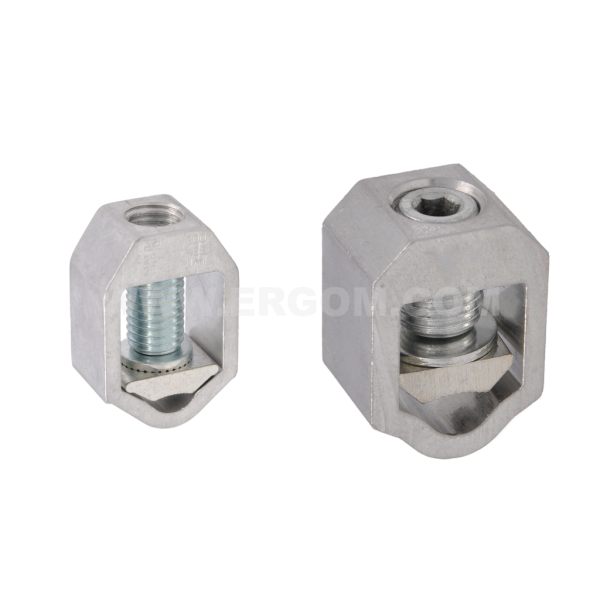

V-clamps with standard screws

V-clamps with standard screws

Main data of the product series

Product name
V-clamps with standard screws
Category
V-clamps
Material
Body: aluminum alloy (AlMgSi) Clamp: galvanized bress Screw: galvanized steel Washer: galvanized spring steel
Standards
EN 60947-7-1 (IEC 60947-7-1)

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
V 120 R32RZ-03010100103 12 12 pcs. Price on request
VN 300 (16-300) R32RZ-03010100403 12 12 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Body: aluminum alloy (AlMgSi) Clamp: galvanized bress Screw: galvanized steel Washer: galvanized spring steel
Normy EN 60947-7-1 (IEC 60947-7-1)
Name Nominal cross-section, rm [mm2] Cross-section, re [mm²] Cross-section, sm [mm²] Cross-section, se [mm²] Tightening torque [Nm] Nominal cross-section [mm²] b h l
V 120 16÷95 16÷95 25÷120 25÷120 20 120 28 38 21
VN 300 (16-300) 16÷185 16÷240 25÷240 25÷300 25÷30 300 35 51 22

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Zaciski_typu_V_ze_srubami_zwyklymi_EN.pdf EN 15-05-2025 264.14 KB PDF Download
Catalog card ERGOM_Zaciski_typu_V_ze_srubami_zwyklymi_PL.pdf PL 05-09-2025 281.38 KB PDF Download
