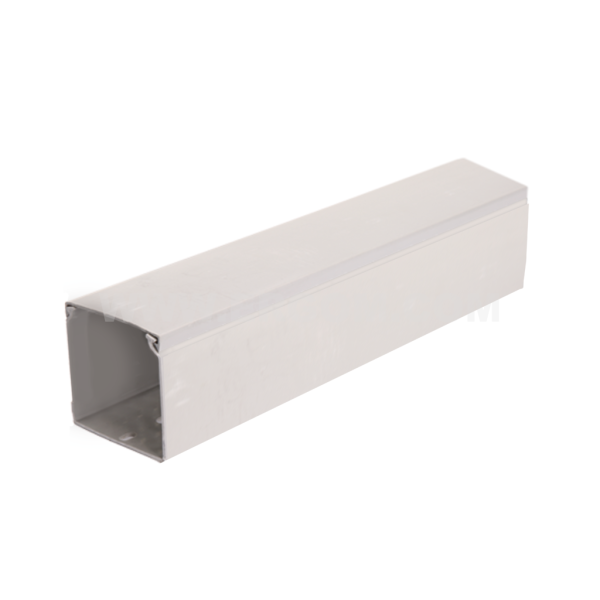

Unslotted trunking, KN type

Unslotted trunking, KN type

Main data of the product series

Product name
Unslotted trunking, KN type
Category
Non-perforated
Operating temperature [°C]
-20 ÷ +60
Standards
EN 50085-1; EN 50085-2-3
Flammability class
UL 94 V0

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KN 15X17/2 E02KK-02010100101 1 1 pcs. Price on request
KN 20X10/2 E02KK-02010100201 1 1 pcs. Price on request
KN 25X80/2 E02KK-02010100701 1 1 pcs. Price on request
KN 30X10/2 E02KK-02010100801 1 1 pcs. Price on request
KN 40X10/2 E02KK-02010100901 1 1 pcs. Price on request
KN 40X80/2 E02KK-02010101401 1 1 pcs. Price on request
KN 40X100/2 E02KK-02010101421 1 1 pcs. Price on request
KN 60X17/2 E02KK-02010101501 1 1 pcs. Price on request
KN 80X100/2 E02KK-02010102121 1 1 pcs. Price on request
KN 100X40/2 E02KK-02010102201 1 1 pcs. Price on request
KN 120X60/2 E02KK-02010102701 1 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material PCV
Operating temperature [°C] -20 ÷ +60
Colour white (RAL 9001)
Shock resistance IK 08 (5J)
Number of separators [pcs] 2
Length [m] 2
Stopień ochrony IP40
Klasa palności UL 94 V0
Normy EN 50085-1; EN 50085-2-3
Name B H
KN 15X17/2 15 17
KN 20X10/2 20 10
KN 25X80/2 25 80
KN 30X10/2 30 10
KN 40X10/2 40 10
KN 40X80/2 40 80
KN 40X100/2 40 100
KN 60X17/2 60 17
KN 80X100/2 80 100
KN 100X40/2 100 40
KN 120X60/2 120 60

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Korytka_kablowe_nieperforowane_typu_KN_EN.pdf EN 14-05-2025 207.81 KB PDF Download
Catalog card ERGOM_Korytka_kablowe_nieperforowane_typu_KN_PL.pdf PL 14-05-2025 229.32 KB PDF Download
