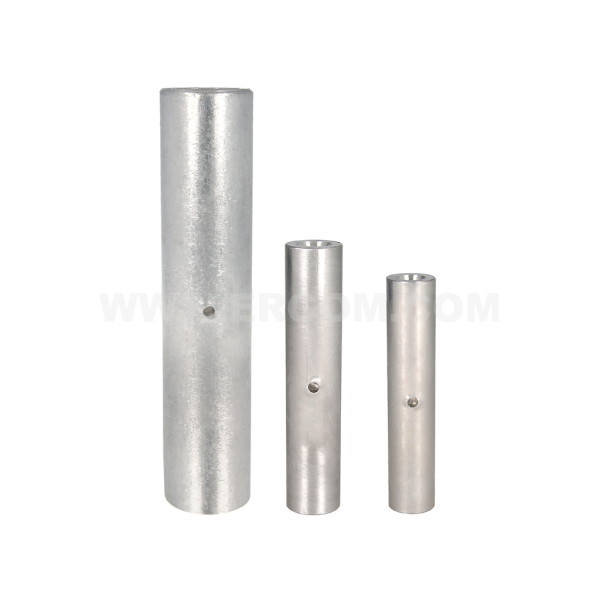

Tubular thick-walled cable connectors, KLA type

Tubular thick-walled cable connectors, KLA type

Main data of the product series

Product name
Tubular thick-walled cable connectors, KLA type
Category
Connectors
Surface
uncoated
Material
Al
Note!
Sector shaped conductors (sm) must be rounded with special dies. SK-AL contact grease is available separately in a 75 ml tube or a 750 ml container.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KLA 16 E12KA-01060100100 100 100 pcs. Price on request
KLA 25 E12KA-01060100200 100 100 pcs. Price on request
KLA 70 E12KA-01060100500 100 100 pcs. Price on request
KLA 120 E12KA-01060100700 50 50 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Al
Surface uncoated
Wykonanie thick-walled
Name d D L Cross-section, rm/sm [mm²] Cross-section, re/se [mm²] Nr gniazda - 2 klasa (RM/RMC) Number of crimping - wide Number of crimping - narrow
KLA 16 5,2 12,6 62 16 25 13 2-2 4-4
KLA 25 6,4 13,8 68 25 35 14 2-2 4-4
KLA 70 10,6 20,2 96 70 95 20 3-3 6-6
KLA 120 13,8 25,8 120 120 150 25 3-3 7-7

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Laczniki_rurowe_gruboscienne_typu_KLA_EN.pdf EN 05-09-2025 365.59 KB PDF Download
Catalog card ERGOM_Laczniki_rurowe_gruboscienne_typu_KLA_PL.pdf PL 05-09-2025 406.58 KB PDF Download
