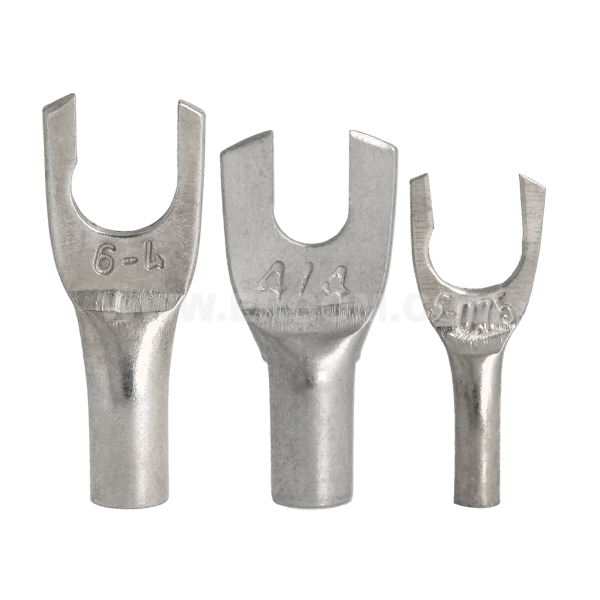

Tubular spade cable lugs, KWR type

Tubular spade cable lugs, KWR type

Main data of the product series

Product name
Tubular spade cable lugs, KWR type
Category
Fork
Surface
tin-plated
Material
Cu
Note!
Sector-shaped conductors (sm) must be rounded with special dies. For crimping cable lugs on cables of 5 class conductors (from cross-section of 10 mm²), we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KWR 0,75/4 E11KM-01030100200 1 100 pkt. Price on request
KWR 0,75/5 E11KM-01030100300 1 100 pkt. Price on request
KWR 4/4 E11KM-01030101300 1 100 pkt. Price on request
KWR 4/6 E11KM-01030101500 1 100 pkt. Price on request
KWR 10/5 E11KM-01030102200 100 100 pcs. Price on request
KWR 10/6 E11KM-01030102300 100 100 pcs. Price on request
KWR 10/8 E11KM-01030102400 100 100 pcs. Price on request
KWR 10/10 E11KM-01030102500 100 100 pcs. Price on request
KWR 16/5 E11KM-01030102600 100 100 pcs. Price on request
KWR 16/6 E11KM-01030102700 100 100 pcs. Price on request
KWR 16/8 E11KM-01030102800 100 100 pcs. Price on request
KWR 16/10 E11KM-01030102900 100 100 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Number of crimping - narrow 1
Wykonanie standard
Name Screw hole d D a E W Cross-section, rm/sm [mm²] Socket code no. - 2 class Socket code no. - 5 class Number of crimping - wide
KWR 0,75/4 M4 1,3 2,8 6 13,0 6,5 0,75 - - -
KWR 0,75/5 M5 1,3 2,8 6 15,0 7,5 0,75 - - -
KWR 4/4 M4 3,0 5,0 8 17,0 8,5 4 - - -
KWR 4/6 M6 3,0 5,0 8 19,0 10,0 4 - - -
KWR 10/5 M5 4,5 7,0 10 21,0 12,0 10 7 FL10 1
KWR 10/6 M6 4,5 7,0 10 21,5 12,0 10 7 FL10 1
KWR 10/8 M8 4,5 7,0 10 23,5 15,0 10 7 FL10 1
KWR 10/10 M10 4,5 7,0 10 25,5 17,0 10 7 FL10 1
KWR 16/5 M5 5,5 8,5 13 25,0 12,0 16 8 FL16 1
KWR 16/6 M6 5,5 8,5 13 25,5 12,0 16 8 FL16 1
KWR 16/8 M8 5,5 8,5 13 27,5 15,0 16 8 FL16 1
KWR 16/10 M10 5,5 8,5 13 29,5 17,0 16 8 FL16 1

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_widelkowe_rurowe_typu_KWR_EN.pdf EN 07-08-2025 294.14 KB PDF Download
Catalog card ERGOM_Koncowki_widelkowe_rurowe_typu_KWR_PL.pdf PL 07-08-2025 334.49 KB PDF Download
