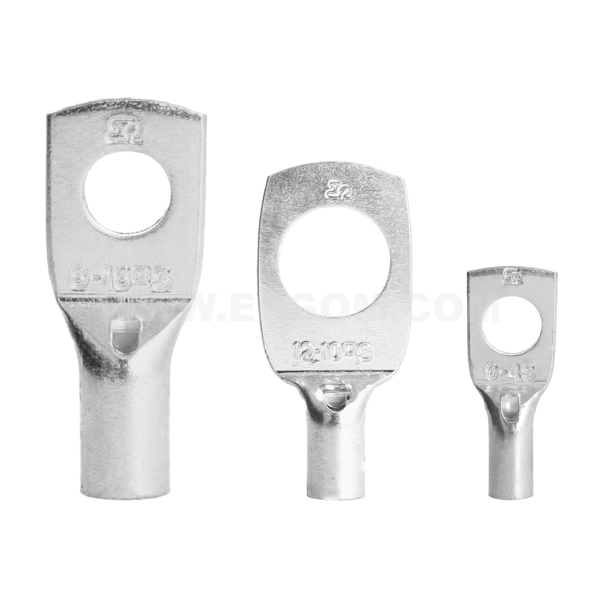

Tubular ring cable lugs with inspection hole, KORo type

Tubular ring cable lugs with inspection hole, KORo type

Main data of the product series

Product name
Tubular ring cable lugs with inspection hole, KORo type
Category
Ring
Material
Cu
Surface
tin-plated
Note!
Sector-shaped conductors (sm) must be rounded with special dies. For crimping cable lugs on cables of 5 class conductors (from cross-section of 10 mm²), we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KORo 0,75/3 E11KM-01020199400 1 100 pkt. Price on request
KORo 0,75/4 E11KM-01020199410 1 100 pkt. Price on request
KORo 0,75/5 E11KM-01020199420 1 100 pkt. Price on request
KORo 1,5/3 E11KM-01020199480 1 100 pkt. Price on request
KORo 1,5/4 E11KM-01020199580 1 100 pkt. Price on request
KORo 1,5/5 E11KM-01020199590 1 100 pkt. Price on request
KORo 1,5/6 E11KM-01020199600 1 100 pkt. Price on request
KORo 2,5/3 E11KM-01020199660 1 100 pkt. Price on request
KORo 2,5/4 E11KM-01020199670 1 100 pkt. Price on request
KORo 2,5/5 E11KM-01020199680 1 100 pkt. Price on request
KORo 2,5/6 E11KM-01020199690 1 100 pkt. Price on request
KORo 2,5/8 E11KM-01020199710 1 100 pkt. Price on request
KORo 4/4 E11KM-01020199760 1 100 pkt. Price on request
KORo 4/5 E11KM-01020199770 1 100 pkt. Price on request
KORo 4/6 E11KM-01020199780 1 100 pkt. Price on request
KORo 4/8 E11KM-01020199800 1 100 pkt. Price on request
KORo 6/4 E11KM-01020199870 1 100 pkt. Price on request
KORo 6/5 E11KM-01020199880 1 100 pkt. Price on request
KORo 6/6 E11KM-01020199890 1 100 pkt. Price on request
KORo 6/8 E11KM-01020199910 1 100 pkt. Price on request
KORo 6/10 E11KM-01020199930 1 100 pkt. Price on request
KORo 6/12 E11KM-01020199950 1 100 pkt. Price on request
KORo 10/5 E11KM-01020200100 100 100 pcs. Price on request
KORo 10/5 E11KM-01020200102 20 10 pcs. Price on request
KORo 10/6 E11KM-01020200200 100 100 pcs. Price on request
KORo 10/6 E11KM-01020200202 20 10 pcs. Price on request
KORo 10/8 E11KM-01020200300 100 100 pcs. Price on request
KORo 10/8 E11KM-01020200302 20 10 pcs. Price on request
KORo 10/10 E11KM-01020200400 100 100 pcs. Price on request
KORo 10/10 E11KM-01020200402 20 10 pcs. Price on request
KORo 10/12 E11KM-01020200500 100 100 pcs. Price on request
KORo 10/12 E11KM-01020200502 20 10 pcs. Price on request
KORo 16/5 E11KM-01020200600 100 100 pcs. Price on request
KORo 16/5 E11KM-01020200602 20 10 pcs. Price on request
KORo 16/6 E11KM-01020200700 100 100 pcs. Price on request
KORo 16/6 E11KM-01020200702 20 10 pcs. Price on request
KORo 16/8 E11KM-01020200800 100 100 pcs. Price on request
KORo 16/8 E11KM-01020200802 20 10 pcs. Price on request
KORo 16/10 E11KM-01020200900 100 100 pcs. Price on request
KORo 16/10 E11KM-01020200902 20 10 pcs. Price on request
KORo 16/12 E11KM-01020201000 100 100 pcs. Price on request
KORo 16/12 E11KM-01020201002 20 10 pcs. Price on request
KORo 25/5 E11KM-01020201100 100 100 pcs. Price on request
KORo 25/5 E11KM-01020201102 20 10 pcs. Price on request
KORo 25/6 E11KM-01020201200 100 100 pcs. Price on request
KORo 25/6 E11KM-01020201202 20 10 pcs. Price on request
KORo 25/8 E11KM-01020201300 100 100 pcs. Price on request
KORo 25/8 E11KM-01020201302 20 10 pcs. Price on request
KORo 25/10 E11KM-01020201400 100 100 pcs. Price on request
KORo 25/10 E11KM-01020201402 20 10 pcs. Price on request
KORo 25/12 E11KM-01020201500 100 100 pcs. Price on request
KORo 25/12 E11KM-01020201502 20 10 pcs. Price on request
KORo 25/14 E11KM-01020201600 100 100 pcs. Price on request
KORo 25/14 E11KM-01020201602 20 10 pcs. Price on request
KORo 35/6 E11KM-01020201700 100 100 pcs. Price on request
KORo 35/6 E11KM-01020201702 20 10 pcs. Price on request
KORo 35/8 E11KM-01020201800 100 100 pcs. Price on request
KORo 35/8 E11KM-01020201802 20 10 pcs. Price on request
KORo 35/10 E11KM-01020201900 100 100 pcs. Price on request
KORo 35/10 E11KM-01020201902 20 10 pcs. Price on request
KORo 35/12 E11KM-01020202000 100 100 pcs. Price on request
KORo 35/12 E11KM-01020202002 20 10 pcs. Price on request
KORo 35/14 E11KM-01020202100 100 100 pcs. Price on request
KORo 35/14 E11KM-01020202102 20 10 pcs. Price on request
KORo 35/16 E11KM-01020202200 100 100 pcs. Price on request
KORo 35/16 E11KM-01020202202 20 10 pcs. Price on request
KORo 50/6 E11KM-01020202300 100 100 pcs. Price on request
KORo 50/6 E11KM-01020202302 20 10 pcs. Price on request
KORo 50/8 E11KM-01020202400 100 100 pcs. Price on request
KORo 50/8 E11KM-01020202402 20 10 pcs. Price on request
KORo 50/10 E11KM-01020202500 100 100 pcs. Price on request
KORo 50/10 E11KM-01020202502 20 10 pcs. Price on request
KORo 50/12 E11KM-01020202600 100 100 pcs. Price on request
KORo 50/12 E11KM-01020202602 20 10 pcs. Price on request
KORo 50/14 E11KM-01020202700 100 100 pcs. Price on request
KORo 50/14 E11KM-01020202702 20 10 pcs. Price on request
KORo 50/16 E11KM-01020202800 100 100 pcs. Price on request
KORo 50/16 E11KM-01020202802 20 10 pcs. Price on request
KORo 50/20 E11KM-01020202900 100 100 pcs. Price on request
KORo 50/20 E11KM-01020202902 20 10 pcs. Price on request
KORo 70/6 E11KM-01020203000 100 100 pcs. Price on request
KORo 70/6 E11KM-01020203002 20 10 pcs. Price on request
KORo 70/8 E11KM-01020203100 100 100 pcs. Price on request
KORo 70/8 E11KM-01020203102 20 10 pcs. Price on request
KORo 70/10 E11KM-01020203200 100 100 pcs. Price on request
KORo 70/10 E11KM-01020203202 20 10 pcs. Price on request
KORo 70/12 E11KM-01020203300 100 100 pcs. Price on request
KORo 70/12 E11KM-01020203302 20 10 pcs. Price on request
KORo 70/14 E11KM-01020203400 100 100 pcs. Price on request
KORo 70/14 E11KM-01020203402 20 10 pcs. Price on request
KORo 70/16 E11KM-01020203500 100 100 pcs. Price on request
KORo 70/16 E11KM-01020203502 20 10 pcs. Price on request
KORo 70/20 E11KM-01020203600 100 100 pcs. Price on request
KORo 70/20 E11KM-01020203602 20 10 pcs. Price on request
KORo 95/8 E11KM-01020203700 50 50 pcs. Price on request
KORo 95/8 E11KM-01020203702 10 10 pcs. Price on request
KORo 95/10 E11KM-01020203800 50 50 pcs. Price on request
KORo 95/10 E11KM-01020203802 10 10 pcs. Price on request
KORo 95/12 E11KM-01020203900 50 50 pcs. Price on request
KORo 95/12 E11KM-01020203902 10 10 pcs. Price on request
KORo 95/14 E11KM-01020204000 50 50 pcs. Price on request
KORo 95/14 E11KM-01020204002 10 10 pcs. Price on request
KORo 95/16 E11KM-01020204100 50 50 pcs. Price on request
KORo 95/16 E11KM-01020204102 10 10 pcs. Price on request
KORo 95/20 E11KM-01020204200 50 50 pcs. Price on request
KORo 95/20 E11KM-01020204202 10 10 pcs. Price on request
KORo 120/8 E11KM-01020204300 50 50 pcs. Price on request
KORo 120/8 E11KM-01020204302 10 10 pcs. Price on request
KORo 120/10 E11KM-01020204400 50 50 pcs. Price on request
KORo 120/10 E11KM-01020204402 10 10 pcs. Price on request
KORo 120/12 E11KM-01020204500 50 50 pcs. Price on request
KORo 120/12 E11KM-01020204502 10 10 pcs. Price on request
KORo 120/14 E11KM-01020204600 50 50 pcs. Price on request
KORo 120/14 E11KM-01020204602 10 10 pcs. Price on request
KORo 120/16 E11KM-01020204700 50 50 pcs. Price on request
KORo 120/16 E11KM-01020204702 10 10 pcs. Price on request
KORo 120/20 E11KM-01020204800 50 50 pcs. Price on request
KORo 120/20 E11KM-01020204802 10 10 pcs. Price on request
KORo 150/8 E11KM-01020204900 50 50 pcs. Price on request
KORo 150/8 E11KM-01020204902 10 10 pcs. Price on request
KORo 150/10 E11KM-01020205000 50 50 pcs. Price on request
KORo 150/10 E11KM-01020205002 10 10 pcs. Price on request
KORo 150/12 E11KM-01020205100 50 50 pcs. Price on request
KORo 150/12 E11KM-01020205102 10 10 pcs. Price on request
KORo 150/14 E11KM-01020205200 50 50 pcs. Price on request
KORo 150/14 E11KM-01020205202 10 10 pcs. Price on request
KORo 150/16 E11KM-01020205300 50 50 pcs. Price on request
KORo 150/16 E11KM-01020205302 10 10 pcs. Price on request
KORo 150/20 E11KM-01020205400 50 50 pcs. Price on request
KORo 150/20 E11KM-01020205402 10 10 pcs. Price on request
KORo 185/10 E11KM-01020205500 50 50 pcs. Price on request
KORo 185/10 E11KM-01020205502 10 10 pcs. Price on request
KORo 185/12 E11KM-01020205600 50 50 pcs. Price on request
KORo 185/12 E11KM-01020205602 10 10 pcs. Price on request
KORo 185/14 E11KM-01020205700 50 50 pcs. Price on request
KORo 185/14 E11KM-01020205702 10 10 pcs. Price on request
KORo 185/16 E11KM-01020205800 50 50 pcs. Price on request
KORo 185/16 E11KM-01020205802 10 10 pcs. Price on request
KORo 185/20 E11KM-01020205900 50 50 pcs. Price on request
KORo 185/20 E11KM-01020205902 10 10 pcs. Price on request
KORo 240/10 E11KM-01020206000 50 50 pcs. Price on request
KORo 240/10 E11KM-01020206002 10 10 pcs. Price on request
KORo 240/12 E11KM-01020206100 50 50 pcs. Price on request
KORo 240/12 E11KM-01020206102 10 10 pcs. Price on request
KORo 240/14 E11KM-01020206200 50 50 pcs. Price on request
KORo 240/14 E11KM-01020206202 10 10 pcs. Price on request
KORo 240/16 E11KM-01020206300 50 50 pcs. Price on request
KORo 240/16 E11KM-01020206302 10 10 pcs. Price on request
KORo 240/20 E11KM-01020206400 50 50 pcs. Price on request
KORo 240/20 E11KM-01020206402 10 10 pcs. Price on request
KORo 300/10 E11KM-01020206500 25 25 pcs. Price on request
KORo 300/10 E11KM-01020206502 10 10 pcs. Price on request
KORo 300/12 E11KM-01020206600 25 25 pcs. Price on request
KORo 300/12 E11KM-01020206602 10 10 pcs. Price on request
KORo 300/14 E11KM-01020206700 25 25 pcs. Price on request
KORo 300/14 E11KM-01020206702 10 10 pcs. Price on request
KORo 300/16 E11KM-01020206800 25 25 pcs. Price on request
KORo 300/16 E11KM-01020206802 10 10 pcs. Price on request
KORo 300/20 E11KM-01020206900 25 25 pcs. Price on request
KORo 300/20 E11KM-01020206902 10 10 pcs. Price on request
KORo 400/12 E11KM-01020207002 10 1 pcs. Price on request
KORo 400/14 E11KM-01020207102 10 1 pcs. Price on request
KORo 400/16 E11KM-01020207202 10 1 pcs. Price on request
KORo 400/20 E11KM-01020207302 10 1 pcs. Price on request
KORo 500/12 E11KM-01020207402 10 1 pcs. Price on request
KORo 500/16 E11KM-01020207502 10 1 pcs. Price on request
KORo 500/20 E11KM-01020207602 10 1 pcs. Price on request
KORo 625/12 E11KM-01020207702 10 1 pcs. Price on request
KORo 625/16 E11KM-01020207802 10 1 pcs. Price on request
KORo 625/20 E11KM-01020207902 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Certyfikat UL E475284 (according to table in the technical data sheet)
Wykonanie standard
Name Screw hole UL d D a c1 c2 E W Cross-section, rm/sm [mm²] Socket code no. - 2 class Socket code no. - 5 class Number of crimping - wide Number of crimping - narrow
KORo 0,75/3 M3 √ 1,3 2,8 5,8 3,25 3,8 12,0 6,0 0,75 - - - 1
KORo 0,75/4 M4 √ 1,3 2,8 5,8 4,0 4,8 13,0 6,5 0,75 - - - 1
KORo 0,75/5 M5 √ 1,3 2,8 5,8 4,75 5,3 14,0 7,5 0,75 - - - 1
KORo 1,5/3 M3 √ 1,8 3.3 5,8 3,25 3,8 12,0 6,5 1,5 - - - 1
KORo 1,5/4 M4 √ 1,8 3.3 5,8 4,0 4,8 13,0 6,5 1,5 - - - 1
KORo 1,5/5 M5 √ 1,8 3.3 5,8 4,75 5,3 14,0 7,5 1,5 - - - 1
KORo 1,5/6 M6 √ 1,8 3.3 5,8 6,5 6,3 16,0 9,0 1,5 - - - 1
KORo 2,5/3 M3 √ 2,3 4,2 5,8 3,25 3,8 12,0 7,5 2,5 - - - 1
KORo 2,5/4 M4 √ 2,3 4,2 5,8 4,0 4,8 13,0 7,5 2,5 - - - 1
KORo 2,5/5 M5 √ 2,3 4,2 5,8 4,75 5,3 14,0 8,5 2,5 - - - 1
KORo 2,5/6 M6 √ 2,3 4,2 5,8 6,5 6,3 16,0 9,5 2,5 - - - 1
KORo 2,5/8 M8 √ 2,3 4,2 5,8 7,75 9,3 20,0 13,0 2,5 - - - 1
KORo 4/4 M4 √ 3,0 5,0 7,8 4,75 5,3 18,0 8,5 4 - - - 1
KORo 4/5 M5 √ 3,0 5,0 7,8 4,75 5,8 18,0 9,0 4 - - - 1
KORo 4/6 M6 √ 3,0 5,0 7,8 6,5 6,3 19,0 10,0 4 - - - 1
KORo 4/8 M8 √ 3,0 5,0 7,8 8,5 9,3 22,0 13,0 4 - - - 1
KORo 6/4 M4 √ 4,0 6,0 8,7 5,0 5,3 18,0 9,5 6 4 - 1 1
KORo 6/5 M5 √ 4,0 6,0 8,7 6,0 5,8 19,0 9,5 6 4 - 1 1
KORo 6/6 M6 √ 4,0 6,0 8,7 7,0 6,3 19,0 10,0 6 4 - 1 1
KORo 6/8 M8 √ 4,0 6,0 8,7 8,5 9,3 22,0 14,0 6 4 - 1 1
KORo 6/10 M10 √ 4,0 6,0 8,7 11,0 11,8 25,0 16,0 6 4 - 1 1
KORo 6/12 M12 √ 4,0 6,0 8,7 12,0 12,8 25,0 19,0 6 4 - 1 1
KORo 10/5 M5 √ 4,5 7,0 10 7,0 7,5 21,0 12 10 7 FL10 1 1
KORo 10/6 M6 √ 4,5 7,0 10 7,0 8,0 21,5 12 10 7 FL10 1 1
KORo 10/8 M8 √ 4,5 7,0 10 9,0 10,0 23,5 15 10 7 FL10 1 1
KORo 10/10 M10 √ 4,5 7,0 10 11,0 12,0 25,5 17 10 7 FL10 1 1
KORo 10/12 M12 √ 4,5 7,0 10 12,0 13,0 26,5 19 10 7 FL10 1 1
KORo 16/5 M5 √ 5,5 8,5 13 7,0 7,5 25,0 12 16 8 FL16 1 2
KORo 16/6 M6 √ 5,5 8,5 13 7,0 8,0 25,5 12 16 8 FL16 1 2
KORo 16/8 M8 √ 5,5 8,5 13 9,0 10,0 27,5 15 16 8 FL16 1 2
KORo 16/10 M10 √ 5,5 8,5 13 11,0 12,0 29,5 17 16 8 FL16 1 2
KORo 16/12 M12 √ 5,5 8,5 13 12,0 13,0 30,5 19 16 8 FL16 1 2
KORo 25/5 M5 √ 7,0 10,0 15 7,0 7,5 28,0 14 25 10 FL25 1 2
KORo 25/6 M6 √ 7,0 10,0 15 7,0 8,0 28,5 14 25 10 FL25 1 2
KORo 25/8 M8 √ 7,0 10,0 15 9,0 10,0 30,5 16 25 10 FL25 1 2
KORo 25/10 M10 √ 7,0 10,0 15 11,0 12,0 32,5 18 25 10 FL25 1 2
KORo 25/12 M12 √ 7,0 10,0 15 12,0 13,0 33,5 19 25 10 FL25 1 2
KORo 25/14 M14 √ 7,0 10,0 15 14,0 15,0 35,5 21 25 10 FL25 1 2
KORo 35/6 M6 √ 8,5 12,0 17 7,0 8,0 31,5 18 35 12 FL35 1 2
KORo 35/8 M8 √ 8,5 12,0 17 9,0 10,0 33,5 18 35 12 FL35 1 2
KORo 35/10 M10 √ 8,5 12,0 17 11,0 12,0 35,5 18 35 12 FL35 1 2
KORo 35/12 M12 √ 8,5 12,0 17 12,0 13,0 36,5 20 35 12 FL35 1 2
KORo 35/14 M14 √ 8,5 12,0 17 14,0 15,0 38,5 21 35 12 FL35 1 2
KORo 35/16 M16 √ 8,5 12,0 17 16,0 16,0 39,5 26 35 12 FL35 1 2
KORo 50/6 M6 √ 10,0 14,0 19 7,0 8,0 34,5 20 50 14 FL50 1 2
KORo 50/8 M8 √ 10,0 14,0 19 9,0 10,0 36,5 20 50 14 FL50 1 2
KORo 50/10 M10 √ 10,0 14,0 19 11,0 12,0 38,5 20 50 14 FL50 1 2
KORo 50/12 M12 √ 10,0 14,0 19 12,0 13,0 39,5 23 50 14 FL50 1 2
KORo 50/14 M14 √ 10,0 14,0 19 14,0 15,0 41,5 23 50 14 FL50 1 2
KORo 50/16 M16 √ 10,0 14,0 19 16,0 16,0 42,5 28 50 14 FL50 1 2
KORo 50/20 M20 √ 10,0 14,0 19 20,0 20,6 47,0 30 50 14 FL50 1 2
KORo 70/6 M6 √ 12,0 16,5 21 9,0 10,0 40,5 23 70 16 FL70 1 2
KORo 70/8 M8 √ 12,0 16,5 21 9,0 10,0 40,5 23 70 16 FL70 1 2
KORo 70/10 M10 √ 12,0 16,5 21 12,0 13,0 43,5 23 70 16 FL70 1 2
KORo 70/12 M12 √ 12,0 16,5 21 12,0 13,0 43,5 23 70 16 FL70 1 2
KORo 70/14 M14 √ 12,0 16,5 21 16,0 16,0 46,5 28 70 16 FL70 1 2
KORo 70/16 M16 √ 12,0 16,5 21 16,0 16,0 46,5 28 70 16 FL70 1 2
KORo 70/20 M20 √ 12,0 16,5 21 20,0 20,6 51,0 31 70 16 FL70 1 2
KORo 95/8 M8 √ 13,5 18,0 24 12,0 13,0 47,0 26 95 17 FL95 1 2
KORo 95/10 M10 √ 13,5 18,0 24 12,0 13,0 47,0 26 95 17 FL95 1 2
KORo 95/12 M12 √ 13,5 18,0 24 12,0 13,0 47,0 26 95 17 FL95 1 2
KORo 95/14 M14 √ 13,5 18,0 24 16,0 16,0 50,0 26 95 17 FL95 1 2
KORo 95/16 M16 √ 13,5 18,0 24 16,0 16,0 50,0 29 95 17 FL95 1 2
KORo 95/20 M20 √ 13,5 18,0 24 20,0 20,6 54,5 35 95 17 FL95 1 2
KORo 120/8 M10 √ 15,0 19,5 26 12,0 13,0 50,0 29 120 19 FL120 1 2
KORo 120/10 M10 √ 15,0 19,5 26 12,0 13,0 50,0 29 120 19 FL120 1 2
KORo 120/12 M12 √ 15,0 19,5 26 12,0 13,0 50,0 29 120 19 FL120 1 2
KORo 120/14 M14 √ 15,0 19,5 26 16,0 16,0 53,0 29 120 19 FL120 1 2
KORo 120/16 M16 √ 15,0 19,5 26 16,0 16,0 53,0 29 120 19 FL120 1 2
KORo 120/20 M20 √ 15,0 19,5 26 20,0 20,6 57,5 35 120 19 FL120 1 2
KORo 150/8 M8 √ 16,5 21,0 29 12,0 13,0 54,0 31 150 20 FL150 2 3
KORo 150/10 M10 √ 16,5 21,0 29 12,0 13,0 54,0 31 150 20 FL150 2 3
KORo 150/12 M12 √ 16,5 21,0 29 12,0 13,0 54,0 31 150 20 FL150 2 3
KORo 150/14 M14 √ 16,5 21,0 29 16,0 16,0 57,0 31 150 20 FL150 2 3
KORo 150/16 M16 √ 16,5 21,0 29 16,0 16,0 57,0 31 150 20 FL150 2 3
KORo 150/20 M20 √ 16,5 21,0 29 20,0 20,6 61,5 35 150 20 FL150 2 3
KORo 185/10 M10 √ 19,0 24,0 30 12,0 13,0 56,5 35 185 23 FL185 2 3
KORo 185/12 M12 √ 19,0 24,0 30 12,0 13,0 56,5 35 185 23 FL185 2 3
KORo 185/14 M14 √ 19,0 24,0 30 16,0 16,0 59,5 35 185 23 FL185 2 3
KORo 185/16 M16 √ 19,0 24,0 30 16,0 16,0 59,5 35 185 23 FL185 2 3
KORo 185/20 M20 √ 19,0 24,0 30 20,0 20,6 64,0 38 185 23 FL185 2 3
KORo 240/10 M10 √ 21,0 26,0 38 20,0 20,6 73,5 38 240 25 FL240 2 4
KORo 240/12 M12 √ 21,0 26,0 38 20,0 20,6 73,5 38 240 25 FL240 2 4
KORo 240/14 M14 √ 21,0 26,0 38 20,0 20,6 73,5 38 240 25 FL240 2 4
KORo 240/16 M16 √ 21,0 26,0 38 20,0 20,6 73,5 38 240 25 FL240 2 4
KORo 240/20 M20 √ 21,0 26,0 38 20,0 20,6 73,5 38 240 25 FL240 2 4
KORo 300/10 M10 − 24,0 30,0 45 20,0 20,6 82,5 43 300 28 FL300 2 -
KORo 300/12 M12 − 24,0 30,0 45 20,0 20,6 82,5 43 300 28 FL300 2 -
KORo 300/14 M14 − 24,0 30,0 45 20,0 20,6 82,5 43 300 28 FL300 2 -
KORo 300/16 M16 − 24,0 30,0 45 20,0 20,6 82,5 43 300 28 FL300 2 -
KORo 300/20 M20 − 24,0 30,0 45 20,0 20,6 82,5 43 300 28 FL300 2 -
KORo 400/12 M12 − 27,5 33,5 50 20,0 20,6 90 49 400 32 - 2 -
KORo 400/14 M14 − 27,5 33,5 50 20,0 20,6 90 49 400 32 - 2 -
KORo 400/16 M16 − 27,5 33,5 50 20,0 20,6 90 49 400 32 - 2 -
KORo 400/20 M20 − 27,5 33,5 50 20,0 20,6 90 49 400 32 - 2 -
KORo 500/12 M12 − 31,0 38,0 70 20,0 20,6 112,5 55 500 36 - 3 -
KORo 500/16 M16 − 31,0 38,0 70 20,0 20,6 112,5 55 500 36 - 3 -
KORo 500/20 M20 − 31,0 38,0 70 20,0 20,6 112,5 55 500 36 - 3 -
KORo 625/12 M12 − 34,0 40,0 70 20,0 20,6 114,0 60 625 42 - 3 -
KORo 625/16 M16 − 34,0 40,0 70 20,0 20,6 114,0 60 625 42 - 3 -
KORo 625/20 M20 − 34,0 40,0 70 20,0 20,6 114,0 60 625 42 - 3 -

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_rurowe_z_otworem_inspekcyjnym_typu_KORo_EN.pdf EN 04-07-2025 546.02 KB PDF Download
Catalog card ERGOM_Koncowki_rurowe_z_otworem_inspekcyjnym_typu_KORo_PL.pdf PL 04-07-2025 549.44 KB PDF Download
Contact us
