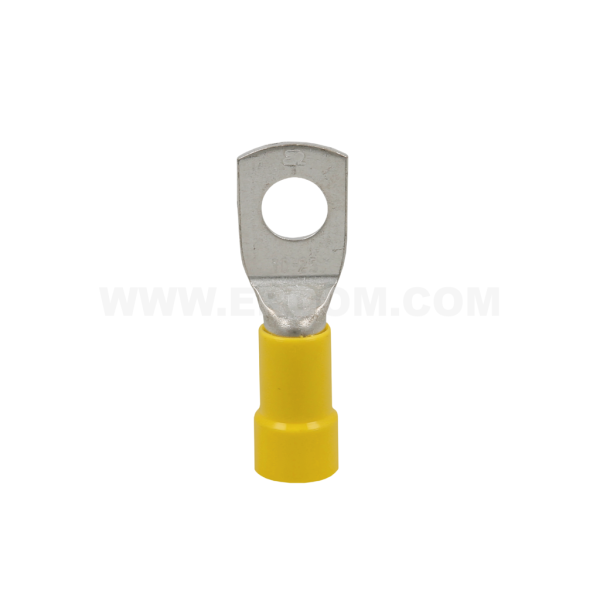

Tubular ring cable lugs, KORI type

Tubular ring cable lugs, KORI type

Main data of the product series

Product name
Tubular ring cable lugs, KORI type
Category
Ring
Operating temperature [°C]
-30 ÷ +95
Surface
tin-plated
Material
Cu
Insulation
polyamide 6.6
Note!
Sector shaped conductors (sm) must be rounded with special dies. Larger sizes up to 120 mm² on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KORI 10/5 E11KM-01100000100 100 100 pcs. Price on request
KORI 10/6 E11KM-01100000200 100 100 pcs. Price on request
KORI 10/8 E11KM-01100000300 100 100 pcs. Price on request
KORI 10/10 E11KM-01100000400 100 100 pcs. Price on request
KORI 10/12 E11KM-01100000500 100 100 pcs. Price on request
KORI 16/5 E11KM-01100001100 100 100 pcs. Price on request
KORI 16/6 E11KM-01100001200 100 100 pcs. Price on request
KORI 16/8 E11KM-01100001300 100 100 pcs. Price on request
KORI 16/10 E11KM-01100001400 100 100 pcs. Price on request
KORI 16/12 E11KM-01100001500 100 100 pcs. Price on request
KORI 25/5 E11KM-01100002100 100 100 pcs. Price on request
KORI 25/6 E11KM-01100002200 100 100 pcs. Price on request
KORI 25/8 E11KM-01100002300 100 100 pcs. Price on request
KORI 25/10 E11KM-01100002400 100 100 pcs. Price on request
KORI 25/12 E11KM-01100002500 100 100 pcs. Price on request
KORI 25/14 E11KM-01100002600 100 100 pcs. Price on request
KORI 35/6 E11KM-01100003100 100 100 pcs. Price on request
KORI 35/8 E11KM-01100003200 100 100 pcs. Price on request
KORI 35/10 E11KM-01100003300 100 100 pcs. Price on request
KORI 35/12 E11KM-01100003400 100 100 pcs. Price on request
KORI 35/14 E11KM-01100003500 100 100 pcs. Price on request
KORI 35/16 E11KM-01100003600 100 100 pcs. Price on request

Selected lines: 0

Technical data

General data

Insulation polyamide 6.6
Material Cu
Surface tin-plated
Operating temperature [°C] -30 ÷ +95
Wykonanie standard
Name Insulation colour Screw hole d D a E L W Cross-section, rm/sm [mm²]
KORI 10/5 red M5 4,5 7,5 10 21,0 17,5 12,0 10
KORI 10/6 red M6 4,5 7,5 10 21,5 17,5 12,0 10
KORI 10/8 red M8 4,5 7,5 10 23,5 17,5 15,0 10
KORI 10/10 red M10 4,5 7,5 10 25,5 17,5 17,0 10
KORI 10/12 red M12 4,5 7,5 10 26,5 17,5 19,0 10
KORI 16/5 blue M5 5,5 9,6 13 25,0 22,0 12,0 16
KORI 16/6 blue M6 5,5 9,6 13 25,5 22,0 12,0 16
KORI 16/8 blue M8 5,5 9,6 13 27,5 22,0 15,0 16
KORI 16/10 blue M10 5,5 9,6 13 29,5 22,0 17,0 16
KORI 16/12 blue M12 5,5 9,6 13 30,5 22,0 19,0 16
KORI 25/5 yellow M5 7,0 12,0 15 28,0 25,0 14,0 25
KORI 25/6 yellow M6 7,0 12,0 15 28,5 25,0 14,0 25
KORI 25/8 yellow M8 7,0 12,0 15 30,5 25,0 16,0 25
KORI 25/10 yellow M10 7,0 12,0 15 32,5 25,0 18,0 25
KORI 25/12 yellow M12 7,0 12,0 15 33,5 25,0 19,0 25
KORI 25/14 yellow M14 7,0 12,0 15 35,5 25,0 21,0 25
KORI 35/6 red M6 8,5 13,0 17 31,5 28,0 18,0 35
KORI 35/8 red M8 8,5 13,0 17 33,5 28,0 18,0 35
KORI 35/10 red M10 8,5 13,0 17 35,5 28,0 18,0 35
KORI 35/12 red M12 8,5 13,0 17 36,5 28,0 20,0 35
KORI 35/14 red M14 8,5 13,0 17 38,5 28,0 21,0 35
KORI 35/16 red M16 8,5 13,0 17 39,5 28,0 26,0 35

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_oczkowe_rurowe_typu_KORI_EN.pdf EN 04-07-2025 294.66 KB PDF Download
Catalog card ERGOM_Koncowki_oczkowe_rurowe_typu_KORI_PL.pdf PL 04-07-2025 316.47 KB PDF Download
