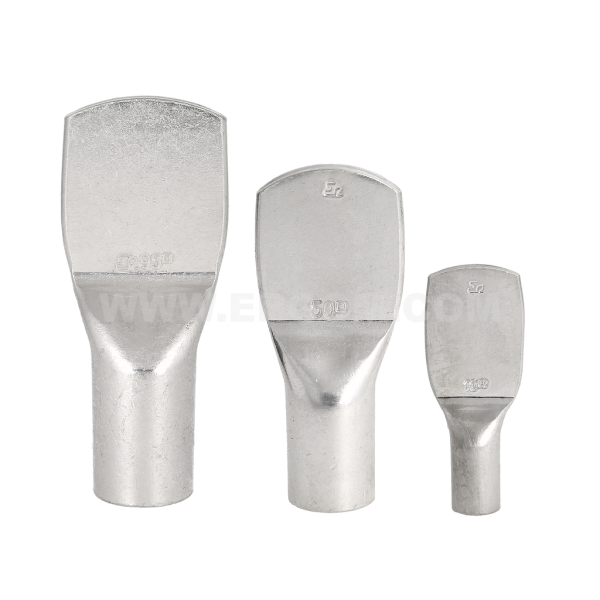

Tubular cable lugs without hole, KOR type

Tubular cable lugs without hole, KOR type

Main data of the product series

Product name
Tubular cable lugs without hole, KOR type
Category
Without hole
Surface
tin-plated
Material
Cu
Note!
Sector-shaped conductors must be rounded with special dies. For crimping cable lugs on cables of 5 class conductors, we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KOR 10 E11KM-01020300102 20 10 pcs. Price on request
KOR 16 E11KM-01020300202 20 10 pcs. Price on request
KOR 25 E11KM-01020300302 20 10 pcs. Price on request
KOR 35 E11KM-01020300402 20 10 pcs. Price on request
KOR 50 E11KM-01020300502 20 10 pcs. Price on request
KOR 70 E11KM-01020300602 20 10 pcs. Price on request
KOR 95 E11KM-01020300702 20 10 pcs. Price on request
KOR 120 E11KM-01020300802 20 10 pcs. Price on request
KOR 150 E11KM-01020300902 10 10 pcs. Price on request
KOR 185 E11KM-01020301002 10 10 pcs. Price on request
KOR 240 E11KM-01020301102 10 10 pcs. Price on request
KOR 300 E11KM-01020301200 10 1 pcs. Price on request
KOR 400 E11KM-01020301300 10 1 pcs. Price on request
KOR 500 E11KM-01020301400 10 1 pcs. Price on request
KOR 625 E11KM-01020301500 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Wykonanie standard
Name d D a C L W Cross-section, rm/sm [mm²] Socket code no. - 2 class Socket code no. - 5 class Number of crimping - wide Number of crimping - narrow
KOR 10 4,5 7,0 10 19 33 17 10 7 FL10 1 1
KOR 16 5,5 8,5 13 23 40,5 17 16 8 FL16 1 2
KOR 25 7,0 10,0 15 23 43,5 18 25 10 FL25 1 2
KOR 35 8,5 12,0 17 25 48,5 20 35 12 FL35 1 2
KOR 50 10,0 14,0 19 25 52 23 50 14 FL50 1 2
KOR 70 12,0 16,5 21 25 55 23 70 16 FL70 1 2
KOR 95 13,5 18,0 24 32 66 29 95 17 FL95 1 2
KOR 120 15,0 19,5 26 32 69 29 120 19 FL120 1 2
KOR 150 16,5 21,0 29 32 73 31 150 20 FL150 2 3
KOR 185 19,0 24,0 30 32 76 35 185 23 FL185 2 3
KOR 240 21,0 26,0 38 40 93,5 38 240 25 FL240 2 4
KOR 300 24,0 30,0 45 40 102,5 43 300 28 FL300 2 6
KOR 400 27,5 33,5 50 40 110 49 400 32 - 2 -
KOR 500 31,0 38,0 70 40 132,5 55 500 36 - 3 -
KOR 625 34,0 40,0 70 45 139 60 625 42 - 3 -

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_rurowe_typu_KOR_bez_otworu_EN.pdf EN 04-07-2025 296.73 KB PDF Download
Catalog card ERGOM_Koncowki_rurowe_typu_KOR_bez_otworu_PL.pdf PL 04-07-2025 339.61 KB PDF Download
