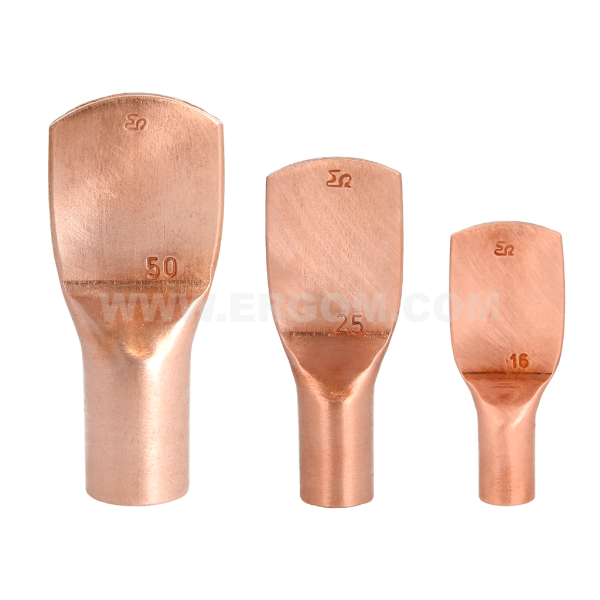

Tubular cable lugs without hole, KM type

Tubular cable lugs without hole, KM type

Main data of the product series

Product name
Tubular cable lugs without hole, KM type
Category
Without hole
Surface
uncoated
Material
Cu
Note!
Sector-shaped conductors must be rounded with special dies. For crimping cable lugs on cables of 5 class conductors, we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KM 10 E11KM-01010200102 20 10 pcs. Price on request
KM 16 E11KM-01010200202 50 10 pcs. Price on request
KM 25 E11KM-01010200302 50 10 pcs. Price on request
KM 35 E11KM-01010200402 50 10 pcs. Price on request
KM 50 E11KM-01010200502 50 10 pcs. Price on request
KM 70 E11KM-01010200602 50 10 pcs. Price on request
KM 95 E11KM-01010200702 50 10 pcs. Price on request
KM 120 E11KM-01010200802 50 10 pcs. Price on request
KM 150 E11KM-01010200902 10 10 pcs. Price on request
KM 185 E11KM-01010201002 10 10 pcs. Price on request
KM 240 E11KM-01010201102 10 10 pcs. Price on request
KM 300 E11KM-01010201200 10 1 pcs. Price on request
KM 400 E11KM-01010201300 10 1 pcs. Price on request
KM 500 E11KM-01010201400 10 1 pcs. Price on request
KM 625 E11KM-01010201500 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface uncoated
Wykonanie standard
Name d D a C L W Cross-section, rm/sm [mm²] Socket code no. - 2 class Socket code no. - 5 class Number of crimping - wide Number of crimping - narrow
KM 10 4,5 7,0 10 19 33 17 10 7 FL10 1 1
KM 16 5,5 8,5 13 19 33 17 16 8 FL16 1 2
KM 25 7,0 10,0 15 23 40,5 17 25 10 FL25 1 2
KM 35 8,5 12,0 17 23 43,5 18 35 12 FL35 1 2
KM 50 10,0 14,0 19 25 48,5 20 50 14 FL50 1 2
KM 70 12,0 16,5 21 25 52 23 70 16 FL70 1 2
KM 95 13,5 18,0 24 25 55 23 95 17 FL95 1 2
KM 120 15,0 19,5 26 32 66 29 120 19 FL120 1 2
KM 150 16,5 21,0 29 32 69 29 150 20 FL150 2 3
KM 185 19,0 24,0 30 32 73 31 185 23 FL185 2 3
KM 240 21,0 26,0 38 32 76 35 240 25 FL240 2 4
KM 300 24,0 30,0 45 40 102,5 43 300 28 FL300 2 6
KM 400 27,5 33,5 50 40 110 49 400 32 - 2 -
KM 500 31,0 38,0 70 40 132,5 55 500 36 - 3 -
KM 625 34,0 40,0 70 45 139 60 625 42 - 3 -

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_rurowe_typu_KM_bez_otworu_EN.pdf EN 04-07-2025 303.68 KB PDF Download
Catalog card ERGOM_Koncowki_rurowe_typu_KM_bez_otworu_PL.pdf PL 04-07-2025 346.57 KB PDF Download
