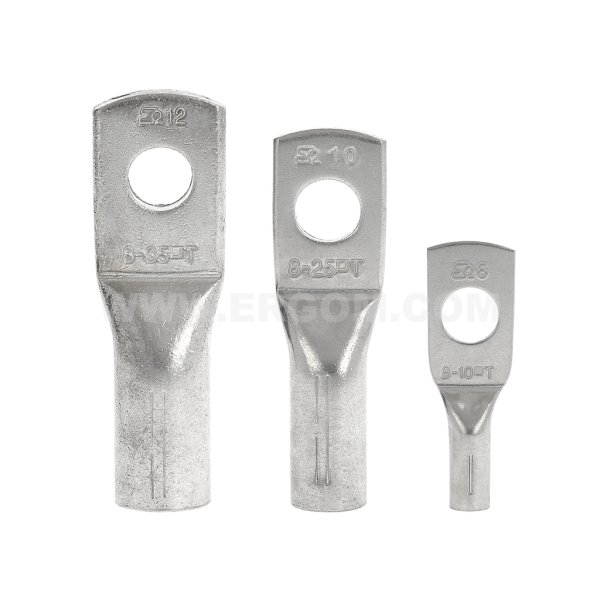

Tubular cable lugs, KDR type

Tubular cable lugs, KDR type

Main data of the product series

Product name
Tubular cable lugs, KDR type
Category
Ring
Material
Cu
Surface
tin-plated
Note!
Sector-shaped conductors (sm) must be rounded with special dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KDR 10/5 E11KM-02020100100 100 100 pcs. Price on request
KDR 10/5 E11KM-02020100102 20 10 pcs. Price on request
KDR 10/6 E11KM-02020100200 100 100 pcs. Price on request
KDR 10/6 E11KM-02020100202 20 10 pcs. Price on request
KDR 10/8 E11KM-02020100300 100 100 pcs. Price on request
KDR 10/8 E11KM-02020100302 20 10 pcs. Price on request
KDR 10/10 E11KM-02020100350 100 100 pcs. Price on request
KDR 10/10 E11KM-02020100352 20 10 pcs. Price on request
KDR 16/6 E11KM-02020100400 100 100 pcs. Price on request
KDR 16/6 E11KM-02020100402 20 10 pcs. Price on request
KDR 16/8 E11KM-02020100500 100 100 pcs. Price on request
KDR 16/8 E11KM-02020100502 20 10 pcs. Price on request
KDR 16/10 E11KM-02020100600 100 100 pcs. Price on request
KDR 16/10 E11KM-02020100602 20 10 pcs. Price on request
KDR 16/12 E11KM-02020100700 100 100 pcs. Price on request
KDR 16/12 E11KM-02020100702 20 10 pcs. Price on request
KDR 25/6 E11KM-02020100800 100 100 pcs. Price on request
KDR 25/6 E11KM-02020100802 20 10 pcs. Price on request
KDR 25/8 E11KM-02020100900 100 100 pcs. Price on request
KDR 25/8 E11KM-02020100902 20 10 pcs. Price on request
KDR 25/10 E11KM-02020101000 100 100 pcs. Price on request
KDR 25/10 E11KM-02020101002 20 10 pcs. Price on request
KDR 25/12 E11KM-02020101100 100 100 pcs. Price on request
KDR 25/12 E11KM-02020101102 20 10 pcs. Price on request
KDR 25/14 E11KM-02020101200 100 100 pcs. Price on request
KDR 25/14 E11KM-02020101202 20 10 pcs. Price on request
KDR 25/16 E11KM-02020101300 100 100 pcs. Price on request
KDR 25/16 E11KM-02020101302 20 10 pcs. Price on request
KDR 35/6 E11KM-02020101400 100 100 pcs. Price on request
KDR 35/6 E11KM-02020101402 20 10 pcs. Price on request
KDR 35/8 E11KM-02020101500 100 100 pcs. Price on request
KDR 35/8 E11KM-02020101502 20 10 pcs. Price on request
KDR 35/10 E11KM-02020101600 100 100 pcs. Price on request
KDR 35/10 E11KM-02020101602 20 10 pcs. Price on request
KDR 35/12 E11KM-02020101700 100 100 pcs. Price on request
KDR 35/12 E11KM-02020101702 20 10 pcs. Price on request
KDR 35/14 E11KM-02020101800 100 100 pcs. Price on request
KDR 35/14 E11KM-02020101802 20 10 pcs. Price on request
KDR 35/16 E11KM-02020101900 100 100 pcs. Price on request
KDR 35/16 E11KM-02020101902 20 10 pcs. Price on request
KDR 50/6 E11KM-02020101950 100 100 pcs. Price on request
KDR 50/6 E11KM-02020101952 10 10 pcs. Price on request
KDR 50/8 E11KM-02020102000 100 100 pcs. Price on request
KDR 50/8 E11KM-02020102002 20 10 pcs. Price on request
KDR 50/10 E11KM-02020102100 100 100 pcs. Price on request
KDR 50/10 E11KM-02020102102 20 10 pcs. Price on request
KDR 50/12 E11KM-02020102200 100 100 pcs. Price on request
KDR 50/12 E11KM-02020102202 20 10 pcs. Price on request
KDR 50/14 E11KM-02020102300 100 100 pcs. Price on request
KDR 50/14 E11KM-02020102302 20 10 pcs. Price on request
KDR 50/16 E11KM-02020102400 100 100 pcs. Price on request
KDR 50/16 E11KM-02020102402 20 10 pcs. Price on request
KDR 70/8 E11KM-02020102500 100 100 pcs. Price on request
KDR 70/8 E11KM-02020102502 20 10 pcs. Price on request
KDR 70/10 E11KM-02020102600 100 100 pcs. Price on request
KDR 70/10 E11KM-02020102602 20 10 pcs. Price on request
KDR 70/12 E11KM-02020102700 100 100 pcs. Price on request
KDR 70/12 E11KM-02020102702 20 10 pcs. Price on request
KDR 70/14 E11KM-02020102800 100 100 pcs. Price on request
KDR 70/14 E11KM-02020102802 20 10 pcs. Price on request
KDR 70/16 E11KM-02020102900 100 100 pcs. Price on request
KDR 70/16 E11KM-02020102902 20 10 pcs. Price on request
KDR 70/20 E11KM-02020103000 100 100 pcs. Price on request
KDR 70/20 E11KM-02020103002 20 10 pcs. Price on request
KDR 95/8 E11KM-02020103100 50 50 pcs. Price on request
KDR 95/8 E11KM-02020103102 10 10 pcs. Price on request
KDR 95/10 E11KM-02020103200 50 50 pcs. Price on request
KDR 95/10 E11KM-02020103202 10 10 pcs. Price on request
KDR 95/12 E11KM-02020103300 50 50 pcs. Price on request
KDR 95/12 E11KM-02020103302 10 10 pcs. Price on request
KDR 95/14 E11KM-02020103400 50 50 pcs. Price on request
KDR 95/14 E11KM-02020103402 10 10 pcs. Price on request
KDR 95/16 E11KM-02020103500 50 50 pcs. Price on request
KDR 95/16 E11KM-02020103502 10 10 pcs. Price on request
KDR 95/20 E11KM-02020103600 50 50 pcs. Price on request
KDR 95/20 E11KM-02020103602 10 10 pcs. Price on request
KDR 120/10 E11KM-02020103700 50 50 pcs. Price on request
KDR 120/10 E11KM-02020103702 10 10 pcs. Price on request
KDR 120/12 E11KM-02020103800 50 50 pcs. Price on request
KDR 120/12 E11KM-02020103802 10 10 pcs. Price on request
KDR 120/14 E11KM-02020103900 50 50 pcs. Price on request
KDR 120/14 E11KM-02020103902 10 10 pcs. Price on request
KDR 120/16 E11KM-02020104000 50 50 pcs. Price on request
KDR 120/16 E11KM-02020104002 10 10 pcs. Price on request
KDR 120/20 E11KM-02020104100 50 50 pcs. Price on request
KDR 120/20 E11KM-02020104102 10 10 pcs. Price on request
KDR 150/10 E11KM-02020104200 50 50 pcs. Price on request
KDR 150/10 E11KM-02020104202 10 10 pcs. Price on request
KDR 150/12 E11KM-02020104300 50 50 pcs. Price on request
KDR 150/12 E11KM-02020104302 10 10 pcs. Price on request
KDR 150/14 E11KM-02020104400 50 50 pcs. Price on request
KDR 150/14 E11KM-02020104402 10 10 pcs. Price on request
KDR 150/16 E11KM-02020104500 50 50 pcs. Price on request
KDR 150/16 E11KM-02020104502 10 10 pcs. Price on request
KDR 150/20 E11KM-02020104600 50 50 pcs. Price on request
KDR 150/20 E11KM-02020104602 10 10 pcs. Price on request
KDR 185/10 E11KM-02020104700 50 50 pcs. Price on request
KDR 185/10 E11KM-02020104702 10 10 pcs. Price on request
KDR 185/12 E11KM-02020104800 50 50 pcs. Price on request
KDR 185/12 E11KM-02020104802 10 10 pcs. Price on request
KDR 185/14 E11KM-02020104900 50 50 pcs. Price on request
KDR 185/14 E11KM-02020104902 10 10 pcs. Price on request
KDR 185/16 E11KM-02020105000 50 50 pcs. Price on request
KDR 185/16 E11KM-02020105002 10 10 pcs. Price on request
KDR 185/20 E11KM-02020105100 50 50 pcs. Price on request
KDR 185/20 E11KM-02020105102 10 10 pcs. Price on request
KDR 240/10 E11KM-02020105200 50 50 pcs. Price on request
KDR 240/10 E11KM-02020105202 10 10 pcs. Price on request
KDR 240/12 E11KM-02020105300 50 50 pcs. Price on request
KDR 240/12 E11KM-02020105302 10 10 pcs. Price on request
KDR 240/14 E11KM-02020105400 50 50 pcs. Price on request
KDR 240/14 E11KM-02020105402 10 10 pcs. Price on request
KDR 240/16 E11KM-02020105500 50 50 pcs. Price on request
KDR 240/16 E11KM-02020105502 10 10 pcs. Price on request
KDR 240/20 E11KM-02020105600 50 50 pcs. Price on request
KDR 240/20 E11KM-02020105602 10 10 pcs. Price on request
KDR 300/10 E11KM-02020105680 25 25 pcs. Price on request
KDR 300/10 E11KM-02020105682 10 10 pcs. Price on request
KDR 300/12 E11KM-02020105700 25 25 pcs. Price on request
KDR 300/12 E11KM-02020105702 10 10 pcs. Price on request
KDR 300/14 E11KM-02020105800 25 25 pcs. Price on request
KDR 300/14 E11KM-02020105802 10 10 pcs. Price on request
KDR 300/16 E11KM-02020105900 25 25 pcs. Price on request
KDR 300/16 E11KM-02020105902 10 10 pcs. Price on request
KDR 300/20 E11KM-02020106000 25 25 pcs. Price on request
KDR 300/20 E11KM-02020106002 10 10 pcs. Price on request
KDR 400/12 E11KM-02020106100 25 25 pcs. Price on request
KDR 400/12 E11KM-02020106102 5 1 pcs. Price on request
KDR 400/14 E11KM-02020106200 25 25 pcs. Price on request
KDR 400/14 E11KM-02020106202 5 1 pcs. Price on request
KDR 400/16 E11KM-02020106300 25 25 pcs. Price on request
KDR 400/16 E11KM-02020106302 5 1 pcs. Price on request
KDR 400/20 E11KM-02020106400 25 25 pcs. Price on request
KDR 400/20 E11KM-02020106402 5 1 pcs. Price on request
KDR 500/12 E11KM-02020106500 25 25 pcs. Price on request
KDR 500/12 E11KM-02020106502 5 1 pcs. Price on request
KDR 500/14 E11KM-02020106600 25 25 pcs. Price on request
KDR 500/14 E11KM-02020106602 5 1 pcs. Price on request
KDR 500/16 E11KM-02020106700 25 25 pcs. Price on request
KDR 500/16 E11KM-02020106702 5 1 pcs. Price on request
KDR 500/20 E11KM-02020106800 25 25 pcs. Price on request
KDR 500/20 E11KM-02020106802 5 1 pcs. Price on request
KDR 625/12 E11KM-02020106900 10 10 pcs. Price on request
KDR 625/12 E11KM-02020106902 5 1 pcs. Price on request
KDR 625/14 E11KM-02020107000 10 10 pcs. Price on request
KDR 625/14 E11KM-02020107002 5 1 pcs. Price on request
KDR 625/16 E11KM-02020107100 10 10 pcs. Price on request
KDR 625/16 E11KM-02020107102 5 1 pcs. Price on request
KDR 625/20 E11KM-02020107200 10 10 pcs. Price on request
KDR 625/20 E11KM-02020107202 5 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Normy EN IEC 61238-1-1:2019 EN IEC 61238-1-3:2019 - mechanical strength Class 1 - Short-circuit resistance Class A for range of rated cross-section 25 - 240 mm²
Certyfikat UL E475284 (according to table in the technical data sheet)
Wykonanie DIN 46235
Świadectwo uznania typu PRS TE/1137/880567/25
Name Screw hole DIN UL d D a E W Cross-section, rm/sm [mm²] Socket code no. Number of crimping - wide Number of crimping - narrow
KDR 10/5 M5 √ √ 4,5 6,0 12 27 9 10 6 - 1
KDR 10/6 M6 √ √ 4,5 6,0 12 27 9 10 6 - 1
KDR 10/8 M8 – √ 4,5 6,0 12 27 13 10 6 - 1
KDR 10/8 M8 − √ 4,5 6,0 12 27 13 10 6 - 1
KDR 10/10 M10 – – 4,5 6,0 12 27 15 10 6 - 1
KDR 10/10 M10 − − 4,5 6,0 12 27 15 10 6 - 1
KDR 16/6 M6 √ √ 5,5 8,5 20 36 13 16 8 1 2
KDR 16/8 M8 √ √ 5,5 8,5 20 36 13 16 8 1 2
KDR 16/10 M10 √ √ 5,5 8,5 20 36 17 16 8 1 2
KDR 16/12 M12 – √ 5,5 8,5 20 38 19 16 8 1 2
KDR 16/12 M12 − √ 5,5 8,5 20 38 19 16 8 1 2
KDR 25/6 M6 √ √ 7,0 10,0 20 38 14 25 10 1 2
KDR 25/8 M8 √ √ 7,0 10,0 20 38 16 25 10 1 2
KDR 25/10 M10 √ √ 7,0 10,0 20 38 17 25 10 1 2
KDR 25/12 M12 √ √ 7,0 10,0 20 38 19 25 10 1 2
KDR 25/14 M14 – √ 7,0 10,0 20 40 21 25 10 1 2
KDR 25/14 M14 − √ 7,0 10,0 20 40 21 25 10 1 2
KDR 25/16 M16 – √ 7,0 10,0 20 45 25 25 10 1 2
KDR 25/16 M16 − √ 7,0 10,0 20 45 25 25 10 1 2
KDR 35/6 M6 – √ 8,2 12,5 20 42 17 35 12 1 2
KDR 35/6 M6 − √ 8,2 12,5 20 42 17 35 12 1 2
KDR 35/8 M8 √ √ 8,2 12,5 20 42 17 35 12 1 2
KDR 35/10 M10 √ √ 8,2 12,5 20 42 19 35 12 1 2
KDR 35/12 M12 √ √ 8,2 12,5 20 42 21 35 12 1 2
KDR 35/14 M14 – √ 8,2 12,5 20 44 23 35 12 1 2
KDR 35/14 M14 − √ 8,2 12,5 20 44 23 35 12 1 2
KDR 35/16 M16 – √ 8,2 12,5 20 45 28 35 12 1 2
KDR 35/16 M16 − √ 8,2 12,5 20 45 28 35 12 1 2
KDR 50/6 M6 – − 10,0 14,5 28 52 20 50 14 2 3
KDR 50/6 M6 − − 10,0 14,5 28 52 20 50 14 2 3
KDR 50/8 M8 √ √ 10,0 14,5 28 52 20 50 14 2 3
KDR 50/10 M10 √ √ 10,0 14,5 28 52 22 50 14 2 3
KDR 50/12 M12 √ √ 10,0 14,5 28 52 24 50 14 2 3
KDR 50/14 M14 – √ 10,0 14,5 28 52 26 50 14 2 3
KDR 50/14 M14 − √ 10,0 14,5 28 52 26 50 14 2 3
KDR 50/16 M16 √ √ 10,0 14,5 28 52 28 50 14 2 3
KDR 70/8 M8 √ √ 11,5 16,5 28 55 24 70 16 2 3
KDR 70/10 M10 √ √ 11,5 16,5 28 55 24 70 16 2 3
KDR 70/12 M12 √ √ 11,5 16,5 28 55 24 70 16 2 3
KDR 70/14 M14 – √ 11,5 16,5 28 55 26 70 16 2 3
KDR 70/14 M14 − √ 11,5 16,5 28 55 26 70 16 2 3
KDR 70/16 M16 √ √ 11,5 16,5 28 55 30 70 16 2 3
KDR 70/20 M20 – √ 11,5 16,5 28 55 35 70 16 2 3
KDR 70/20 M20 − √ 11,5 16,5 28 55 35 70 16 2 3
KDR 95/8 M8 − √ 13,5 19,0 35 65 28 95 18 2 4
KDR 95/10 M10 √ √ 13,5 19,0 35 65 28 95 18 2 4
KDR 95/12 M12 √ √ 13,5 19,0 35 65 28 95 18 2 4
KDR 95/14 M14 − √ 13,5 19,0 35 65 30 95 18 2 4
KDR 95/16 M16 √ √ 13,5 19,0 35 65 32 95 18 2 4
KDR 95/20 M20 – √ 13,5 19,0 35 69 35 95 18 2 4
KDR 95/20 M20 − √ 13,5 19,0 35 69 35 95 18 2 4
KDR 120/10 M10 √ √ 15,5 21,0 35 70 32 120 20 2 4
KDR 120/12 M12 √ √ 15,5 21,0 35 70 32 120 20 2 4
KDR 120/14 M14 – √ 15,5 21,0 35 70 32 120 20 2 4
KDR 120/14 M14 − √ 15,5 21,0 35 70 32 120 20 2 4
KDR 120/16 M16 √ √ 15,5 21,0 35 70 32 120 20 2 4
KDR 120/20 M20 √ √ 15,5 21,0 35 70 38 120 20 2 4
KDR 150/10 M10 √ √ 17,0 23,5 40 78 34 150 22 2 4
KDR 150/12 M12 √ √ 17,0 23,5 40 78 34 150 22 2 4
KDR 150/14 M14 – √ 17,0 23,5 40 78 34 150 22 2 4
KDR 150/14 M14 − √ 17,0 23,5 40 78 34 150 22 2 4
KDR 150/16 M16 √ √ 17,0 23,5 40 78 34 150 22 2 4
KDR 150/20 M20 √ √ 17,0 23,5 40 78 40 150 22 2 4
KDR 185/10 M10 √ √ 19,0 25,5 42 82 37 185 25 2 5
KDR 185/12 M12 √ √ 19,0 25,5 42 82 37 185 25 2 5
KDR 185/14 M14 – √ 19,0 25,5 42 82 37 185 25 2 5
KDR 185/14 M14 − √ 19,0 25,5 42 82 37 185 25 2 5
KDR 185/16 M16 √ √ 19,0 25,5 42 82 37 185 25 2 5
KDR 185/20 M20 √ √ 19,0 25,5 42 82 40 185 25 2 5
KDR 240/10 M10 − √ 21,5 29,0 42 92 42 240 28 2 5
KDR 240/12 M12 √ √ 21,5 29,0 42 92 42 240 28 2 5
KDR 240/14 M14 – √ 21,5 29,0 42 92 42 240 28 2 5
KDR 240/14 M14 − √ 21,5 29,0 42 92 42 240 28 2 5
KDR 240/16 M16 √ √ 21,5 29,0 42 92 42 240 28 2 5
KDR 240/20 M20 √ √ 21,5 29,0 42 92 45 240 28 2 5
KDR 300/10 M10 − − 24,5 32,0 52 100 48 300 32 2 6
KDR 300/12 M12 – − 24,5 32,0 52 100 48 300 32 2 6
KDR 300/12 M12 − − 24,5 32,0 52 100 48 300 32 2 6
KDR 300/14 M14 – − 24,5 32,0 52 100 48 300 32 2 6
KDR 300/14 M14 − − 24,5 32,0 52 100 48 300 32 2 6
KDR 300/16 M16 √ − 24,5 32,0 52 100 48 300 32 2 6
KDR 300/20 M20 √ − 24,5 32,0 52 100 48 300 32 2 6
KDR 400/12 M12 − − 27,5 38,5 70 115 55 400 38 3 -
KDR 400/14 M14 – − 27,5 38,5 70 115 55 400 38 3 -
KDR 400/14 M14 − − 27,5 38,5 70 115 55 400 38 3 -
KDR 400/16 M16 √ − 27,5 38,5 70 115 55 400 38 3 -
KDR 400/20 M20 √ − 27,5 38,5 70 115 55 400 38 3 -
KDR 500/12 M12 − − 31,0 42,0 70 125 60 500 42 3 -
KDR 500/14 M14 – − 31,0 42,0 70 125 60 500 42 3 -
KDR 500/14 M14 − − 31,0 42,0 70 125 60 500 42 3 -
KDR 500/16 M16 – − 31,0 42,0 70 125 60 500 42 3 -
KDR 500/16 M16 − − 31,0 42,0 70 125 60 500 42 3 -
KDR 500/20 M20 √ − 31,0 42,0 70 125 60 500 42 3 -
KDR 625/12 M12 − − 34,5 44,0 81 135 63 625 44 3 -
KDR 625/14 M14 – − 34,5 44,0 81 135 63 625 44 3 -
KDR 625/14 M14 − − 34,5 44,0 81 135 63 625 44 3 -
KDR 625/16 M16 – − 34,5 44,0 81 135 63 625 44 3 -
KDR 625/16 M16 − − 34,5 44,0 81 135 63 625 44 3 -
KDR 625/20 M20 √ − 34,5 44,0 81 135 63 625 44 3 -

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_rurowe_typu_KDR_EN.pdf EN 10-07-2025 604.57 KB PDF Download
Catalog card ERGOM_Koncowki_rurowe_typu_KDR_PL.pdf PL 10-07-2025 601.39 KB PDF Download
Contact us
