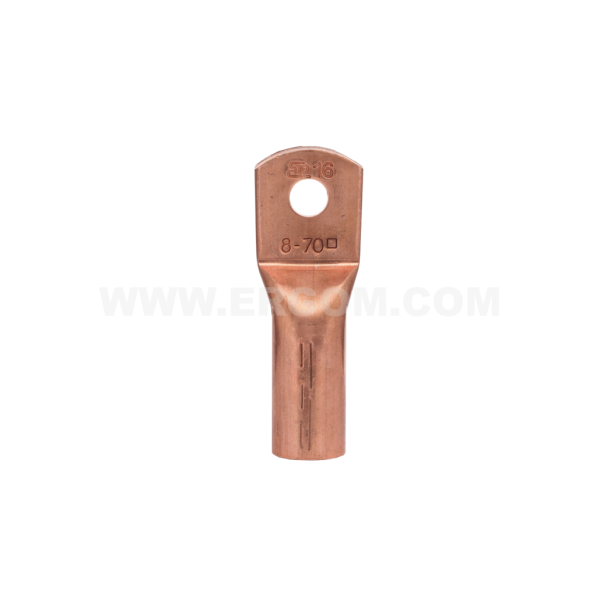

Tubular cable lugs, KDM type

Tubular cable lugs, KDM type

Main data of the product series

Product name
Tubular cable lugs, KDM type
Category
Ring
Material
Cu
Surface
uncoated
Note!
Sector-shaped conductors (sm) must be rounded with special dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KDM 10/5 E11KM-02010100100 100 100 pcs. Price on request
KDM 10/6 E11KM-02010100200 100 100 pcs. Price on request
KDM 10/8 E11KM-02010100300 100 100 pcs. Price on request
KDM 10/10 E11KM-02010100350 100 100 pcs. Price on request
KDM 16/6 E11KM-02010100400 100 100 pcs. Price on request
KDM 16/8 E11KM-02010100500 100 100 pcs. Price on request
KDM 16/10 E11KM-02010100600 100 100 pcs. Price on request
KDM 16/12 E11KM-02010100700 100 100 pcs. Price on request
KDM 25/6 E11KM-02010100800 100 100 pcs. Price on request
KDM 25/8 E11KM-02010100900 100 100 pcs. Price on request
KDM 25/10 E11KM-02010101000 100 100 pcs. Price on request
KDM 25/12 E11KM-02010101100 100 100 pcs. Price on request
KDM 25/14 E11KM-02010101200 100 100 pcs. Price on request
KDM 25/16 E11KM-02010101300 100 100 pcs. Price on request
KDM 35/6 E11KM-02010101400 100 100 pcs. Price on request
KDM 35/8 E11KM-02010101500 100 100 pcs. Price on request
KDM 35/10 E11KM-02010101600 100 100 pcs. Price on request
KDM 35/12 E11KM-02010101700 100 100 pcs. Price on request
KDM 35/14 E11KM-02010101800 100 100 pcs. Price on request
KDM 35/16 E11KM-02010101900 100 100 pcs. Price on request
KDM 50/8 E11KM-02010102000 100 100 pcs. Price on request
KDM 50/10 E11KM-02010102100 100 100 pcs. Price on request
KDM 50/12 E11KM-02010102200 100 100 pcs. Price on request
KDM 50/14 E11KM-02010102300 100 100 pcs. Price on request
KDM 50/16 E11KM-02010102400 100 100 pcs. Price on request
KDM 70/8 E11KM-02010102500 100 100 pcs. Price on request
KDM 70/10 E11KM-02010102600 100 100 pcs. Price on request
KDM 70/12 E11KM-02010102700 100 100 pcs. Price on request
KDM 70/14 E11KM-02010102800 100 100 pcs. Price on request
KDM 70/16 E11KM-02010102900 100 100 pcs. Price on request
KDM 70/20 E11KM-02010103000 100 100 pcs. Price on request
KDM 95/8 E11KM-02010103100 50 50 pcs. Price on request
KDM 95/10 E11KM-02010103200 50 50 pcs. Price on request
KDM 95/12 E11KM-02010103300 50 50 pcs. Price on request
KDM 95/14 E11KM-02010103400 50 50 pcs. Price on request
KDM 95/16 E11KM-02010103500 50 50 pcs. Price on request
KDM 95/20 E11KM-02010103600 50 50 pcs. Price on request
KDM 120/10 E11KM-02010103700 50 50 pcs. Price on request
KDM 120/12 E11KM-02010103800 50 50 pcs. Price on request
KDM 120/14 E11KM-02010103900 50 50 pcs. Price on request
KDM 120/16 E11KM-02010104000 50 50 pcs. Price on request
KDM 120/20 E11KM-02010104100 50 50 pcs. Price on request
KDM 150/10 E11KM-02010104200 50 50 pcs. Price on request
KDM 150/12 E11KM-02010104300 50 50 pcs. Price on request
KDM 150/14 E11KM-02010104400 50 50 pcs. Price on request
KDM 150/16 E11KM-02010104500 50 50 pcs. Price on request
KDM 150/20 E11KM-02010104600 50 50 pcs. Price on request
KDM 185/10 E11KM-02010104700 50 50 pcs. Price on request
KDM 185/12 E11KM-02010104800 50 50 pcs. Price on request
KDM 185/14 E11KM-02010104900 50 50 pcs. Price on request
KDM 185/16 E11KM-02010105000 50 50 pcs. Price on request
KDM 185/20 E11KM-02010105100 50 50 pcs. Price on request
KDM 240/10 E11KM-02010105150 50 50 pcs. Price on request
KDM 240/12 E11KM-02010105200 50 50 pcs. Price on request
KDM 240/14 E11KM-02010105300 50 50 pcs. Price on request
KDM 240/16 E11KM-02010105400 50 50 pcs. Price on request
KDM 240/20 E11KM-02010105500 50 50 pcs. Price on request
KDM 300/10 E11KM-02010105552 10 10 pcs. Price on request
KDM 300/12 E11KM-02010105602 10 10 pcs. Price on request
KDM 300/14 E11KM-02010105702 10 10 pcs. Price on request
KDM 300/16 E11KM-02010105802 10 10 pcs. Price on request
KDM 300/20 E11KM-02010105902 10 10 pcs. Price on request
KDM 400/12 E11KM-02010105952 10 1 pcs. Price on request
KDM 400/14 E11KM-02010106002 10 1 pcs. Price on request
KDM 400/16 E11KM-02010106102 10 1 pcs. Price on request
KDM 400/20 E11KM-02010106202 10 1 pcs. Price on request
KDM 500/12 E11KM-02010106252 10 1 pcs. Price on request
KDM 500/14 E11KM-02010106302 10 1 pcs. Price on request
KDM 500/16 E11KM-02010106402 10 1 pcs. Price on request
KDM 500/20 E11KM-02010106502 10 1 pcs. Price on request
KDM 625/12 E11KM-02010106552 5 1 pcs. Price on request
KDM 625/14 E11KM-02010106602 5 1 pcs. Price on request
KDM 625/16 E11KM-02010106702 5 1 pcs. Price on request
KDM 625/20 E11KM-02010106802 5 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface uncoated
Wykonanie DIN 46235
Name Screw hole DIN d D a E W Cross-section, rm/sm [mm²] Socket code no. Number of crimping - wide Number of crimping - narrow
KDM 10/5 M5 √ 4,5 6,0 12 27 9 10 6 - 1
KDM 10/6 M6 √ 4,5 6,0 12 27 9 10 6 - 1
KDM 10/8 M8 – 4,5 6,0 12 27 13 10 6 - 1
KDM 10/10 M10 – 4,5 6,0 12 27 15 10 6 - 1
KDM 16/6 M6 √ 5,5 8,5 20 36 13 16 8 1 2
KDM 16/8 M8 √ 5,5 8,5 20 36 13 16 8 1 2
KDM 16/10 M10 √ 5,5 8,5 20 36 17 16 8 1 2
KDM 16/12 M12 – 5,5 8,5 20 38 19 16 8 1 2
KDM 25/6 M6 √ 7,0 10,0 20 38 14 25 10 1 2
KDM 25/8 M8 √ 7,0 10,0 20 38 16 25 10 1 2
KDM 25/10 M10 √ 7,0 10,0 20 38 17 25 10 1 2
KDM 25/12 M12 √ 7,0 10,0 20 38 19 25 10 1 2
KDM 25/14 M14 – 7,0 10,0 20 40 21 25 10 1 2
KDM 25/16 M16 – 7,0 10,0 20 45 25 25 10 1 2
KDM 35/6 M6 – 8,2 12,5 20 42 17 35 12 1 2
KDM 35/8 M8 √ 8,2 12,5 20 42 17 35 12 1 2
KDM 35/10 M10 √ 8,2 12,5 20 42 19 35 12 1 2
KDM 35/12 M12 √ 8,2 12,5 20 42 21 35 12 1 2
KDM 35/14 M14 – 8,2 12,5 20 44 23 35 12 1 2
KDM 35/16 M16 – 8,2 12,5 20 45 28 35 12 1 2
KDM 50/8 M8 √ 10,0 14,5 28 52 20 50 14 2 3
KDM 50/10 M10 √ 10,0 14,5 28 52 22 50 14 2 3
KDM 50/12 M12 √ 10,0 14,5 28 52 24 50 14 2 3
KDM 50/14 M14 – 10,0 14,5 28 52 26 50 14 2 3
KDM 50/16 M16 √ 10,0 14,5 28 52 28 50 14 2 3
KDM 70/8 M8 √ 11,5 16,5 28 55 24 70 16 2 3
KDM 70/10 M10 √ 11,5 16,5 28 55 24 70 16 2 3
KDM 70/12 M12 √ 11,5 16,5 28 55 24 70 16 2 3
KDM 70/14 M14 – 11,5 16,5 28 55 26 70 16 2 3
KDM 70/16 M16 √ 11,5 16,5 28 55 30 70 16 2 3
KDM 70/20 M20 – 11,5 16,5 28 55 35 70 16 2 3
KDM 95/8 M8 – 13,5 19,0 35 65 28 95 19 2 4
KDM 95/10 M10 √ 13,5 19,0 35 65 28 95 18 2 4
KDM 95/12 M12 √ 13,5 19,0 35 65 28 95 18 2 4
KDM 95/14 M14 – 13,5 19,0 35 65 30 95 18 2 4
KDM 95/16 M16 √ 13,5 19,0 35 65 32 95 18 2 4
KDM 95/20 M20 – 13,5 19,0 35 69 35 95 18 2 4
KDM 120/10 M10 √ 15,5 21,0 35 70 32 120 20 2 4
KDM 120/12 M12 √ 15,5 21,0 35 70 32 120 20 2 4
KDM 120/14 M14 – 15,5 21,0 35 70 32 120 20 2 4
KDM 120/16 M16 √ 15,5 21,0 35 70 32 120 20 2 4
KDM 120/20 M20 √ 15,5 21,0 35 70 38 120 20 2 4
KDM 150/10 M10 √ 17,0 23,5 40 78 34 150 22 2 4
KDM 150/12 M12 √ 17,0 23,5 40 78 34 150 22 2 4
KDM 150/14 M14 – 17,0 23,5 40 78 34 150 22 2 4
KDM 150/16 M16 √ 17,0 23,5 40 78 34 150 22 2 4
KDM 150/20 M20 √ 17,0 23,5 40 78 40 150 22 2 4
KDM 185/10 M10 √ 19,0 25,5 42 82 37 185 25 2 5
KDM 185/12 M12 √ 19,0 25,5 42 82 37 185 25 2 5
KDM 185/14 M14 – 19,0 25,5 42 82 37 185 25 2 5
KDM 185/16 M16 √ 19,0 25,5 42 82 37 185 25 2 5
KDM 185/20 M20 √ 19,0 25,5 42 82 40 185 25 2 5
KDM 240/10 M10 – 21,5 29,0 42 92 42 240 28 2 5
KDM 240/12 M12 √ 21,5 29,0 42 92 42 240 28 2 5
KDM 240/14 M14 – 21,5 29,0 42 92 42 240 28 2 5
KDM 240/16 M16 √ 21,5 29,0 42 92 42 240 28 2 5
KDM 240/20 M20 √ 21,5 29,0 42 92 45 240 28 2 5
KDM 300/10 M10 – 24,5 32,0 52 100 48 300 32 2 6
KDM 300/12 M12 − 24,5 32,0 52 100 48 300 32 2 6
KDM 300/14 M14 − 24,5 32,0 52 100 48 300 32 2 6
KDM 300/16 M16 √ 24,5 32,0 52 100 48 300 32 2 6
KDM 300/20 M20 √ 24,5 32,0 52 100 48 300 32 2 6
KDM 400/12 M12 – 27,5 38,5 70 115 55 400 38 3 -
KDM 400/14 M14 − 27,5 38,5 70 115 55 400 38 3 -
KDM 400/16 M16 √ 27,5 38,5 70 115 55 400 38 3 -
KDM 400/20 M20 √ 27,5 38,5 70 115 55 400 38 3 -
KDM 500/12 M12 – 31,0 42,0 70 125 60 500 42 3 -
KDM 500/14 M14 − 31,0 42,0 70 125 60 500 42 3 -
KDM 500/16 M16 − 31,0 42,0 70 125 60 500 42 3 -
KDM 500/20 M20 √ 31,0 42,0 70 125 60 500 42 3 -
KDM 625/12 M12 – 34,5 44,0 81 135 63 625 44 3 -
KDM 625/14 M14 − 34,5 44,0 81 135 63 625 44 3 -
KDM 625/16 M16 − 34,5 44,0 81 135 63 625 44 3 -
KDM 625/20 M20 √ 34,5 44,0 81 135 63 625 44 3 -
