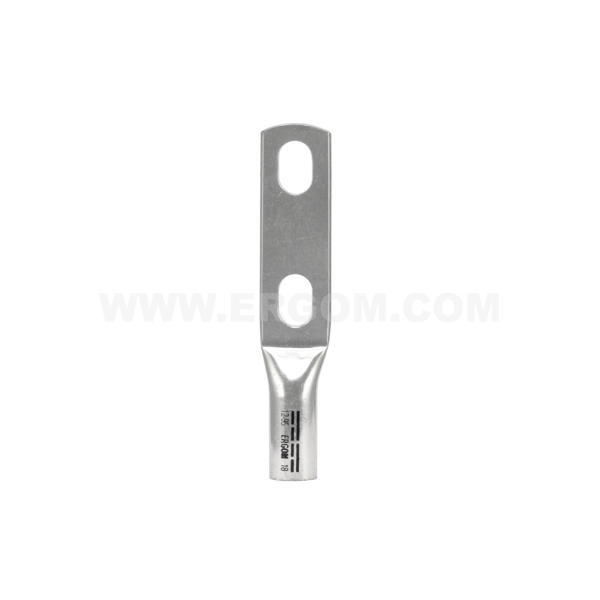

Tubular cable lugs for 2 bolts with adjustable spacing, KDR…/2x12 (45-60)

Tubular cable lugs for 2 bolts with adjustable spacing, KDR…/2x12 (45-60)

Main data of the product series

Product name
Tubular cable lugs for 2 bolts with adjustable spacing, KDR…/2x12 (45-60)
Category
Ring
Surface
tin-plated
Material
Cu
Note!
sector-shaped conductors must be rounded with special dies

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KDR 70/2x12 (45-60) E11KM-02020203200 10 1 pcs. Price on request
KDR 95/2x12 (45-60) E11KM-02020203400 10 1 pcs. Price on request
KDR 120/2x12 (45-60) E11KM-02020203500 10 1 pcs. Price on request
KDR 150/2x12 (45-60) E11KM-02020203600 10 1 pcs. Price on request
KDR 185/2x12 (45-60) E11KM-02020203700 10 1 pcs. Price on request
KDR 240/2x12 (45-60) E11KM-02020203800 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Screw hole M12
C 45 - 60
C1 14
W1 13
Number of crimping - wide 2
Wykonanie DIN 46235 – concerns only the tubular part
Name d D a C2 E W Cross-section [mm²] Socket code no. Number of crimping - narrow
KDR 70/2x12 (45-60) 11,5 16,5 28 14 55 24 70 16 3
KDR 95/2x12 (45-60) 13,5 19 35 16 65 28 95 18 4
KDR 120/2x12 (45-60) 15,5 21 35 20 70 32 120 20 4
KDR 150/2x12 (45-60) 17 23,5 40 20 78 34 150 22 4
KDR 185/2x12 (45-60) 19 25,5 42 20 82 37 185 25 5
KDR 240/2x12 (45-60) 21 29 42 26 92 42 240 28 5

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_kablowe_rurowe_typu_KDR_2x12_45_60_EN.pdf EN 04-07-2025 242.33 KB PDF Download
Catalog card ERGOM_Koncowki_kablowe_rurowe_typu_KDR_2x12_45_60_PL.pdf PL 04-07-2025 285.55 KB PDF Download
