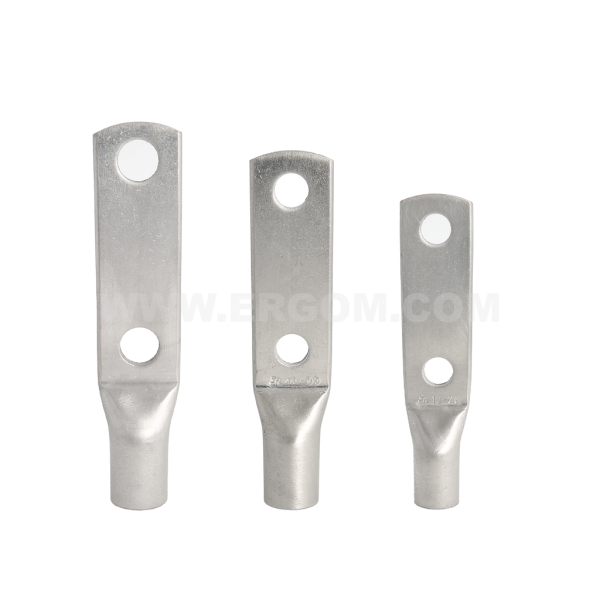

Tubular cable lugs for 2 bolts KOR ... 2X type

Tubular cable lugs for 2 bolts KOR ... 2X type

Main data of the product series

Product name
Tubular cable lugs for 2 bolts KOR ... 2X type
Category
Ring
Surface
tin-plated
Material
Cu
Note!
Sector-shaped conductors (sm) must be rounded with special dies. On special request, palm can be bent at 45° (K45L…2X) or 90° (K90L…2X) with an extended fin (screw spacing on request). For crimping cable lugs on cables of 5 class conductors, we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KOR 50/2x10 E11KM-01020400100 20 1 pcs. Price on request
KOR 50/2x12 E11KM-01020400200 20 1 pcs. Price on request
KOR 70/2x10 E11KM-01020400300 20 1 pcs. Price on request
KOR 70/2x12 E11KM-01020400400 20 1 pcs. Price on request
KOR 95/2x10 E11KM-01020400500 20 1 pcs. Price on request
KOR 95/2x12-40 E11KM-01020400600 20 1 pcs. Price on request
KOR 120/2x12-50 E11KM-01020400800 20 1 pcs. Price on request
KOR 120/2x12-60 E11KM-01020400900 20 1 pcs. Price on request
KOR 150/2x12 E11KM-01020401000 20 1 pcs. Price on request
KOR 185/2x12 E11KM-01020401100 20 1 pcs. Price on request
KOR 240/2x12 E11KM-01020401200 20 1 pcs. Price on request
KOR 240/2x16 E11KM-01020401300 20 1 pcs. Price on request
KOR 300/2x12 E11KM-01020401400 10 1 pcs. Price on request
KOR 300/2x16 E11KM-01020401500 10 1 pcs. Price on request
KOR 400/2x16 E11KM-01020401600 10 1 pcs. Price on request
KOR 400/2x20 E11KM-01020401700 10 1 pcs. Price on request
KOR 500/2x16 E11KM-01020401900 10 1 pcs. Price on request
KOR 500/2x20 E11KM-01020402000 10 1 pcs. Price on request
KOR 625/2x16 E11KM-01020402200 10 1 pcs. Price on request
KOR 625/2x20 E11KM-01020402300 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Wykonanie standard
Name Screw hole d D a C E W Cross-section, rm/sm [mm²] Socket code no. - 2 class Socket code no. - 5 class Number of crimping - wide Number of crimping - narrow
KOR 50/2x10 M10 10,0 14,0 19 30 39,0 20 50 14 FL50 1 2
KOR 50/2x12 M12 10,0 14,0 19 30 39,0 20 50 14 FL50 1 2
KOR 70/2x10 M10 12,0 16,5 21 50 43,0 25 70 16 FL70 1 2
KOR 70/2x12 M12 12,0 16,5 21 50 43,0 25 70 16 FL70 1 2
KOR 95/2x10 M10 13,5 18,0 24 50 47,0 25 95 17 FL95 1 2
KOR 95/2x12-40 M12 13,5 18,0 24 40 47,0 25 95 17 FL95 1 2
KOR 120/2x12-50 M12 15,0 19,5 26 50 54,0 28 120 19 FL120 1 2
KOR 120/2x12-60 M12 15,0 19,5 26 60 54,0 28 120 19 FL120 1 2
KOR 150/2x12 M12 16,5 21,0 29 50 54,0 28 150 20 FL150 2 3
KOR 185/2x12 M12 19,0 24,0 30 50 56,0 35 185 23 FL185 2 3
KOR 240/2x12 M12 21,0 26,0 38 50 73,5 38 240 25 FL240 2 4
KOR 240/2x16 M16 21,0 26,0 38 50 73,5 38 240 25 FL240 2 4
KOR 300/2x12 M12 24,0 30,0 45 50 82,5 43 300 28 FL300 2 6
KOR 300/2x16 M16 24,0 30,0 45 50 82,5 43 300 28 FL300 2 6
KOR 400/2x16 M16 27,5 33,5 50 50 90,0 49 400 32 - 2 -
KOR 400/2x20 M20 27,5 33,5 50 50 90,0 49 400 32 - 2 -
KOR 500/2x16 M16 31,0 38,0 70 50 112,5 55 500 36 - 3 -
KOR 500/2x20 M20 31,0 38,0 70 50 112,5 55 500 36 - 3 -
KOR 625/2x16 M16 34,0 40,0 70 50 114,0 60 625 42 - 3 -
KOR 625/2x20 M20 34,0 40,0 70 50 114,0 60 625 42 - 3 -
