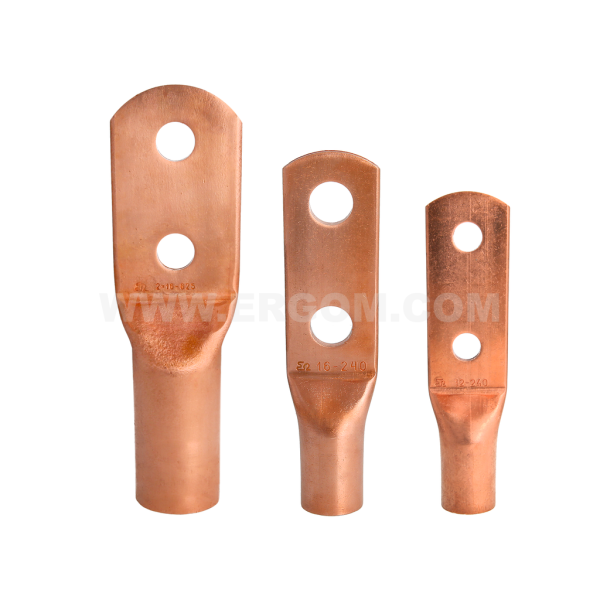

Tubular cable lugs for 2 bolts KM ... 2X type

Tubular cable lugs for 2 bolts KM ... 2X type

Main data of the product series

Product name
Tubular cable lugs for 2 bolts KM ... 2X type
Category
Ring
Surface
uncoated
Material
Cu
Note!
Sector-shaped conductors (sm) must be rounded with special dies. On special request, elements can be bent at 45° (K45L…2X) or 90° (K90L…2X) with an extended fin (screw spacing on request). For crimping cable lugs on cables of 5 class conductors, we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KM 50/2x10 E11KM-01010300100 20 1 pcs. Price on request
KM 50/2x12 E11KM-01010300200 20 1 pcs. Price on request
KM 70/2x10 E11KM-01010300300 20 1 pcs. Price on request
KM 70/2x12 E11KM-01010300400 20 1 pcs. Price on request
KM 95/2x10 E11KM-01010300500 20 1 pcs. Price on request
KM 95/2x12 E11KM-01010300600 20 1 pcs. Price on request
KM 120/2x12-50 E11KM-01010300700 20 1 pcs. Price on request
KM 120/2x12-60 E11KM-01010300800 20 1 pcs. Price on request
KM 150/2x12 E11KM-01010300900 20 1 pcs. Price on request
KM 185/2x12 E11KM-01010301000 20 1 pcs. Price on request
KM 240/2x12 E11KM-01010301100 20 1 pcs. Price on request
KM 240/2x16 E11KM-01010301200 20 1 pcs. Price on request
KM 300/2x12 E11KM-01010301300 10 1 pcs. Price on request
KM 300/2x16 E11KM-01010301400 10 1 pcs. Price on request
KM 400/2x16 E11KM-01010301500 10 1 pcs. Price on request
KM 400/2x20 E11KM-01010301600 10 1 pcs. Price on request
KM 500/2x16 E11KM-01010301700 10 1 pcs. Price on request
KM 500/2x20 E11KM-01010301800 10 1 pcs. Price on request
KM 625/2x16 E11KM-01010301900 10 1 pcs. Price on request
KM 625/2x20 E11KM-01010302000 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface uncoated
Wykonanie standard
Name Screw hole d D a C E W Cross-section, rm/sm [mm²] Socket code no. - 2 class Socket code no. - 5 class Number of crimping - wide Number of crimping - narrow
KM 50/2x10 M10 10,0 14,0 19 30 39,0 20 50 14 FL50 1 2
KM 50/2x12 M12 10,0 14,0 19 30 39,0 20 50 14 FL50 1 2
KM 70/2x10 M10 12,0 16,5 21 50 43,0 25 70 16 FL70 1 2
KM 70/2x12 M12 12,0 16,5 21 50 43,0 25 70 16 FL70 1 2
KM 95/2x10 M10 13,5 18,0 24 50 47,0 25 95 17 FL95 1 2
KM 95/2x12 M12 13,5 18,0 24 50 47,0 25 95 17 FL95 1 2
KM 120/2x12-50 M12 15,0 19,5 26 50 54,0 28 120 19 FL120 1 2
KM 120/2x12-60 M12 15,0 19,5 26 60 54,0 28 120 19 FL120 1 2
KM 150/2x12 M12 16,5 21,0 29 50 54,0 28 150 20 FL150 2 3
KM 185/2x12 M12 19,0 24,0 30 50 56,0 35 185 23 FL185 2 3
KM 240/2x12 M12 21,0 26,0 38 50 73,5 38 240 25 FL240 2 4
KM 240/2x16 M16 21,0 26,0 38 50 73,5 38 240 25 FL240 2 4
KM 300/2x12 M12 24,0 30,0 45 50 82,5 43 300 28 FL300 2 6
KM 300/2x16 M16 24,0 30,0 45 50 82,5 43 300 28 FL300 2 6
KM 400/2x16 M16 27,5 33,5 50 50 90,0 49 400 32 - 2 -
KM 400/2x20 M20 27,5 33,5 50 50 90,0 49 400 32 - 2 -
KM 500/2x16 M16 31,0 38,0 70 50 112,5 55 500 36 - 3 -
KM 500/2x20 M20 31,0 38,0 70 50 112,5 55 500 36 - 3 -
KM 625/2x16 M16 34,0 40,0 70 50 114,0 60 625 42 - 3 -
KM 625/2x20 M20 34,0 40,0 70 50 114,0 60 625 42 - 3 -

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_rurowe_z_dwoma_otworami_pod_sruby_typu_KM_2X_EN.pdf EN 04-07-2025 324.57 KB PDF Download
Catalog card ERGOM_Koncowki_rurowe_z_dwoma_otworami_pod_sruby_typu_KM_2X_PL.pdf PL 04-07-2025 340.81 KB PDF Download
