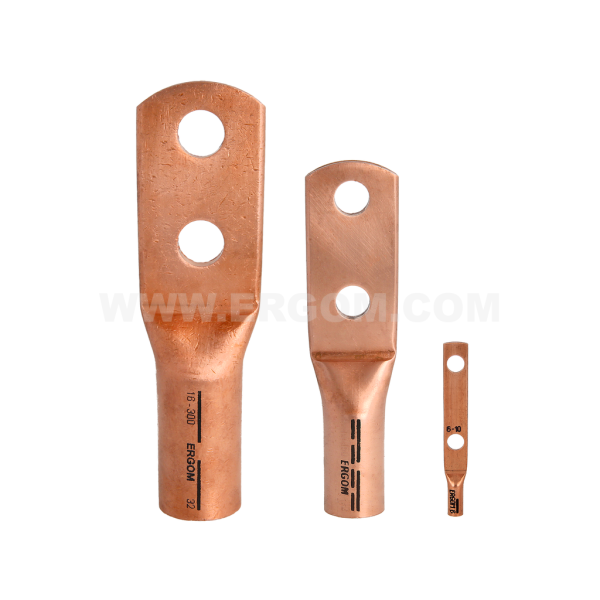

Tubular cable lugs for 2 bolts, KDM...2X type

Tubular cable lugs for 2 bolts, KDM...2X type

Main data of the product series

Product name
Tubular cable lugs for 2 bolts, KDM...2X type
Category
Ring
Surface
uncoated
Material
Cu
Note!
Sector-shaped conductors (sm) must be rounded with special dies. Other sizes on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KDM 10/2x6 E11KM-02010200100 20 1 pcs. Price on request
KDM 16/2x8 E11KM-02010200200 20 1 pcs. Price on request
KDM 25/2x10 E11KM-02010200300 20 1 pcs. Price on request
KDM 35/2x10 E11KM-02010200400 20 1 pcs. Price on request
KDM 50/2x10 E11KM-02010200500 20 1 pcs. Price on request
KDM 50/2x12 E11KM-02010200600 20 1 pcs. Price on request
KDM 70/2x10 E11KM-02010200700 20 1 pcs. Price on request
KDM 70/2x12 E11KM-02010200800 20 1 pcs. Price on request
KDM 95/2x12 E11KM-02010200900 20 1 pcs. Price on request
KDM 120/2x12 E11KM-02010201000 20 1 pcs. Price on request
KDM 150/2x12 E11KM-02010201100 20 1 pcs. Price on request
KDM 185/2x12 E11KM-02010201200 20 1 pcs. Price on request
KDM 240/2x16 E11KM-02010201300 20 1 pcs. Price on request
KDM 300/2x16 E11KM-02010201400 10 1 pcs. Price on request
KDM 400/2x16 E11KM-02010201500 10 1 pcs. Price on request
KDM 400/2x16-50 E11KM-02010201600 10 1 pcs. Price on request
KDM 500/2x16 E11KM-02010201700 10 1 pcs. Price on request
KDM 500/2x16-50 E11KM-02010201800 10 1 pcs. Price on request
KDM 625/2x16 E11KM-02010201900 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface uncoated
Wykonanie DIN 46235 – concerns only the tubular part
Name Screw hole d D a C E W Cross-section, rm/sm [mm²] Socket code no. Number of crimping - wide Number of crimping - narrow
KDM 10/2x6 M6 4,5 6,0 12 30 27 9,0 10 6 - 1
KDM 16/2x8 M8 5,5 8,5 20 30 36 13,0 16 8 1 2
KDM 25/2x10 M10 7,0 10,0 20 30 38 17,0 25 10 1 2
KDM 35/2x10 M10 8,2 12,5 20 30 42 19,0 35 12 1 2
KDM 50/2x10 M10 10,0 14,5 28 30 52 20,0 50 14 2 3
KDM 50/2x12 M12 10,0 14,5 28 30 52 20,0 50 14 2 3
KDM 70/2x10 M10 11,5 16,5 28 40 55 24,0 70 16 2 3
KDM 70/2x12 M12 11,5 16,5 28 40 55 24,0 70 16 2 3
KDM 95/2x12 M12 13,5 19,0 35 40 65 28,0 95 18 2 4
KDM 120/2x12 M12 15,5 21,0 35 40 70 32,0 120 20 2 4
KDM 150/2x12 M12 17,0 23,5 40 40 78 34,0 150 22 2 4
KDM 185/2x12 M12 19,0 25,5 42 40 82 37,0 185 25 2 5
KDM 240/2x16 M16 21,5 29,0 42 40 92 42,0 240 28 2 5
KDM 300/2x16 M16 24,5 32,0 50 40 104 45,0 300 32 2 -
KDM 400/2x16 M16 22,5 38,5 70 40 115 55,0 400 38 3 -
KDM 400/2x16-50 M16 27,5 38,5 70 50 115 55,0 400 38 3 -
KDM 500/2x16 M16 31,0 42,0 70 40 125 60,0 500 42 3 -
KDM 500/2x16-50 M16 31,0 42,0 70 50 125 60,0 500 42 3 -
KDM 625/2x16 M16 34,5 44,0 80 40 135 60,0 625 44 3 -
