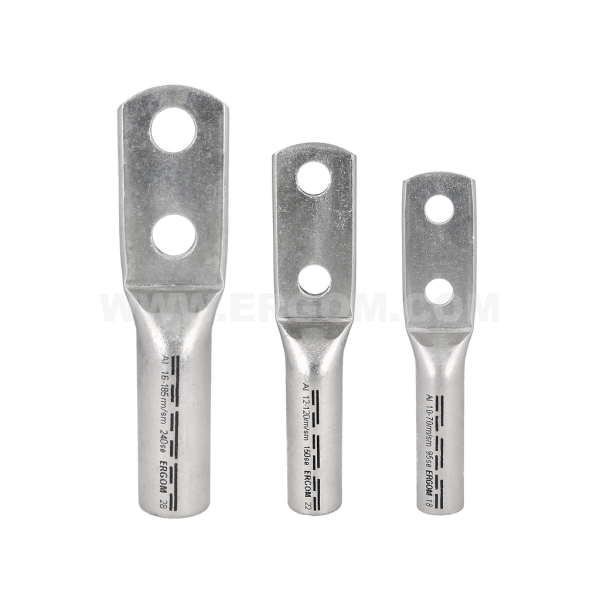

Tubular cable lugs for 2 bolts, KDA...2X type

Tubular cable lugs for 2 bolts, KDA...2X type

Main data of the product series

Product name
Tubular cable lugs for 2 bolts, KDA...2X type
Category
Ring
Surface
uncoated
Material
Al
Note!
- cable lugs are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies. Without contact grease on request.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
KDA 25/2x10 E12KA-01030400020 10 1 pcs. Price on request
KDA 35/2x10 E12KA-01030400040 10 1 pcs. Price on request
KDA 50/2x12 E12KA-01030400060 10 1 pcs. Price on request
KDA 70/2x10 E12KA-01030400100 10 1 pcs. Price on request
KDA 70/2x12 E12KA-01030400120 10 1 pcs. Price on request
KDA 95/2x12 E12KA-01030400140 10 1 pcs. Price on request
KDA 120/2x12 E12KA-01030400200 10 1 pcs. Price on request
KDA 120/2x16 E12KA-01030400300 10 1 pcs. Price on request
KDA 150/2x12 E12KA-01030400400 10 1 pcs. Price on request
KDA 150/2x16 E12KA-01030400500 10 1 pcs. Price on request
KDA 185/2x12 E12KA-01030400600 10 1 pcs. Price on request
KDA 185/2x16 E12KA-01030400700 10 1 pcs. Price on request
KDA 240/2x12 E12KA-01030400800 10 1 pcs. Price on request
KDA 240/2x16 E12KA-01030400900 10 1 pcs. Price on request
KDA 300/2x12 E12KA-01030401000 10 1 pcs. Price on request
KDA 300/2x16 E12KA-01030401100 10 1 pcs. Price on request
KDA 400/2x12 E12KA-01030401200 10 1 pcs. Price on request
KDA 400/2x16 E12KA-01030401300 10 1 pcs. Price on request
KDA 500/2x12 E12KA-01030401400 10 1 pcs. Price on request
KDA 500/2x16 E12KA-01030401410 10 1 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Al
Surface uncoated
Wykonanie DIN 46329 – concerns only the tubular part
Name Screw hole d D c1 c2 a C E W Cross-section, rm/sm [mm²] Cross-section, re/se [mm²] Nr gniazda - 2 klasa (RM/RMC) Nr gniazda - 2 klasa (RMC) Number of crimping - wide Number of crimping - narrow
KDA 25/2x10 M10 6,8 12,0 14,0 14,0 30 30 60 19 25 16 12 MW25 2 4
KDA 35/2x10 M10 8,0 14,0 14,0 14,0 42 30 68 24 35 25 14 MW35 3 5
KDA 50/2x12 M12 9,8 16,0 14,0 14,0 42 30 72 23 50 35 16 MW50 3 5
KDA 70/2x10 M10 11,2 18,5 14,0 14,0 52 30 83 28 70 50 18 MW70 3 6
KDA 70/2x12 M12 11,2 18,5 14,0 14,0 52 30 83 28 70 70 18 MW70 3 6
KDA 95/2x12 M12 13,2 22,0 14,0 14,0 56 40 91 34 95 95 22 MW95 3 6
KDA 120/2x12 M12 14,7 23,0 14,0 14,0 56 40 94 33 120 150 22 MW120 3 6
KDA 120/2x16 M16 14,7 23,0 17,0 14,0 56 40 94 33 120 150 22 MW120 3 6
KDA 150/2x12 M12 16,3 25,0 14,0 20,0 60 40 99 37 150 185 25 MW150 3 6
KDA 150/2x16 M16 16,3 25,0 14,0 20,0 60 40 102 37 150 185 25 MW150 3 6
KDA 185/2x12 M12 18,3 28,5 14,0 20,0 60 40 111 41 185 240 28 MW185 3 6
KDA 185/2x16 M16 18,3 28,5 17,0 20,0 60 40 114 41 185 240 28 MW185 3 6
KDA 240/2x12 M12 21,0 32,0 17,0 20,0 70 40 111 45 240 300 32 MW240 3 8
KDA 240/2x16 M16 21,0 32,0 17,0 20,0 70 40 114 47 240 300 32 MW240 3 8
KDA 300/2x12 M12 23,3 34,0 14,0 20,0 70 40 117 50 300 - 34 MW300 3 8
KDA 300/2x16 M16 23,3 34,0 16,0 20,0 70 40 120 50 300 - 34 MW300 3 8
KDA 400/2x12 M12 26,0 38,5 20,0 20,0 100 40 165 60 400 - 38 - 4 -
KDA 400/2x16 M16 26,0 38,5 25,0 20,0 100 40 165 60 400 - 38 - 4 -
KDA 500/2x12 M12 29,0 44,0 25,0 20,0 120 40 185 63 500 - 44 - 5 -
KDA 500/2x16 M16 29,0 44,0 25,0 20,0 120 40 185 63 500 - 44 - 5 -

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_rurowe_z_dwoma_otworami_pod_sruby_typu_KDA_2X_EN.pdf EN 26-09-2025 352.97 KB PDF Download
Catalog card ERGOM_Koncowki_rurowe_z_dwoma_otworami_pod_sruby_typu_KDA_2X_PL.pdf PL 05-09-2025 371.78 KB PDF Download
