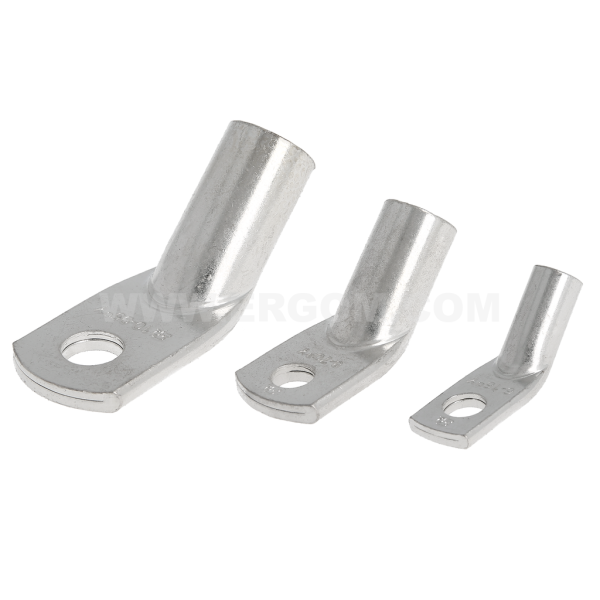

Tubular angle cable lugs with inspection hole, K45Ro type

Tubular angle cable lugs with inspection hole, K45Ro type

Main data of the product series

Product name
Tubular angle cable lugs with inspection hole, K45Ro type
Category
Angular
Surface
tin-plated

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
K45Ro 10/5 E11KM-01051100100 100 100 pcs. Price on request
K45Ro 10/6 E11KM-01051100200 100 100 pcs. Price on request
K45Ro 10/8 E11KM-01051100300 100 100 pcs. Price on request
K45Ro 10/10 E11KM-01051100400 100 100 pcs. Price on request
K45Ro 10/12 E11KM-01051100500 100 100 pcs. Price on request
K45Ro 16/5 E11KM-01051100600 100 100 pcs. Price on request
K45Ro 16/6 E11KM-01051100700 100 100 pcs. Price on request
K45Ro 16/8 E11KM-01051100800 100 100 pcs. Price on request
K45Ro 16/10 E11KM-01051100900 100 100 pcs. Price on request
K45Ro 16/12 E11KM-01051101000 100 100 pcs. Price on request
K45Ro 25/5 E11KM-01051101100 100 100 pcs. Price on request
K45Ro 25/6 E11KM-01051101200 100 100 pcs. Price on request
K45Ro 25/8 E11KM-01051101300 100 100 pcs. Price on request
K45Ro 25/10 E11KM-01051101400 100 100 pcs. Price on request
K45Ro 25/12 E11KM-01051101500 100 100 pcs. Price on request
K45Ro 25/14 E11KM-01051101600 100 100 pcs. Price on request
K45Ro 35/6 E11KM-01051101700 100 100 pcs. Price on request
K45Ro 35/8 E11KM-01051101800 100 100 pcs. Price on request
K45Ro 35/10 E11KM-01051101900 100 100 pcs. Price on request
K45Ro 35/12 E11KM-01051102000 100 100 pcs. Price on request
K45Ro 35/14 E11KM-01051102100 100 100 pcs. Price on request
K45Ro 35/16 E11KM-01051102200 100 100 pcs. Price on request
K45Ro 50/6 E11KM-01051102300 100 100 pcs. Price on request
K45Ro 50/8 E11KM-01051102400 100 100 pcs. Price on request
K45Ro 50/10 E11KM-01051102500 100 100 pcs. Price on request
K45Ro 50/12 E11KM-01051102600 100 100 pcs. Price on request
K45Ro 50/14 E11KM-01051102700 100 100 pcs. Price on request
K45Ro 50/16 E11KM-01051102800 100 100 pcs. Price on request
K45Ro 50/20 E11KM-01051102900 100 100 pcs. Price on request
K45Ro 70/6 E11KM-01051103000 100 100 pcs. Price on request
K45Ro 70/8 E11KM-01051103100 100 100 pcs. Price on request
K45Ro 70/10 E11KM-01051103200 100 100 pcs. Price on request
K45Ro 70/12 E11KM-01051103300 100 100 pcs. Price on request
K45Ro 70/14 E11KM-01051103400 100 100 pcs. Price on request
K45Ro 70/16 E11KM-01051103500 100 100 pcs. Price on request
K45Ro 70/20 E11KM-01051103600 100 100 pcs. Price on request
K45Ro 95/8 E11KM-01051103700 50 50 pcs. Price on request
K45Ro 95/10 E11KM-01051103800 50 50 pcs. Price on request
K45Ro 95/12 E11KM-01051103900 50 50 pcs. Price on request
K45Ro 95/14 E11KM-01051104000 50 50 pcs. Price on request
K45Ro 95/16 E11KM-01051104100 50 50 pcs. Price on request
K45Ro 95/20 E11KM-01051104200 50 50 pcs. Price on request
K45Ro 120/8 E11KM-01051104300 50 50 pcs. Price on request
K45Ro 120/10 E11KM-01051104400 50 50 pcs. Price on request
K45Ro 120/12 E11KM-01051104500 50 50 pcs. Price on request
K45Ro 120/14 E11KM-01051104600 50 50 pcs. Price on request
K45Ro 120/16 E11KM-01051104700 50 50 pcs. Price on request
K45Ro 120/20 E11KM-01051104800 50 50 pcs. Price on request
K45Ro 150/8 E11KM-01051104900 50 50 pcs. Price on request
K45Ro 150/10 E11KM-01051105000 50 50 pcs. Price on request
K45Ro 150/12 E11KM-01051105100 50 50 pcs. Price on request
K45Ro 150/14 E11KM-01051105200 50 50 pcs. Price on request
K45Ro 150/16 E11KM-01051105300 50 50 pcs. Price on request
K45Ro 150/20 E11KM-01051105400 50 50 pcs. Price on request
K45Ro 185/10 E11KM-01051105500 50 50 pcs. Price on request
K45Ro 185/12 E11KM-01051105600 50 50 pcs. Price on request
K45Ro 185/14 E11KM-01051105700 50 50 pcs. Price on request
K45Ro 185/16 E11KM-01051105800 50 50 pcs. Price on request
K45Ro 185/20 E11KM-01051105900 50 50 pcs. Price on request
K45Ro 240/10 E11KM-01051106000 50 50 pcs. Price on request
K45Ro 240/12 E11KM-01051106100 50 50 pcs. Price on request
K45Ro 240/14 E11KM-01051106200 50 50 pcs. Price on request
K45Ro 240/16 E11KM-01051106300 50 50 pcs. Price on request
K45Ro 240/20 E11KM-01051106400 50 50 pcs. Price on request
K45Ro 300/12 E11KM-01051106600 10 10 pcs. Price on request
K45Ro 300/16 E11KM-01051106700 10 10 pcs. Price on request
K45Ro 300/20 E11KM-01051106800 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Certyfikat UL E475284 (according to table in the technical data sheet)
Wykonanie standard
Name Screw hole UL d D a c1 c2 W Cross-section, rm/sm [mm²] Socket code no. - 2 class Socket code no. - 5 class Number of crimping - wide Number of crimping - narrow
K45Ro 10/5 M5 − 4,5 7,0 10 7,0 10,0 12,0 10 7 FL10 1 1
K45Ro 10/6 M6 − 4,5 7,0 10 7,5 10,0 12,0 10 7 FL10 1 1
K45Ro 10/8 M8 − 4,5 7,0 10 9,0 13,0 15,0 10 7 FL10 1 1
K45Ro 10/10 M10 − 4,5 7,0 10 11,0 15,0 17,0 10 7 FL10 1 1
K45Ro 10/12 M12 − 4,5 7,0 10 12,0 15,0 19,0 10 7 FL10 1 1
K45Ro 16/5 M5 − 5,5 8,5 13 7,0 10,0 12,0 16 8 FL16 1 2
K45Ro 16/6 M6 √ 5,5 8,5 13 7,5 10,0 12,0 16 8 FL16 1 2
K45Ro 16/8 M8 √ 5,5 8,5 13 9,0 13,0 15,0 16 8 FL16 1 2
K45Ro 16/10 M10 √ 5,5 8,5 13 11,0 15,0 17,0 16 8 FL16 1 2
K45Ro 16/12 M12 √ 5,5 8,5 13 12,0 15,0 19,0 16 8 FL16 1 2
K45Ro 25/5 M5 √ 7,0 10,0 15 7,5 10,0 14,0 25 10 FL25 1 2
K45Ro 25/6 M6 √ 7,0 10,0 15 7,5 10,0 14,0 25 10 FL25 1 2
K45Ro 25/8 M8 √ 7,0 10,0 15 9,0 13,0 16,0 25 10 FL25 1 2
K45Ro 25/10 M10 √ 7,0 10,0 15 11,0 15,0 18,0 25 10 FL25 1 2
K45Ro 25/12 M12 √ 7,0 10,0 15 12,0 15,0 19,0 25 10 FL25 1 2
K45Ro 25/14 M14 √ 7,0 10,0 15 14,0 18,0 21,0 25 10 FL25 1 2
K45Ro 35/6 M6 √ 8,5 12,0 17 7,5 10,0 18,0 35 12 FL35 1 2
K45Ro 35/8 M8 √ 8,5 12,0 17 9,0 13,0 18,0 35 12 FL35 1 2
K45Ro 35/10 M10 √ 8,5 12,0 17 11,0 15,0 18,0 35 12 FL35 1 2
K45Ro 35/12 M12 √ 8,5 12,0 17 12,0 15,0 20,0 35 12 FL35 1 2
K45Ro 35/14 M14 √ 8,5 12,0 17 14,0 18,0 21,0 35 12 FL35 1 2
K45Ro 35/16 M16 √ 8,5 12,0 17 16,0 18,0 26,0 35 12 FL35 1 2
K45Ro 50/6 M6 √ 10,0 14,0 19 7,5 10,0 20,0 50 14 FL50 1 2
K45Ro 50/8 M8 √ 10,0 14,0 19 9,0 13,0 20,0 50 14 FL50 1 2
K45Ro 50/10 M10 √ 10,0 14,0 19 11,0 15,0 20,0 50 14 FL50 1 2
K45Ro 50/12 M12 √ 10,0 14,0 19 12,0 15,0 23,0 50 14 FL50 1 2
K45Ro 50/14 M14 √ 10,0 14,0 19 14,0 18,0 23,0 50 14 FL50 1 2
K45Ro 50/16 M16 √ 10,0 14,0 19 16,0 18,0 28,0 50 14 FL50 1 2
K45Ro 50/20 M20 √ 10,0 14,0 19 20,0 22,0 30,0 50 14 FL50 1 2
K45Ro 70/6 M6 √ 12,0 16,5 21 7,5 10,0 23,0 70 16 FL70 1 2
K45Ro 70/8 M8 √ 12,0 16,5 21 9,0 13,0 23,0 70 16 FL70 1 2
K45Ro 70/10 M10 √ 12,0 16,5 21 11,0 15,0 23,0 70 16 FL70 1 2
K45Ro 70/12 M12 √ 12,0 16,5 21 11,0 15,0 23,0 70 16 FL70 1 2
K45Ro 70/14 M14 √ 12,0 16,5 21 14,0 18,0 28,0 70 16 FL70 1 2
K45Ro 70/16 M16 √ 12,0 16,5 21 16,0 18,0 28,0 70 16 FL70 1 2
K45Ro 70/20 M20 √ 12,0 16,5 21 20,0 22,0 30,0 70 16 FL70 1 2
K45Ro 95/8 M8 √ 13,5 18,0 24 12,0 16,0 26,0 95 17 FL95 1 2
K45Ro 95/10 M10 √ 13,5 18,0 24 12,0 17,0 26,0 95 17 FL95 1 2
K45Ro 95/12 M12 √ 13,5 18,0 24 12,0 18,0 26,0 95 17 FL95 1 2
K45Ro 95/14 M14 √ 13,5 18,0 24 16,0 20,0 26,0 95 17 FL95 1 2
K45Ro 95/16 M16 √ 13,5 18,0 24 16,0 22,0 29,0 95 17 FL95 1 2
K45Ro 95/20 M20 √ 13,5 18,0 24 20,0 24,0 35,0 95 17 FL95 1 2
K45Ro 120/8 M8 √ 15,0 19,5 26 12,0 16,0 28,0 120 19 FL120 1 2
K45Ro 120/10 M10 √ 15,0 19,5 26 12,0 17,0 29,0 120 19 FL120 1 2
K45Ro 120/12 M12 √ 15,0 19,5 26 12,0 18,0 29,0 120 19 FL120 1 2
K45Ro 120/14 M14 √ 15,0 19,5 26 16,0 20,0 29,0 120 19 FL120 1 2
K45Ro 120/16 M16 √ 15,0 19,5 26 16,0 22,0 29,0 120 19 FL120 1 2
K45Ro 120/20 M20 √ 15,0 19,5 26 20,0 24,0 35,0 120 19 FL120 1 2
K45Ro 150/8 M8 √ 16,5 21,0 30 12,0 16,0 31,0 150 20 FL150 1 2
K45Ro 150/10 M10 √ 16,5 21,0 30 12,0 17,0 31,0 150 20 FL150 1 2
K45Ro 150/12 M12 √ 16,5 21,0 30 12,0 18,0 31,0 150 20 FL150 1 2
K45Ro 150/14 M14 √ 16,5 21,0 30 16,0 20,0 31,0 150 20 FL150 1 2
K45Ro 150/16 M16 √ 16,5 21,0 30 16,0 22,0 31,0 150 20 FL150 1 2
K45Ro 150/20 M20 √ 16,5 21,0 30 20,0 24,0 36,0 150 20 FL150 1 2
K45Ro 185/10 M10 √ 19,0 24,0 30 14,0 22,0 35,0 185 23 FL185 2 4
K45Ro 185/12 M12 √ 19,0 24,0 30 14,0 22,0 35,0 185 23 FL185 2 4
K45Ro 185/14 M14 √ 19,0 24,0 30 16,0 22,0 35,0 185 23 FL185 2 4
K45Ro 185/16 M16 √ 19,0 24,0 30 16,0 22,0 35,0 185 23 FL185 2 4
K45Ro 185/20 M20 √ 19,0 24,0 30 20,0 24,0 38,0 185 23 FL185 2 4
K45Ro 240/10 M10 √ 21,0 26,0 38 14,0 22,0 38,0 240 25 FL240 2 4
K45Ro 240/12 M12 √ 21,0 26,0 38 14,0 22,0 38,0 240 25 FL240 2 4
K45Ro 240/14 M14 √ 21,0 26,0 38 16,0 22,0 38,0 240 25 FL240 2 4
K45Ro 240/16 M16 √ 21,0 26,0 38 16,0 22,0 38,0 240 25 FL240 2 4
K45Ro 240/20 M20 √ 21,0 26,0 38 20,0 24,0 38,0 240 25 FL240 2 4
K45Ro 300/12 M12 − 24,0 30,0 45 14,0 24,0 43,0 300 28 FL300 2 -
K45Ro 300/16 M16 − 24,0 30,0 45 16,0 24,0 43,0 300 28 FL300 2 -
K45Ro 300/20 M20 − 24,0 30,0 45 20,0 24,0 43,0 300 28 FL300 2 -

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_kablowe_katowe rurowe_z_otworem_inspekcyjnym_typu_K45Ro_EN.pdf EN 04-07-2025 392.86 KB PDF Download
Catalog card ERGOM_Koncowki_kablowe_katowe rurowe_z_otworem_inspekcyjnym_typu_K45Ro_PL.pdf PL 04-07-2025 402.78 KB PDF Download
