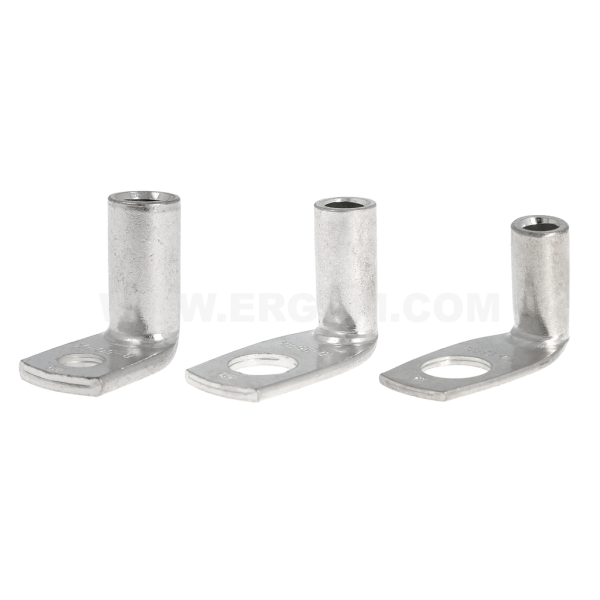

Tubular angle cable lugs, K90R type

Tubular angle cable lugs, K90R type

Main data of the product series

Product name
Tubular angle cable lugs, K90R type
Category
Angular
Material
Cu
Surface
tin-plated
Note!
Sector-shaped conductors (sm) must be rounded with special dies. Other designs on request. For crimping cable lugs on cables of 5 class conductors (from cross-section of 10 mm²), we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
K90R 6/5 E11KM-01040100020 1 100 pkt. Price on request
K90R 6/6 E11KM-01040100030 1 100 pkt. Price on request
K90R 6/8 E11KM-01040100050 1 100 pkt. Price on request
K90R 10/5 E11KM-01040100100 100 100 pcs. Price on request
K90R 10/5 E11KM-01040100102 20 10 pcs. Price on request
K90R 10/6 E11KM-01040100200 100 100 pcs. Price on request
K90R 10/6 E11KM-01040100202 10 10 pcs. Price on request
K90R 10/8 E11KM-01040100300 100 100 pcs. Price on request
K90R 10/8 E11KM-01040100302 10 10 pcs. Price on request
K90R 10/10 E11KM-01040100400 100 100 pcs. Price on request
K90R 10/10 E11KM-01040100402 10 10 pcs. Price on request
K90R 10/12 E11KM-01040100500 100 100 pcs. Price on request
K90R 10/12 E11KM-01040100502 20 10 pcs. Price on request
K90R 16/5 E11KM-01040100600 100 100 pcs. Price on request
K90R 16/5 E11KM-01040100602 20 0 pcs. Price on request
K90R 16/6 E11KM-01040100700 100 100 pcs. Price on request
K90R 16/6 E11KM-01040100702 10 10 pcs. Price on request
K90R 16/8 E11KM-01040100800 100 100 pcs. Price on request
K90R 16/8 E11KM-01040100802 10 10 pcs. Price on request
K90R 16/10 E11KM-01040100900 100 100 pcs. Price on request
K90R 16/10 E11KM-01040100902 10 10 pcs. Price on request
K90R 16/12 E11KM-01040101000 100 100 pcs. Price on request
K90R 16/12 E11KM-01040101002 10 10 pcs. Price on request
K90R 25/5 E11KM-01040101100 100 100 pcs. Price on request
K90R 25/5 E11KM-01040101102 10 0 pcs. Price on request
K90R 25/6 E11KM-01040101200 100 100 pcs. Price on request
K90R 25/6 E11KM-01040101202 10 10 pcs. Price on request
K90R 25/8 E11KM-01040101300 100 100 pcs. Price on request
K90R 25/8 E11KM-01040101302 10 10 pcs. Price on request
K90R 25/10 E11KM-01040101400 100 100 pcs. Price on request
K90R 25/10 E11KM-01040101402 10 10 pcs. Price on request
K90R 25/12 E11KM-01040101500 100 100 pcs. Price on request
K90R 25/12 E11KM-01040101502 10 10 pcs. Price on request
K90R 25/14 E11KM-01040101600 100 100 pcs. Price on request
K90R 25/14 E11KM-01040101602 10 10 pcs. Price on request
K90R 35/6 E11KM-01040101700 100 100 pcs. Price on request
K90R 35/6 E11KM-01040101702 10 10 pcs. Price on request
K90R 35/8 E11KM-01040101800 100 100 pcs. Price on request
K90R 35/8 E11KM-01040101802 10 10 pcs. Price on request
K90R 35/10 E11KM-01040101900 100 100 pcs. Price on request
K90R 35/10 E11KM-01040101902 10 10 pcs. Price on request
K90R 35/12 E11KM-01040102000 100 100 pcs. Price on request
K90R 35/12 E11KM-01040102002 20 10 pcs. Price on request
K90R 35/14 E11KM-01040102100 100 100 pcs. Price on request
K90R 35/14 E11KM-01040102102 20 10 pcs. Price on request
K90R 50/6 E11KM-01040102200 100 100 pcs. Price on request
K90R 50/6 E11KM-01040102202 10 10 pcs. Price on request
K90R 50/8 E11KM-01040102300 100 100 pcs. Price on request
K90R 50/8 E11KM-01040102302 10 10 pcs. Price on request
K90R 50/10 E11KM-01040102400 100 100 pcs. Price on request
K90R 50/10 E11KM-01040102402 10 10 pcs. Price on request
K90R 50/12 E11KM-01040102500 100 100 pcs. Price on request
K90R 50/12 E11KM-01040102502 10 10 pcs. Price on request
K90R 50/14 E11KM-01040102600 100 100 pcs. Price on request
K90R 50/14 E11KM-01040102602 20 10 pcs. Price on request
K90R 50/16 E11KM-01040102700 100 100 pcs. Price on request
K90R 50/16 E11KM-01040102702 20 10 pcs. Price on request
K90R 70/6 E11KM-01040102800 100 100 pcs. Price on request
K90R 70/6 E11KM-01040102802 20 10 pcs. Price on request
K90R 70/8 E11KM-01040102900 100 100 pcs. Price on request
K90R 70/8 E11KM-01040102902 10 10 pcs. Price on request
K90R 70/10 E11KM-01040103000 100 100 pcs. Price on request
K90R 70/10 E11KM-01040103002 10 10 pcs. Price on request
K90R 70/12 E11KM-01040103100 100 100 pcs. Price on request
K90R 70/12 E11KM-01040103102 10 10 pcs. Price on request
K90R 70/14 E11KM-01040103200 100 100 pcs. Price on request
K90R 70/14 E11KM-01040103202 10 10 pcs. Price on request
K90R 70/16 E11KM-01040103300 100 100 pcs. Price on request
K90R 70/16 E11KM-01040103302 10 10 pcs. Price on request
K90R 95/8 E11KM-01040103400 50 50 pcs. Price on request
K90R 95/8 E11KM-01040103402 10 10 pcs. Price on request
K90R 95/10 E11KM-01040103500 50 50 pcs. Price on request
K90R 95/10 E11KM-01040103502 10 10 pcs. Price on request
K90R 95/12 E11KM-01040103600 50 50 pcs. Price on request
K90R 95/12 E11KM-01040103602 10 10 pcs. Price on request
K90R 95/14 E11KM-01040103700 50 50 pcs. Price on request
K90R 95/14 E11KM-01040103702 10 10 pcs. Price on request
K90R 95/16 E11KM-01040103800 100 50 pcs. Price on request
K90R 95/16 E11KM-01040103802 50 10 pcs. Price on request
K90R 95/20 E11KM-01040103900 100 50 pcs. Price on request
K90R 95/20 E11KM-01040103902 50 10 pcs. Price on request
K90R 120/8 E11KM-01040103950 50 50 pcs. Price on request
K90R 120/8 E11KM-01040103952 10 10 pcs. Price on request
K90R 120/10 E11KM-01040104000 50 50 pcs. Price on request
K90R 120/10 E11KM-01040104002 10 10 pcs. Price on request
K90R 120/12 E11KM-01040104100 50 50 pcs. Price on request
K90R 120/12 E11KM-01040104102 10 10 pcs. Price on request
K90R 120/16 E11KM-01040104300 100 50 pcs. Price on request
K90R 120/16 E11KM-01040104302 50 10 pcs. Price on request
K90R 120/20 E11KM-01040104400 50 50 pcs. Price on request
K90R 120/20 E11KM-01040104402 10 10 pcs. Price on request
K90R 150/10 E11KM-01040104500 50 50 pcs. Price on request
K90R 150/10 E11KM-01040104502 10 10 pcs. Price on request
K90R 150/12 E11KM-01040104600 50 50 pcs. Price on request
K90R 150/12 E11KM-01040104602 10 10 pcs. Price on request
K90R 150/14 E11KM-01040104700 50 50 pcs. Price on request
K90R 150/14 E11KM-01040104702 10 10 pcs. Price on request
K90R 150/16 E11KM-01040104800 100 50 pcs. Price on request
K90R 150/16 E11KM-01040104802 50 10 pcs. Price on request
K90R 150/20 E11KM-01040104900 100 50 pcs. Price on request
K90R 150/20 E11KM-01040104902 50 10 pcs. Price on request
K90R 185/10 E11KM-01040104950 50 50 pcs. Price on request
K90R 185/10 E11KM-01040104952 10 10 pcs. Price on request
K90R 185/12 E11KM-01040105000 50 50 pcs. Price on request
K90R 185/12 E11KM-01040105002 10 10 pcs. Price on request
K90R 185/14 E11KM-01040105100 50 50 pcs. Price on request
K90R 185/14 E11KM-01040105102 10 10 pcs. Price on request
K90R 185/16 E11KM-01040105200 100 50 pcs. Price on request
K90R 185/16 E11KM-01040105202 50 10 pcs. Price on request
K90R 185/20 E11KM-01040105300 100 50 pcs. Price on request
K90R 185/20 E11KM-01040105302 50 10 pcs. Price on request
K90R 240/10 E11KM-01040105350 50 50 pcs. Price on request
K90R 240/10 E11KM-01040105352 10 10 pcs. Price on request
K90R 240/12 E11KM-01040105400 50 50 pcs. Price on request
K90R 240/12 E11KM-01040105402 10 10 pcs. Price on request
K90R 240/14 E11KM-01040105500 100 50 pcs. Price on request
K90R 240/14 E11KM-01040105502 50 10 pcs. Price on request
K90R 240/16 E11KM-01040105600 100 50 pcs. Price on request
K90R 240/16 E11KM-01040105602 50 10 pcs. Price on request
K90R 240/20 E11KM-01040105700 100 50 pcs. Price on request
K90R 240/20 E11KM-01040105702 50 10 pcs. Price on request
K90R 300/12 E11KM-01040105802 10 10 pcs. Price on request
K90R 300/16 E11KM-01040106002 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Normy EN IEC 61238-1-1:2019 EN IEC 61238-1-3:2019 - mechanical strength Class 1 - short-circuit resistance Class A for range of rated cross-section 10 - 240 mm²
Certyfikat UL E475284 (according to table in the technical data sheet)
Wykonanie standard
Name Screw hole UL d D a c1 c2 W H Cross-section, rm/sm [mm²] Socket code no. - 2 class Socket code no. - 5 class Number of crimping - wide Number of crimping - narrow
K90R 6/5 M5 − 4,0 6,0 10 7,0 10 9 13,0 6 4 - 1 1
K90R 6/6 M6 − 4,0 6,0 10 7,5 10 9 13,0 6 4 - 1 1
K90R 6/8 M8 − 4,0 6,0 10 9,0 13 12 13,0 6 4 - 1 1
K90R 10/5 M5 − 4,5 7,0 10 7,5 10,0 12,0 15,0 10 7 FL10 1 1
K90R 10/6 M6 − 4,5 7,0 10 7,5 10,0 12,0 15,0 10 7 FL10 1 1
K90R 10/8 M8 − 4,5 7,0 10 9,0 13,0 15,0 15,0 10 7 FL10 1 1
K90R 10/10 M10 − 4,5 7,0 10 11,0 15,0 17,0 15,0 10 7 FL10 1 1
K90R 10/12 M12 − 4,5 7,0 10 12,0 15,0 19,0 15,0 10 7 FL10 1 1
K90R 16/5 M5 √ 5,5 8,5 13 7,0 10,0 12,0 20,0 16 8 FL16 1 2
K90R 16/6 M6 √ 5,5 8,5 13 7,5 10,0 12,0 20,0 16 8 FL16 1 2
K90R 16/8 M8 √ 5,5 8,5 13 9,0 13,0 15,0 20,0 16 8 FL16 1 2
K90R 16/10 M10 √ 5,5 8,5 13 11,0 15,0 17,0 20,0 16 8 FL16 1 2
K90R 16/12 M12 √ 5,5 8,5 13 12,0 15,0 19,0 20,0 16 8 FL16 1 2
K90R 25/5 M5 √ 7,0 10,0 15 7,0 10,0 14,0 23,5 25 10 FL25 1 2
K90R 25/6 M6 √ 7,0 10,0 15 7,5 10,0 14,0 23,5 25 10 FL25 1 2
K90R 25/8 M8 √ 7,0 10,0 15 9,0 13,0 16,0 23,5 25 10 FL25 1 2
K90R 25/10 M10 √ 7,0 10,0 15 11,0 15,0 18,0 23,5 25 10 FL25 1 2
K90R 25/12 M12 √ 7,0 10,0 15 12,0 15,0 19,0 23,5 25 10 FL25 1 2
K90R 25/14 M14 √ 7,0 10,0 15 14,0 18,0 19,0 23,5 25 10 FL25 1 2
K90R 35/6 M6 √ 8,5 12,0 17 7,5 10,0 18,0 27,0 35 12 FL35 1 2
K90R 35/8 M8 √ 8,5 12,0 17 9,0 13,0 18,0 27,0 35 12 FL35 1 2
K90R 35/10 M10 √ 8,5 12,0 17 11,0 15,0 18,0 27,0 35 12 FL35 1 2
K90R 35/12 M12 √ 8,5 12,0 17 12,0 15,0 20,0 27,0 35 12 FL35 1 2
K90R 35/14 M14 √ 8,5 12,0 17 14,0 18,0 21,0 27,0 35 12 FL35 1 2
K90R 35/14 M12 √ 8,5 12,0 17 14,0 18,0 21,0 27,0 35 12 FL35 1 2
K90R 50/6 M6 √ 10,0 14,0 19 7,5 10,0 20,0 31,0 50 14 FL50 1 2
K90R 50/8 M8 √ 10,0 14,0 19 9,0 13,0 20,0 31,0 50 14 FL50 1 2
K90R 50/10 M10 √ 10,0 14,0 19 11,0 15,0 20,0 31,0 50 14 FL50 1 2
K90R 50/12 M12 √ 10,0 14,0 19 12,0 15,0 23,0 31,0 50 14 FL50 1 2
K90R 50/14 M14 √ 10,0 14,0 19 14,0 18,0 23,0 31,0 50 14 FL50 1 2
K90R 50/16 M16 √ 10,0 14,0 19 16,0 18,0 28,0 31,0 50 14 FL50 1 2
K90R 70/6 M6 √ 12,0 16,5 21 7,5 10,0 23,0 35,0 70 16 FL70 1 2
K90R 70/8 M8 √ 12,0 16,5 21 9,0 13,0 23,0 35,0 70 16 FL70 1 2
K90R 70/10 M10 √ 12,0 16,5 21 11,0 15,0 23,0 35,0 70 16 FL70 1 2
K90R 70/12 M12 √ 12,0 16,5 21 12,0 15,0 23,0 35,0 70 16 FL70 1 2
K90R 70/14 M14 √ 12,0 16,5 21 14,0 18,0 28,0 35,0 70 16 FL70 1 2
K90R 70/16 M16 √ 12,0 16,5 21 16,0 18,0 28,0 35,0 70 16 FL70 1 2
K90R 95/8 M8 √ 13,5 18,0 24 12,0 16,0 26,0 37,0 95 17 FL95 1 2
K90R 95/10 M10 √ 13,5 18,0 24 12,0 17,0 26,0 37,0 95 17 FL95 1 2
K90R 95/12 M12 √ 13,5 18,0 24 12,0 18,0 26,0 37,0 95 17 FL95 1 2
K90R 95/14 M14 √ 13,5 18,0 24 16,0 20,0 26,0 37,0 95 17 FL95 1 2
K90R 95/16 M16 √ 13,5 18,0 24 16,0 22,0 29,0 37,0 95 17 FL95 1 2
K90R 95/20 M20 √ 13,5 18,0 24 20,0 24,0 35,0 37,0 95 17 FL95 1 2
K90R 120/8 M8 √ 15,0 19,5 26 12,0 16,0 28,0 43,0 120 19 FL120 1 2
K90R 120/10 M10 √ 15,0 19,5 26 12,0 17,0 29,0 43,0 120 19 FL120 1 2
K90R 120/12 M12 √ 15,0 19,5 26 12,0 18,0 29,0 43,0 120 19 FL120 1 2
K90R 120/16 M16 √ 15,0 19,5 26 16,0 22,0 29,0 43,0 120 19 FL120 1 2
K90R 120/20 M20 √ 15,0 19,5 26 20,0 24,0 35,0 43,0 120 19 FL120 1 2
K90R 150/10 M10 √ 16,5 21,0 30 12,0 17,0 31,0 41,0 150 20 FL150 2 3
K90R 150/12 M12 √ 16,5 21,0 30 12,0 18,0 31,0 41,0 150 20 FL150 2 3
K90R 150/14 M14 √ 16,5 21,0 30 16,0 20,0 31,0 41,0 150 20 FL150 2 3
K90R 150/16 M16 √ 16,5 21,0 30 16,0 22,0 31,0 41,0 150 20 FL150 2 3
K90R 150/20 M20 √ 16,5 21,0 30 20,0 24,0 36,0 41,0 150 20 FL150 2 3
K90R 185/10 M10 √ 19,0 24,0 32 14,0 22,0 35,0 46,0 185 23 FL185 2 3
K90R 185/12 M12 √ 19,0 24,0 32 14,0 22,0 35,0 46,0 185 23 FL185 2 3
K90R 185/14 M14 √ 19,0 24,0 32 16,0 22,0 35,0 46,0 185 23 FL185 2 3
K90R 185/16 M16 √ 19,0 24,0 32 16,0 22,0 35,0 46,0 185 23 FL185 2 3
K90R 185/20 M20 √ 19,0 24,0 32 20,0 24,0 38,0 46,0 185 23 FL185 2 3
K90R 240/10 M10 √ 21,0 26,0 38 14,0 22,0 38,0 53,0 240 25 FL240 2 4
K90R 240/12 M12 √ 21,0 26,0 38 14,0 22,0 38,0 53,0 240 25 FL240 2 4
K90R 240/14 M14 √ 21,0 26,0 38 16,0 22,0 38,0 53,0 240 25 FL240 2 4
K90R 240/16 M16 √ 21,0 26,0 38 16,0 22,0 38,0 53,0 240 25 FL240 2 4
K90R 240/20 M20 √ 21,0 26,0 38 20,0 24,0 38,0 53,0 240 25 FL240 2 4
K90R 300/12 M12 − 24,0 30,0 45 14,0 24,0 43,0 61,0 300 28 FL300 2 6
K90R 300/16 M16 − 24,0 30,0 45 16,0 24,0 43,0 61,0 300 28 FL300 2 6

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_katowe_rurowe_typu_K90R_EN.pdf EN 04-07-2025 554.81 KB PDF Download
Catalog card ERGOM_Koncowki_katowe_rurowe_typu_K90R_PL.pdf PL 04-07-2025 556.55 KB PDF Download
Contact us
