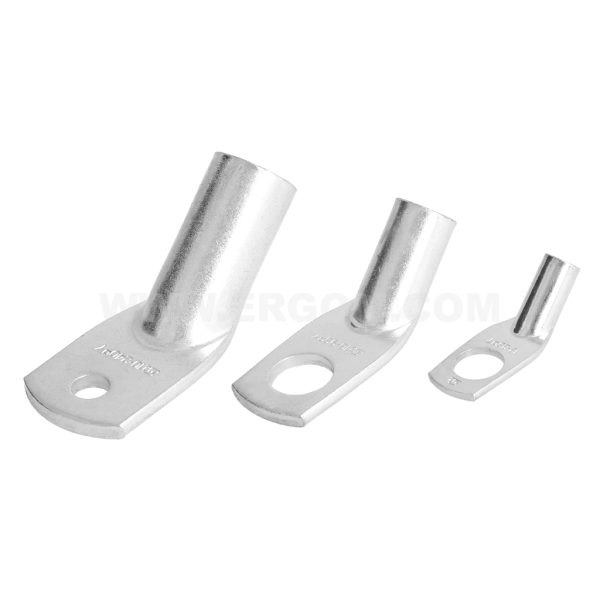

Tubular angle cable lugs, K45R type

Tubular angle cable lugs, K45R type

Main data of the product series

Product name
Tubular angle cable lugs, K45R type
Category
Angular
Surface
tin-plated
Material
Cu
Note!
Sector-shaped conductors (sm) must be rounded with special dies. On special request, elbows can be bent at 30° (K30R) or 60° (K60R) or at any other angle. For crimping cable lugs on cables of 5 class conductors (from cross-section of 10 mm²), we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
K45R 6/5 E11KM-01050090250 1 100 pkt. Price on request
K45R 6/6 E11KM-01050090300 1 100 pkt. Price on request
K45R 6/8 E11KM-01050090400 1 100 pkt. Price on request
K45R 10/5 E11KM-01050100100 100 100 pcs. Price on request
K45R 10/5 E11KM-01050100102 10 10 pcs. Price on request
K45R 10/6 E11KM-01050100200 100 100 pcs. Price on request
K45R 10/6 E11KM-01050100202 10 10 pcs. Price on request
K45R 10/8 E11KM-01050100300 100 100 pcs. Price on request
K45R 10/8 E11KM-01050100302 10 10 pcs. Price on request
K45R 10/10 E11KM-01050100400 100 100 pcs. Price on request
K45R 10/10 E11KM-01050100402 20 10 pcs. Price on request
K45R 10/12 E11KM-01050100500 100 100 pcs. Price on request
K45R 10/12 E11KM-01050100502 20 10 pcs. Price on request
K45R 16/5 E11KM-01050100600 100 100 pcs. Price on request
K45R 16/5 E11KM-01050100602 20 10 pcs. Price on request
K45R 16/6 E11KM-01050100700 100 100 pcs. Price on request
K45R 16/6 E11KM-01050100702 10 10 pcs. Price on request
K45R 16/8 E11KM-01050100800 100 100 pcs. Price on request
K45R 16/8 E11KM-01050100802 10 10 pcs. Price on request
K45R 16/10 E11KM-01050100900 100 100 pcs. Price on request
K45R 16/10 E11KM-01050100902 10 10 pcs. Price on request
K45R 16/12 E11KM-01050101000 100 100 pcs. Price on request
K45R 16/12 E11KM-01050101002 20 10 pcs. Price on request
K45R 25/5 E11KM-01050101100 100 100 pcs. Price on request
K45R 25/5 E11KM-01050101102 20 10 pcs. Price on request
K45R 25/6 E11KM-01050101200 100 100 pcs. Price on request
K45R 25/6 E11KM-01050101202 10 10 pcs. Price on request
K45R 25/8 E11KM-01050101300 100 100 pcs. Price on request
K45R 25/8 E11KM-01050101302 10 10 pcs. Price on request
K45R 25/10 E11KM-01050101400 100 100 pcs. Price on request
K45R 25/10 E11KM-01050101402 10 10 pcs. Price on request
K45R 25/12 E11KM-01050101500 100 100 pcs. Price on request
K45R 25/12 E11KM-01050101502 20 10 pcs. Price on request
K45R 25/14 E11KM-01050101600 100 100 pcs. Price on request
K45R 25/14 E11KM-01050101602 20 10 pcs. Price on request
K45R 35/6 E11KM-01050101700 100 100 pcs. Price on request
K45R 35/6 E11KM-01050101702 10 10 pcs. Price on request
K45R 35/8 E11KM-01050101800 100 100 pcs. Price on request
K45R 35/8 E11KM-01050101802 10 10 pcs. Price on request
K45R 35/10 E11KM-01050101900 100 100 pcs. Price on request
K45R 35/10 E11KM-01050101902 10 10 pcs. Price on request
K45R 35/12 E11KM-01050102000 100 100 pcs. Price on request
K45R 35/12 E11KM-01050102002 10 10 pcs. Price on request
K45R 35/14 E11KM-01050102100 100 100 pcs. Price on request
K45R 35/14 E11KM-01050102102 20 10 pcs. Price on request
K45R 35/16 E11KM-01050102200 100 100 pcs. Price on request
K45R 35/16 E11KM-01050102202 20 10 pcs. Price on request
K45R 50/6 E11KM-01050102300 100 100 pcs. Price on request
K45R 50/6 E11KM-01050102302 20 10 pcs. Price on request
K45R 50/8 E11KM-01050102400 100 100 pcs. Price on request
K45R 50/8 E11KM-01050102402 10 10 pcs. Price on request
K45R 50/10 E11KM-01050102500 100 100 pcs. Price on request
K45R 50/10 E11KM-01050102502 10 10 pcs. Price on request
K45R 50/12 E11KM-01050102600 100 100 pcs. Price on request
K45R 50/12 E11KM-01050102602 20 10 pcs. Price on request
K45R 50/14 E11KM-01050102700 100 100 pcs. Price on request
K45R 50/14 E11KM-01050102702 20 10 pcs. Price on request
K45R 50/16 E11KM-01050102800 100 100 pcs. Price on request
K45R 50/16 E11KM-01050102802 20 10 pcs. Price on request
K45R 50/20 E11KM-01050102900 100 100 pcs. Price on request
K45R 50/20 E11KM-01050102902 20 10 pcs. Price on request
K45R 70/6 E11KM-01050103000 100 100 pcs. Price on request
K45R 70/6 E11KM-01050103002 20 10 pcs. Price on request
K45R 70/8 E11KM-01050103100 100 100 pcs. Price on request
K45R 70/8 E11KM-01050103102 10 10 pcs. Price on request
K45R 70/10 E11KM-01050103200 100 100 pcs. Price on request
K45R 70/10 E11KM-01050103202 10 10 pcs. Price on request
K45R 70/12 E11KM-01050103300 100 100 pcs. Price on request
K45R 70/12 E11KM-01050103302 10 10 pcs. Price on request
K45R 70/14 E11KM-01050103400 100 100 pcs. Price on request
K45R 70/14 E11KM-01050103402 10 10 pcs. Price on request
K45R 70/16 E11KM-01050103500 100 100 pcs. Price on request
K45R 70/16 E11KM-01050103502 10 10 pcs. Price on request
K45R 70/20 E11KM-01050103600 100 100 pcs. Price on request
K45R 70/20 E11KM-01050103602 20 10 pcs. Price on request
K45R 95/8 E11KM-01050103700 50 50 pcs. Price on request
K45R 95/8 E11KM-01050103702 10 10 pcs. Price on request
K45R 95/10 E11KM-01050103800 50 50 pcs. Price on request
K45R 95/10 E11KM-01050103802 10 10 pcs. Price on request
K45R 95/12 E11KM-01050103900 50 50 pcs. Price on request
K45R 95/12 E11KM-01050103902 10 10 pcs. Price on request
K45R 95/14 E11KM-01050104000 100 50 pcs. Price on request
K45R 95/14 E11KM-01050104002 20 10 pcs. Price on request
K45R 95/16 E11KM-01050104100 100 50 pcs. Price on request
K45R 95/16 E11KM-01050104102 20 10 pcs. Price on request
K45R 95/20 E11KM-01050104200 100 50 pcs. Price on request
K45R 95/20 E11KM-01050104202 20 10 pcs. Price on request
K45R 120/8 E11KM-01050104300 100 50 pcs. Price on request
K45R 120/8 E11KM-01050104302 20 10 pcs. Price on request
K45R 120/10 E11KM-01050104400 50 50 pcs. Price on request
K45R 120/10 E11KM-01050104402 10 10 pcs. Price on request
K45R 120/12 E11KM-01050104500 50 50 pcs. Price on request
K45R 120/12 E11KM-01050104502 10 10 pcs. Price on request
K45R 120/14 E11KM-01050104600 100 50 pcs. Price on request
K45R 120/14 E11KM-01050104602 50 10 pcs. Price on request
K45R 120/16 E11KM-01050104700 50 50 pcs. Price on request
K45R 120/16 E11KM-01050104702 10 10 pcs. Price on request
K45R 120/20 E11KM-01050104800 100 50 pcs. Price on request
K45R 120/20 E11KM-01050104802 50 10 pcs. Price on request
K45R 150/8 E11KM-01050104900 50 50 pcs. Price on request
K45R 150/8 E11KM-01050104902 20 10 pcs. Price on request
K45R 150/10 E11KM-01050105000 50 50 pcs. Price on request
K45R 150/10 E11KM-01050105002 10 10 pcs. Price on request
K45R 150/12 E11KM-01050105100 50 50 pcs. Price on request
K45R 150/12 E11KM-01050105102 10 10 pcs. Price on request
K45R 150/14 E11KM-01050105200 100 50 pcs. Price on request
K45R 150/14 E11KM-01050105202 50 10 pcs. Price on request
K45R 150/16 E11KM-01050105300 100 50 pcs. Price on request
K45R 150/16 E11KM-01050105302 50 10 pcs. Price on request
K45R 150/20 E11KM-01050105400 100 50 pcs. Price on request
K45R 150/20 E11KM-01050105402 50 10 pcs. Price on request
K45R 185/10 E11KM-01050105500 50 50 pcs. Price on request
K45R 185/10 E11KM-01050105502 10 10 pcs. Price on request
K45R 185/12 E11KM-01050105600 100 50 pcs. Price on request
K45R 185/12 E11KM-01050105602 50 10 pcs. Price on request
K45R 185/14 E11KM-01050105700 100 50 pcs. Price on request
K45R 185/14 E11KM-01050105702 50 10 pcs. Price on request
K45R 185/16 E11KM-01050105800 100 50 pcs. Price on request
K45R 185/16 E11KM-01050105802 50 10 pcs. Price on request
K45R 185/20 E11KM-01050105900 100 50 pcs. Price on request
K45R 185/20 E11KM-01050105902 50 10 pcs. Price on request
K45R 240/10 E11KM-01050106000 50 50 pcs. Price on request
K45R 240/10 E11KM-01050106002 10 10 pcs. Price on request
K45R 240/12 E11KM-01050106100 50 50 pcs. Price on request
K45R 240/12 E11KM-01050106102 10 10 pcs. Price on request
K45R 240/14 E11KM-01050106200 100 50 pcs. Price on request
K45R 240/14 E11KM-01050106202 50 10 pcs. Price on request
K45R 240/16 E11KM-01050106300 100 50 pcs. Price on request
K45R 240/16 E11KM-01050106302 50 10 pcs. Price on request
K45R 240/20 E11KM-01050106400 100 50 pcs. Price on request
K45R 240/20 E11KM-01050106402 50 10 pcs. Price on request
K45R 300/12 E11KM-01050106502 10 10 pcs. Price on request
K45R 300/16 E11KM-01050106702 10 10 pcs. Price on request
K45R 300/20 E11KM-01050106802 10 10 pcs. Price on request

Selected lines: 0

Technical data

General data

Material Cu
Surface tin-plated
Normy EN IEC 61238-1-1:2019 EN IEC 61238-1-3:2019 - mechanical strength Class 1 - short-circuit resistance Class A for range of rated cross-section 10 - 240 mm²
Certyfikat UL E475284 (according to table in the technical data sheet)
Wykonanie standard
Name Screw hole UL d D a c1 c2 W Cross-section, rm/sm [mm²] Socket code no. - 2 class Socket code no. - 5 class Number of crimping - wide Number of crimping - narrow
K45R 6/5 M5 − 4,0 6,0 10 7,0 10,0 9,0 6 4 - 1 1
K45R 6/6 M6 − 4,0 6,0 10 7,5 10,0 9,0 6 4 - 1 1
K45R 6/8 M8 − 4,0 6,0 10 9,0 13,0 12,0 6 4 - 1 1
K45R 10/5 M5 − 4,5 7,0 10 7,5 10,0 12,0 10 7 FL10 1 1
K45R 10/6 M6 − 4,5 7,0 10 7,5 10,0 12,0 10 7 FL10 1 1
K45R 10/8 M8 − 4,5 7,0 10 9,0 13,0 15,0 10 7 FL10 1 1
K45R 10/10 M10 − 4,5 7,0 10 11,0 15,0 17,0 10 7 FL10 1 1
K45R 10/12 M12 − 4,5 7,0 10 12,0 15,0 19,0 10 7 FL10 1 1
K45R 16/5 M5 √ 5,5 8,5 13 7,0 10,0 12,0 16 8 FL16 1 2
K45R 16/6 M6 √ 5,5 8,5 13 7,5 10,0 12,0 16 8 FL16 1 2
K45R 16/8 M8 √ 5,5 8,5 13 9,0 13,0 15,0 16 8 FL16 1 2
K45R 16/10 M10 √ 5,5 8,5 13 11,0 15,0 17,0 16 8 FL16 1 2
K45R 16/12 M12 √ 5,5 8,5 13 12,0 15,0 19,0 16 8 FL16 1 2
K45R 25/5 M5 √ 7,0 10,0 15 7,0 10,0 14,0 25 10 FL25 1 2
K45R 25/6 M6 √ 7,0 10,0 15 7,5 10,0 14,0 25 10 FL25 1 2
K45R 25/8 M8 √ 7,0 10,0 15 9,0 13,0 16,0 25 10 FL25 1 2
K45R 25/10 M10 √ 7,0 10,0 15 11,0 15,0 18,0 25 10 FL25 1 2
K45R 25/12 M12 √ 7,0 10,0 15 12,0 15,0 19,0 25 10 FL25 1 2
K45R 25/14 M14 √ 7,0 10,0 15 14,0 18,0 21,0 25 10 FL25 1 2
K45R 35/6 M6 √ 8,5 12,0 17 7,5 10,0 18,0 35 12 FL35 1 2
K45R 35/8 M8 √ 8,5 12,0 17 9,0 13,0 18,0 35 12 FL35 1 2
K45R 35/10 M10 √ 8,5 12,0 17 11,0 15,0 18,0 35 12 FL35 1 2
K45R 35/12 M12 √ 8,5 12,0 17 12,0 15,0 20,0 35 12 FL35 1 2
K45R 35/14 M14 √ 8,5 12,0 17 14,0 18,0 21,0 35 12 FL35 1 2
K45R 35/16 M16 √ 8,5 12,0 17 16,0 18,0 26,0 35 12 FL35 1 2
K45R 50/6 M6 √ 10,0 14,0 19 7,5 10,0 20,0 50 14 FL50 1 2
K45R 50/8 M8 √ 10,0 14,0 19 9,0 13,0 20,0 50 14 FL50 1 2
K45R 50/10 M10 √ 10,0 14,0 19 11,0 15,0 20,0 50 14 FL50 1 2
K45R 50/12 M12 √ 10,0 14,0 19 12,0 15,0 23,0 50 14 FL50 1 2
K45R 50/14 M14 √ 10,0 14,0 19 14,0 18,0 23,0 50 14 FL50 1 2
K45R 50/16 M16 √ 10,0 14,0 19 16,0 18,0 28,0 50 14 FL50 1 2
K45R 50/20 M20 √ 10,0 14,0 19 20,0 22,0 30,0 50 14 FL50 1 2
K45R 70/6 M6 √ 12,0 16,5 21 7,5 10,0 23,0 70 16 FL70 1 2
K45R 70/8 M8 √ 12,0 16,5 21 9,0 13,0 23,0 70 16 FL70 1 2
K45R 70/10 M10 √ 12,0 16,5 21 11,0 15,0 23,0 70 16 FL70 1 2
K45R 70/12 M12 √ 12,0 16,5 21 11,0 15,0 23,0 70 16 FL70 1 2
K45R 70/14 M14 √ 12,0 16,5 21 14,0 18,0 28,0 70 16 FL70 1 2
K45R 70/16 M16 √ 12,0 16,5 21 16,0 18,0 28,0 70 16 FL70 1 2
K45R 70/20 M20 √ 12,0 16,5 21 20,0 22,0 30,0 70 16 FL70 1 2
K45R 95/8 M8 √ 13,5 18,0 24 12,0 16,0 26,0 95 17 FL95 1 2
K45R 95/10 M10 √ 13,5 18,0 24 12,0 17,0 26,0 95 17 FL95 1 2
K45R 95/12 M12 √ 13,5 18,0 24 12,0 18,0 26,0 95 17 FL95 1 2
K45R 95/14 M14 √ 13,5 18,0 24 16,0 20,0 26,0 95 17 FL95 1 2
K45R 95/16 M16 √ 13,5 18,0 24 16,0 22,0 29,0 95 17 FL95 1 2
K45R 95/20 M20 √ 13,5 18,0 24 20,0 24,0 35,0 95 17 FL95 1 2
K45R 120/8 M8 √ 15,0 19,5 26 12,0 16,0 28,0 120 19 FL120 1 2
K45R 120/10 M10 √ 15,0 19,5 26 12,0 17,0 29,0 120 19 FL120 1 2
K45R 120/12 M12 √ 15,0 19,5 26 12,0 18,0 29,0 120 19 FL120 1 2
K45R 120/14 M14 √ 15,0 19,5 26 16,0 20,0 29,0 120 19 FL120 1 2
K45R 120/16 M16 √ 15,0 19,5 26 16,0 22,0 29,0 120 19 FL120 1 2
K45R 120/20 M20 √ 15,0 19,5 26 20,0 24,0 35,0 120 19 FL120 1 2
K45R 150/8 M8 √ 16,5 21,0 30 12,0 16,0 31,0 150 20 FL150 1 2
K45R 150/10 M10 √ 16,5 21,0 30 12,0 17,0 31,0 150 20 FL150 1 2
K45R 150/12 M12 √ 16,5 21,0 30 12,0 18,0 31,0 150 20 FL150 1 2
K45R 150/14 M14 √ 16,5 21,0 30 16,0 20,0 31,0 150 20 FL150 1 2
K45R 150/16 M16 √ 16,5 21,0 30 16,0 22,0 31,0 150 20 FL150 1 2
K45R 150/20 M20 √ 16,5 21,0 30 20,0 24,0 36,0 150 20 FL150 1 2
K45R 185/10 M10 √ 19,0 24,0 30 14,0 22,0 35,0 185 23 FL185 2 4
K45R 185/12 M12 √ 19,0 24,0 30 14,0 22,0 35,0 185 23 FL185 2 4
K45R 185/14 M14 √ 19,0 24,0 30 16,0 22,0 35,0 185 23 FL185 2 4
K45R 185/16 M16 √ 19,0 24,0 30 16,0 22,0 35,0 185 23 FL185 2 4
K45R 185/20 M20 √ 19,0 24,0 30 20,0 24,0 38,0 185 23 FL185 2 4
K45R 240/10 M10 √ 21,0 26,0 38 14,0 22,0 38,0 240 25 FL240 2 4
K45R 240/12 M12 √ 21,0 26,0 38 14,0 22,0 38,0 240 25 FL240 2 4
K45R 240/14 M14 √ 21,0 26,0 38 16,0 22,0 38,0 240 25 FL240 2 4
K45R 240/16 M16 √ 21,0 26,0 38 16,0 22,0 38,0 240 25 FL240 2 4
K45R 240/20 M20 √ 21,0 26,0 38 20,0 24,0 38,0 240 25 FL240 2 4
K45R 300/12 M12 − 24,0 30,0 45 14,0 24,0 43,0 300 28 FL300 2 6
K45R 300/16 M16 − 24,0 30,0 45 16,0 24,0 43,0 300 28 FL300 2 6
K45R 300/20 M20 − 24,0 30,0 45 20,0 24,0 43,0 300 28 FL300 2 6

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Koncowki_katowe_rurowe_typu_K45R_EN.pdf EN 04-07-2025 568.14 KB PDF Download
Catalog card ERGOM_Koncowki_katowe_rurowe_typu_K45R_PL.pdf PL 04-07-2025 565.99 KB PDF Download
Contact us
