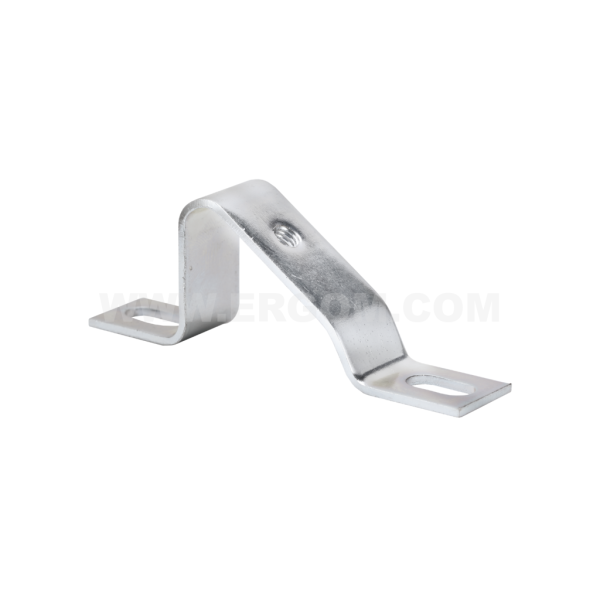

TSE rail holder, UM-02, UM-03 type

TSE rail holder, UM-02, UM-03 type

Main data of the product series

Product name
TSE rail holder, UM-02, UM-03 type
Category
Rail holders, UM type

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
UM-02 R34RR-05030100203 12 12 pcs. Price on request
UM-03/32 R34RR-05030100303 12 12 pcs. Price on request
UM-03/58 R34RR-05030100313 12 12 pcs. Price on request
UM-03/68 R34RR-05030100323 12 12 pcs. Price on request
UM-03/78 R34RR-05030100333 12 12 pcs. Price on request
UM-03/88 R34RR-05030100343 12 12 pcs. Price on request
UM-03/98 R34RR-05030100353 12 12 pcs. Price on request

Selected lines: 0

Technical data

General data

Material galvanized steel
Description uchwyt montażowy skośny
B 7
G 2
Name Screw L L1 L2 A H S
UM-02 M6 (brak w zestawie) 82 62 42 10 49 20
UM-03/32 M6 (w zestawie) 90 70 46 14 32 19
UM-03/58 M6 (brak w zestawie) 82 62 42 10 58 20
UM-03/68 M6 (brak w zestawie) 82 62 42 10 68 20
UM-03/78 M6 (brak w zestawie) 82 62 42 10 78 20
UM-03/88 M6 (brak w zestawie) 82 62 42 10 88 20
UM-03/98 M6 (brak w zestawie) 82 62 42 10 98 20

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Uchwyt_szyn_TSE_typ_UM-02_UM-03_EN.pdf EN 15-05-2025 189.61 KB PDF Download
Catalog card ERGOM_Uchwyt_szyn_TSE_typ_UM-02_UM-03_PL.pdf PL 15-05-2025 212.99 KB PDF Download
