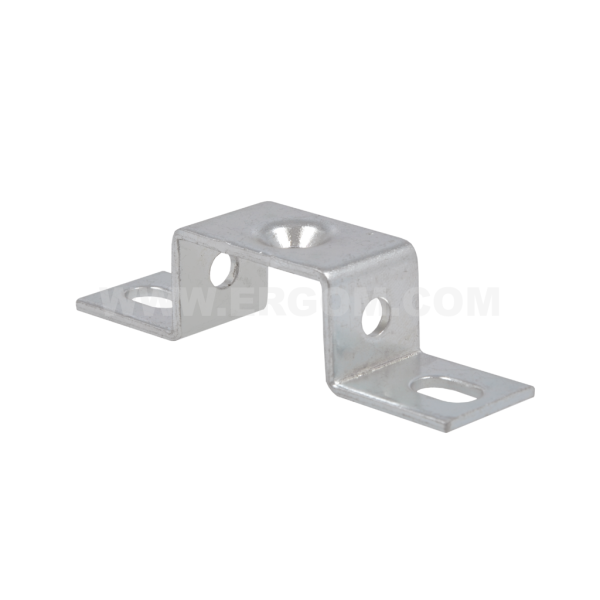

TSE rail holder, UM-01 type

TSE rail holder, UM-01 type

Main data of the product series

Product name
TSE rail holder, UM-01 type
Category
Rail holders, UM type

Features and benefits

Product description

-

Offer

Name Ergom index / your designation Min. order quantity [uom] Qty in package Unit of measure [uom] Catalogue price net per uom Quantity [uom]
UM-01/20 R34RR-05030100103 12 12 pcs. Price on request
UM-01/25 R34RR-05030100113 12 12 pcs. Price on request
UM-01/30 R34RR-05030100123 12 12 pcs. Price on request
UM-01/40 R34RR-05030100133 12 12 pcs. Price on request
UM-01/50 R34RR-05030100143 12 12 pcs. Price on request
UM-01/70 R34RR-05030100153 12 12 pcs. Price on request
UM-01/90 R34RR-05030100163 12 12 pcs. Price on request

Selected lines: 0

Technical data

General data

Screw M6 (not included)
Material galvanized steel
L 82
L1 70
L2 56
A 12
B 7
S 20
W 35
Name Description H
UM-01/20 inclined mounting bracket 20
UM-01/25 inclined mounting bracket 25
UM-01/30 inclined mounting bracket 30
UM-01/40 inclined mounting bracket 40
UM-01/50 inclined mounting bracket 50
UM-01/70 inclined mounting bracket 70
UM-01/90 inclined mounting bracket 90

Guide

No data

Knowledge

No data

Downloads

Type Name Language Updated at Size File type
Catalog card ERGOM_Uchwyt_szyn_TSE_typ_UM-01_EN.pdf EN 15-05-2025 163.42 KB PDF Download
Catalog card ERGOM_Uchwyt_szyn_TSE_typ_UM-01_PL.pdf PL 15-05-2025 209.27 KB PDF Download
